Air Conditioning Compressor Hose Replacement (LUV)

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

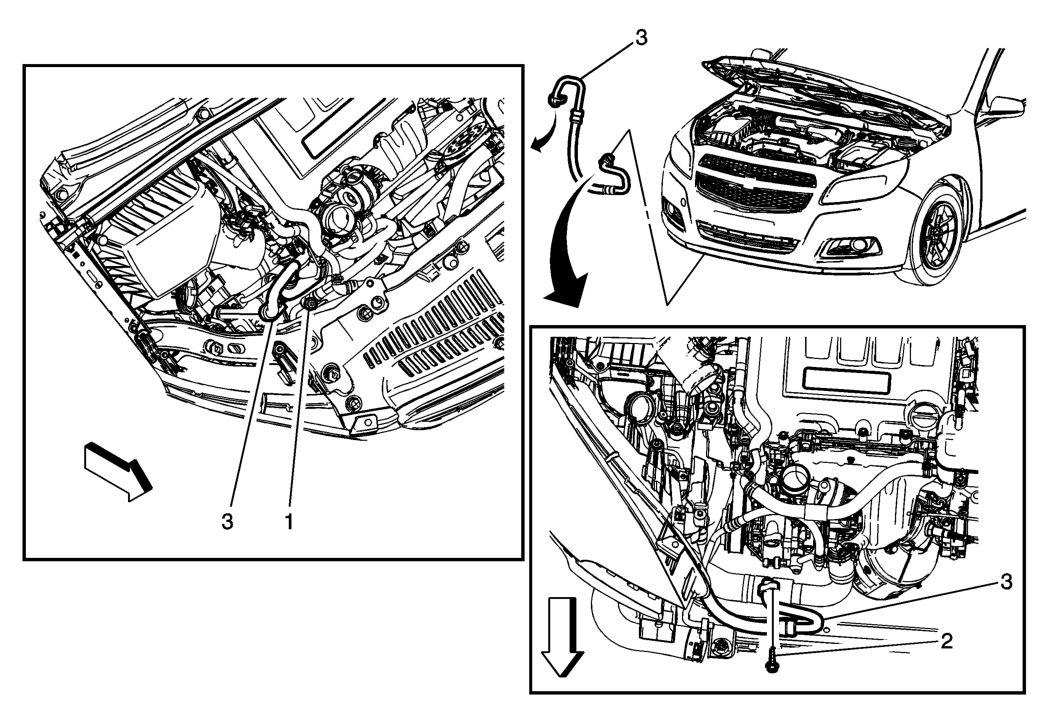

Fig 1: Air Conditioning Compressor Hose (LUV)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Recover the air conditioning system refrigerant. Refer to Refrigerant Recovery and Recharging (R-134a) . Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement . Remove the front compartment front center insulator. Refer to Front Compartment Front Center Insulator Replacement . Remove the front bumper fascia opening lower cover. Refer to Front Bumper Fascia Opening Lower Cover Replacement (Trax) .
1	Air Conditioning Compressor Hose Nut CAUTION: Refer to Fastener Caution . Tighten 22 N.m (16 lb ft)
2	Air Conditioning Compressor Hose Bolt CAUTION: Refer to Fastener Caution . Tighten 22 N.m (16 lb ft)
3	Air Conditioning Compressor Hose Procedure Remove and discard the old sealing washers and replace with NEW sealing washers. Refer to Air Conditioning System Seal Replacement .
