Air Cleaner Assembly Replacement

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

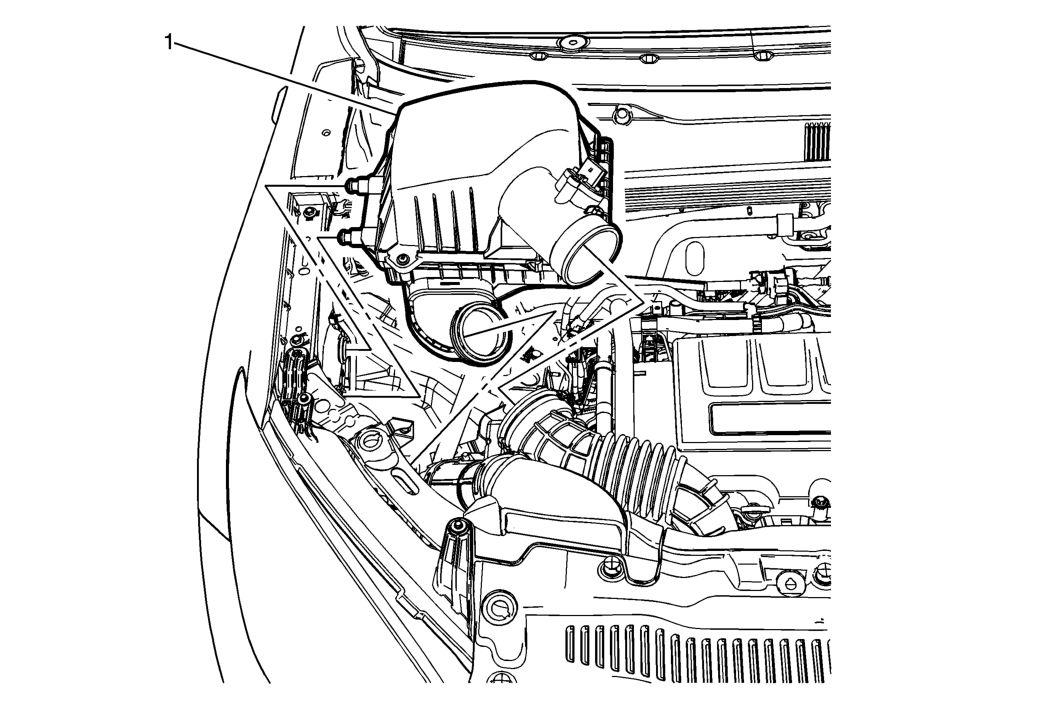

Fig 1: Air Cleaner Assembly

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Disconnect the mass airflow sensor electrical connector. Remove the air cleaner inlet duct. Refer to Air Cleaner Inlet Duct Replacement . Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement .
1	Air Cleaner Assembly Procedure Remove the air cleaner assembly by pulling upward to release the assembly from the lower rubber grommets and then pulling outward from the fender.

Callout

Component Name

Preliminary Procedures

Disconnect the mass airflow sensor electrical connector.
Remove the air cleaner inlet duct. Refer to Air Cleaner Inlet Duct Replacement .
Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement .

Air Cleaner Assembly
Procedure
Remove the air cleaner assembly by pulling upward to release the assembly from the lower rubber grommets and then pulling outward from the fender.
