Installation Procedure

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

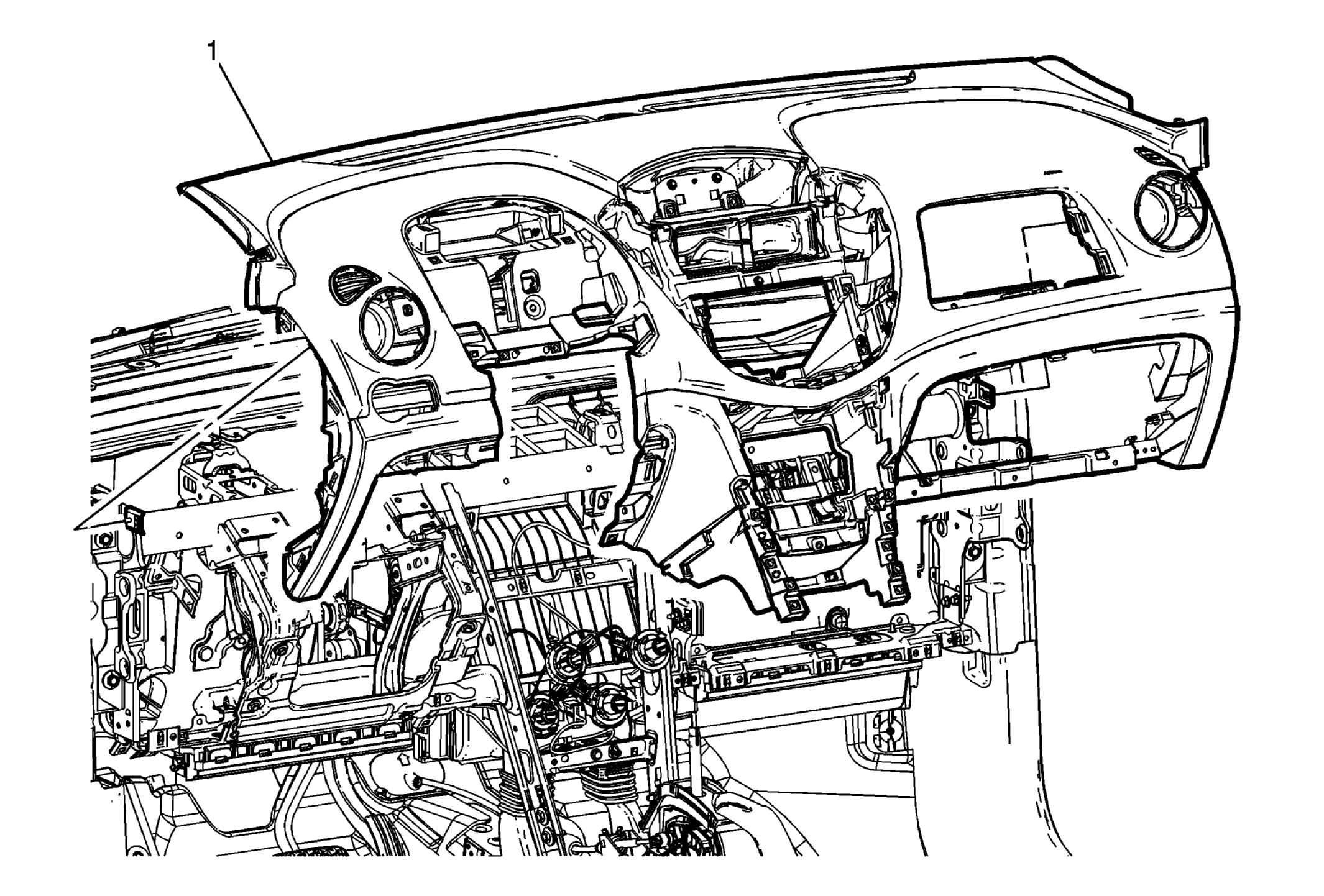

    Fig 1: Instrument Panel And Electrical Harness Assembly
    GM2859135Courtesy of GENERAL MOTORS COMPANY
  1. With the aid of an assistant, load the instrument panel (1) to the instrument panel tie bar to the locator pins.
  2. Reposition the instrument panel wiring harness into the vehicle position as was noted in the removal and connect the fasteners securing the instrument panel wiring harness to the instrument carrier.

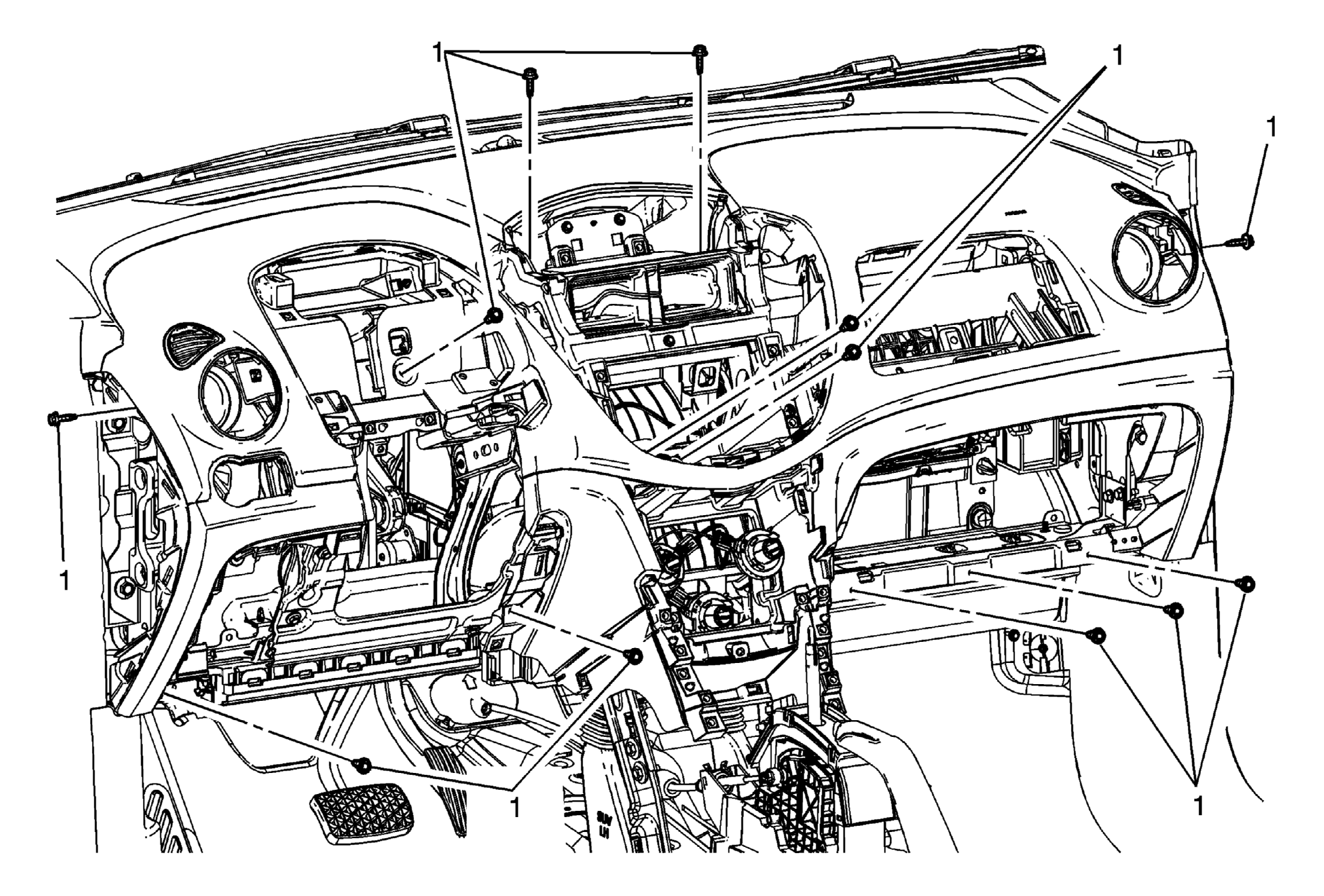

    3. Fig 2: Instrument Panel Bolts
    GM2859131Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  3. Install the instrument panel bolts (1).

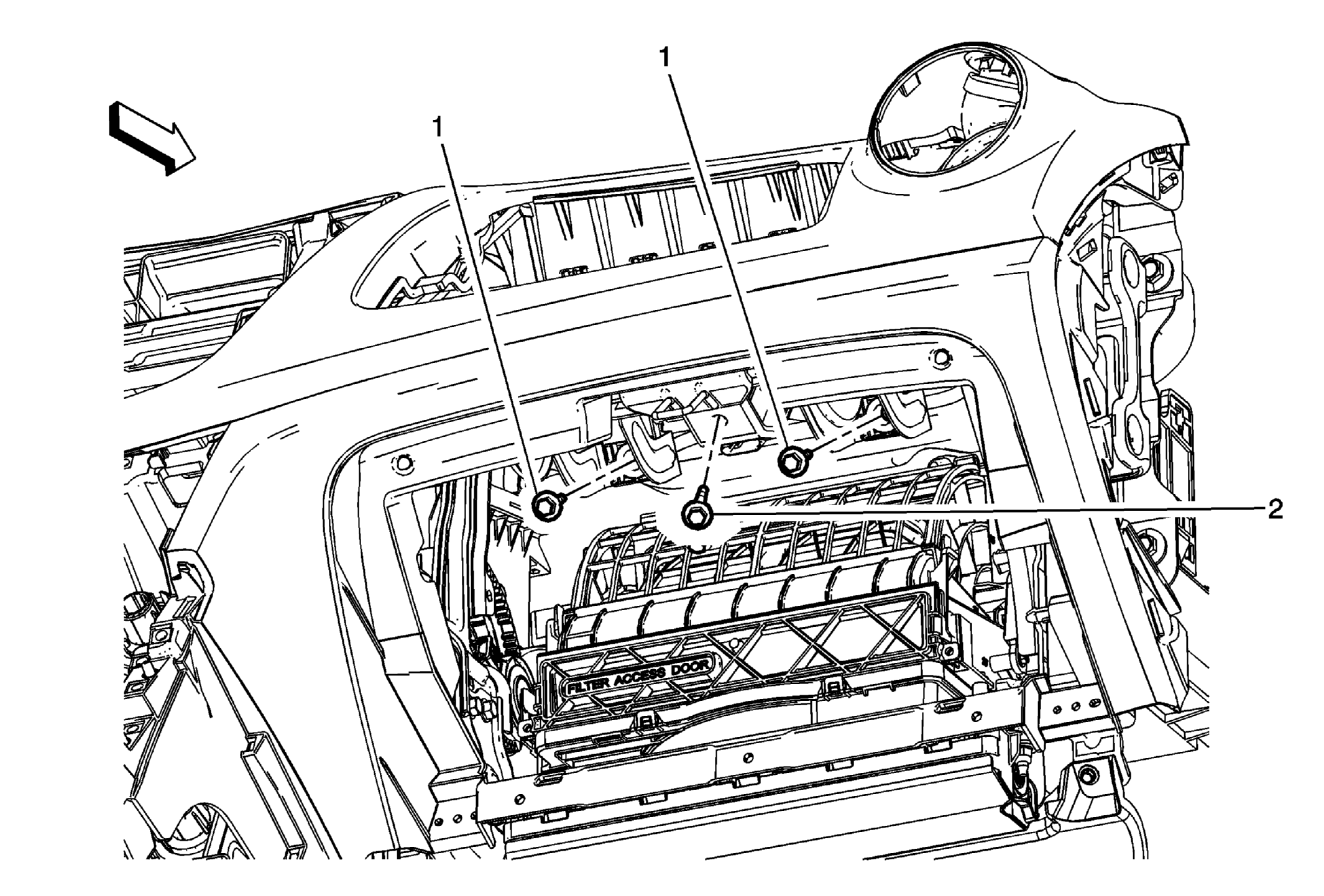

    4. Fig 3: Instrument Panel Inflatable Restraint Module Bracket And Bolts
    GM2859133Courtesy of GENERAL MOTORS COMPANY
  4. Install the instrument panel inflatable restraint module bracket bolts (1) and tighten to 9 N.m (80 lb in).
  5. Install the instrument panel compartment door latch striker bolt (2) and tighten to 9 N.m (80 lb in).
    6. Fig 4: Sun Load Temperature Sensor Bezel
    GM2857046Courtesy of GENERAL MOTORS COMPANY
  6. Install the sun load temperature sensor bezel (1). Refer to Sun Load Temperature Sensor Bezel Replacement (Trax) .
    7. Fig 5: Headlamp Switch
    GM2870823Courtesy of GENERAL MOTORS COMPANY
  7. Install the headlamp switch (1). Refer to Headlamp Switch Replacement (Trax) .

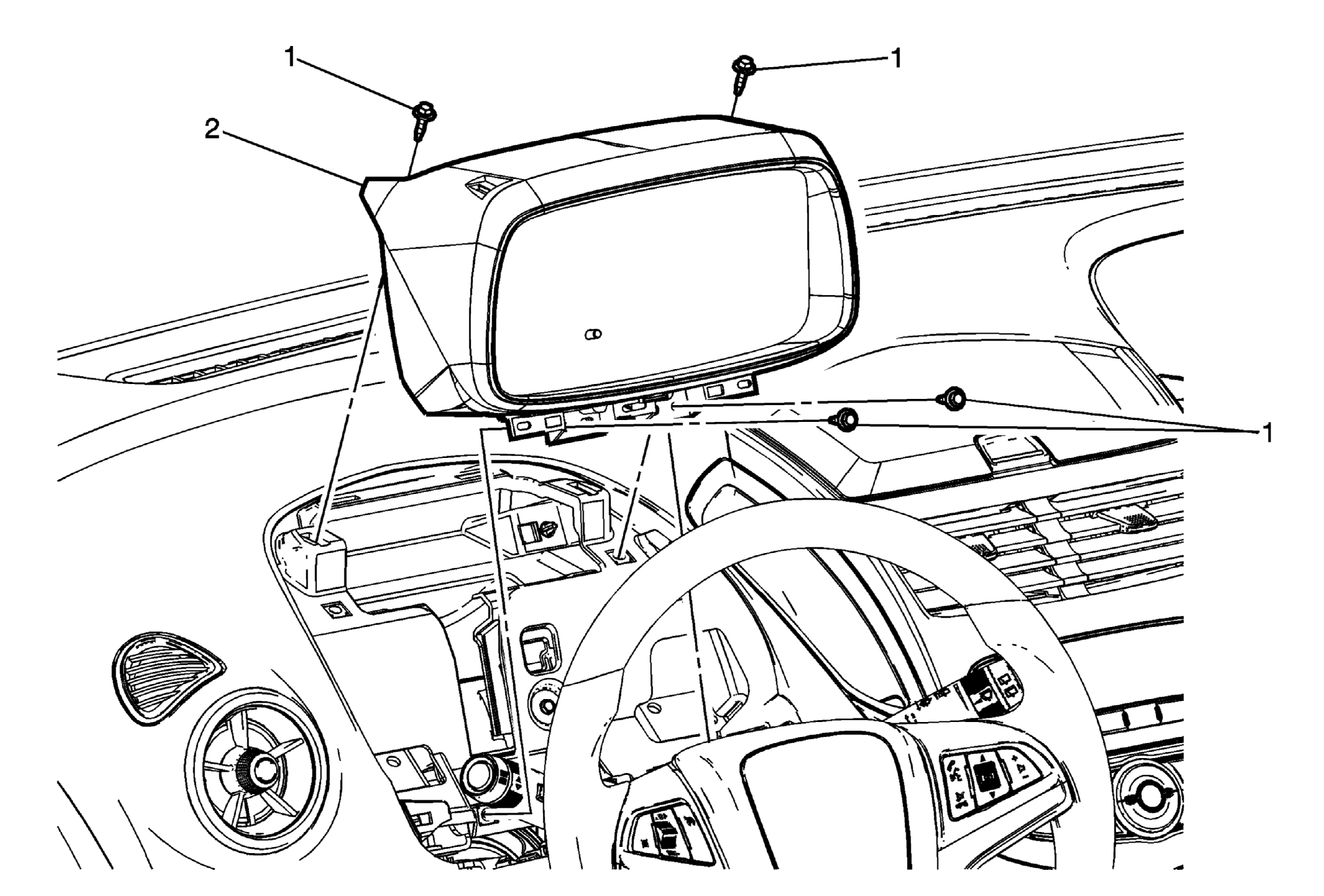

    8. Fig 6: Instrument Cluster
    GM2856864Courtesy of GENERAL MOTORS COMPANY
  8. Install the instrument cluster (2). Refer to Instrument Cluster Replacement (Trax) .

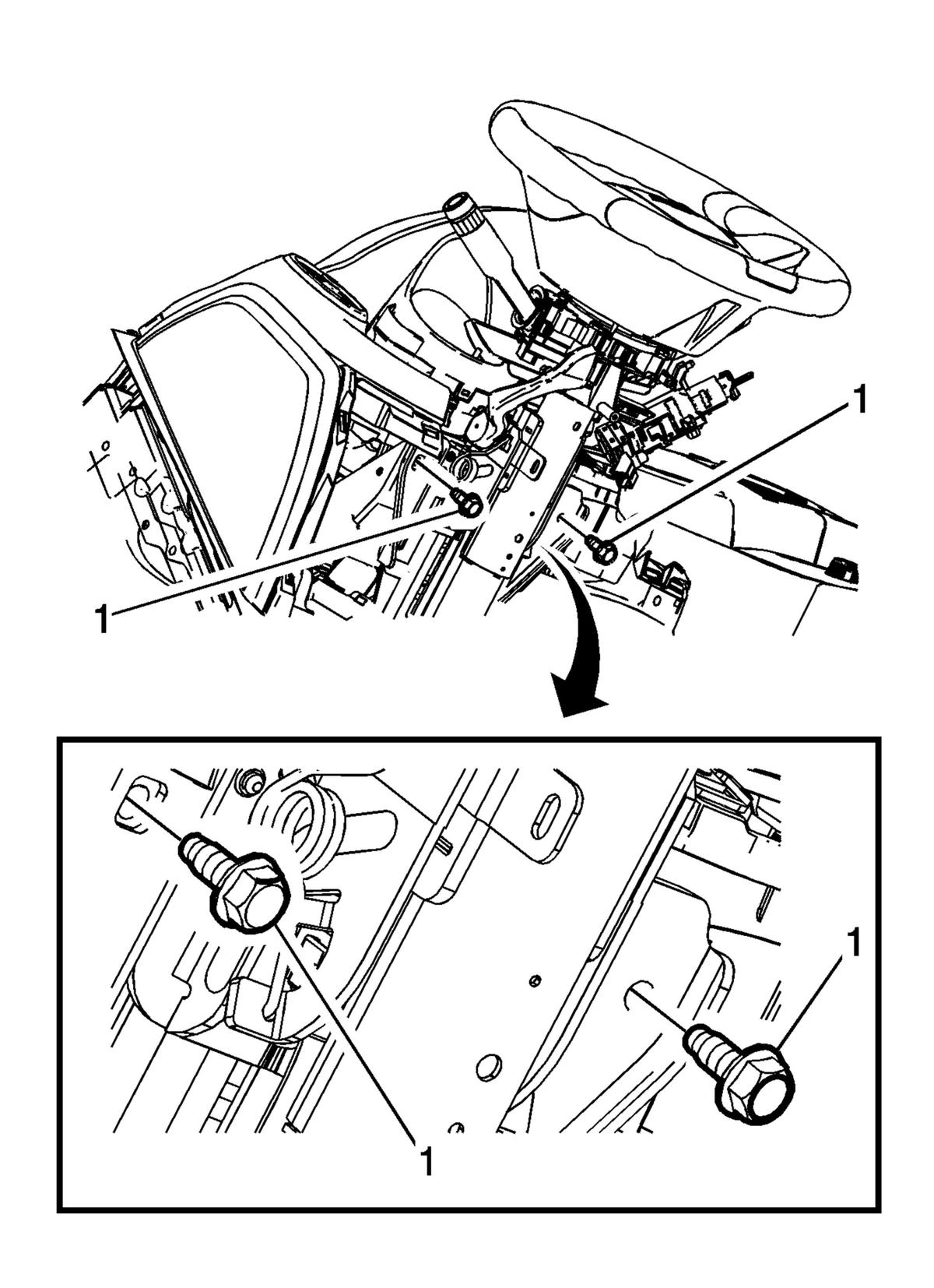

    9. Fig 7: Steering Column Upper Support Bracket
    GM2810787Courtesy of GENERAL MOTORS COMPANY
  9. Install the steering column. Refer to Steering Column Replacement (Mexico, N40)Steering Column Replacement (Canada, NJ1)Steering Column Replacement (United States, NJ1) .

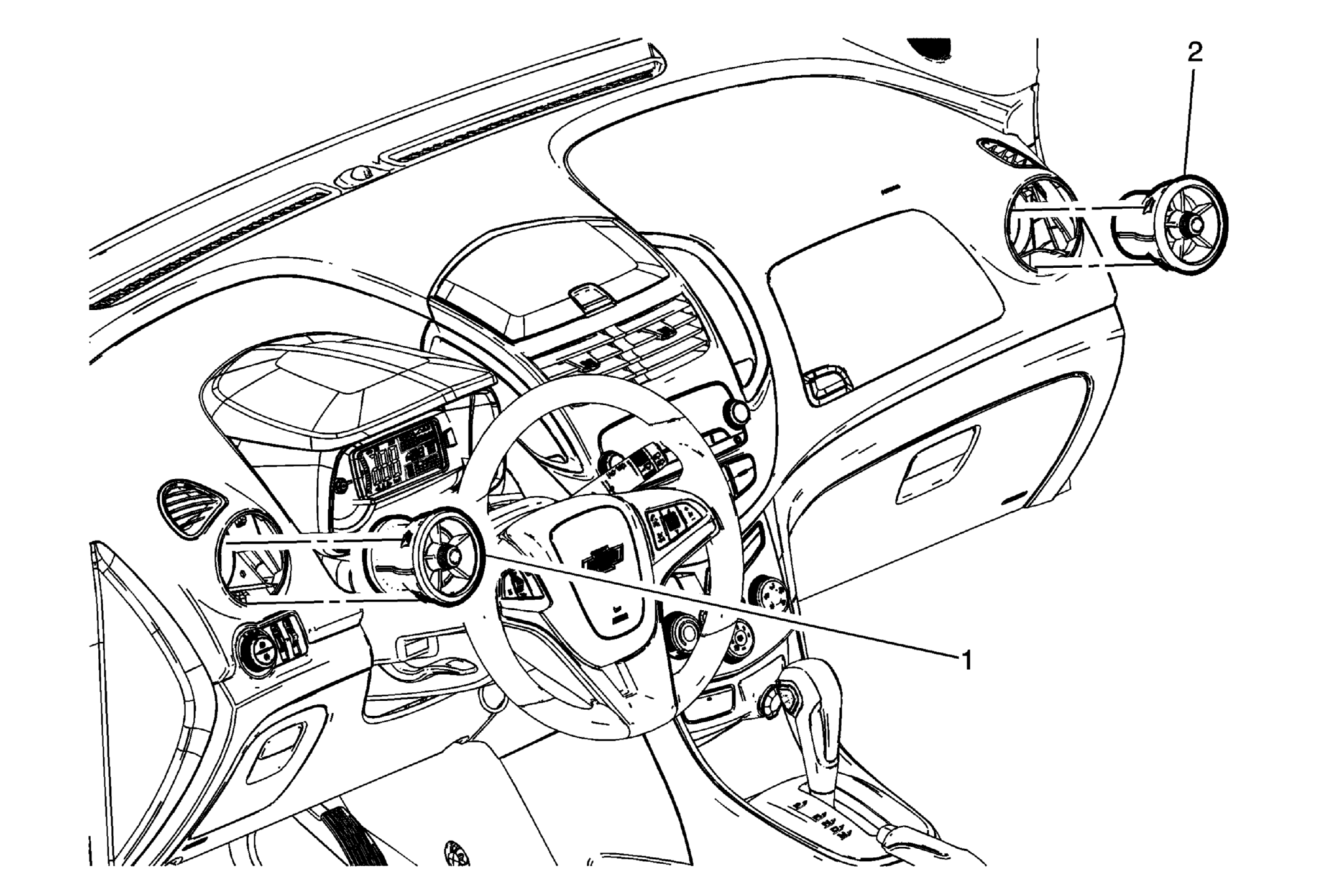

    10. Fig 8: Instrument Panel Outer Air Outlet
    GM2856698Courtesy of GENERAL MOTORS COMPANY
  10. Install the instrument panel outer air outlets left side (1) and right side (2). Refer to Instrument Panel Outer Air Outlet Replacement (Trax) .
    11. Fig 9: Instrument Panel Compartment
    GM2788249Courtesy of GENERAL MOTORS COMPANY
  11. Install the instrument panel compartment (2). Refer to Instrument Panel Compartment Replacement .

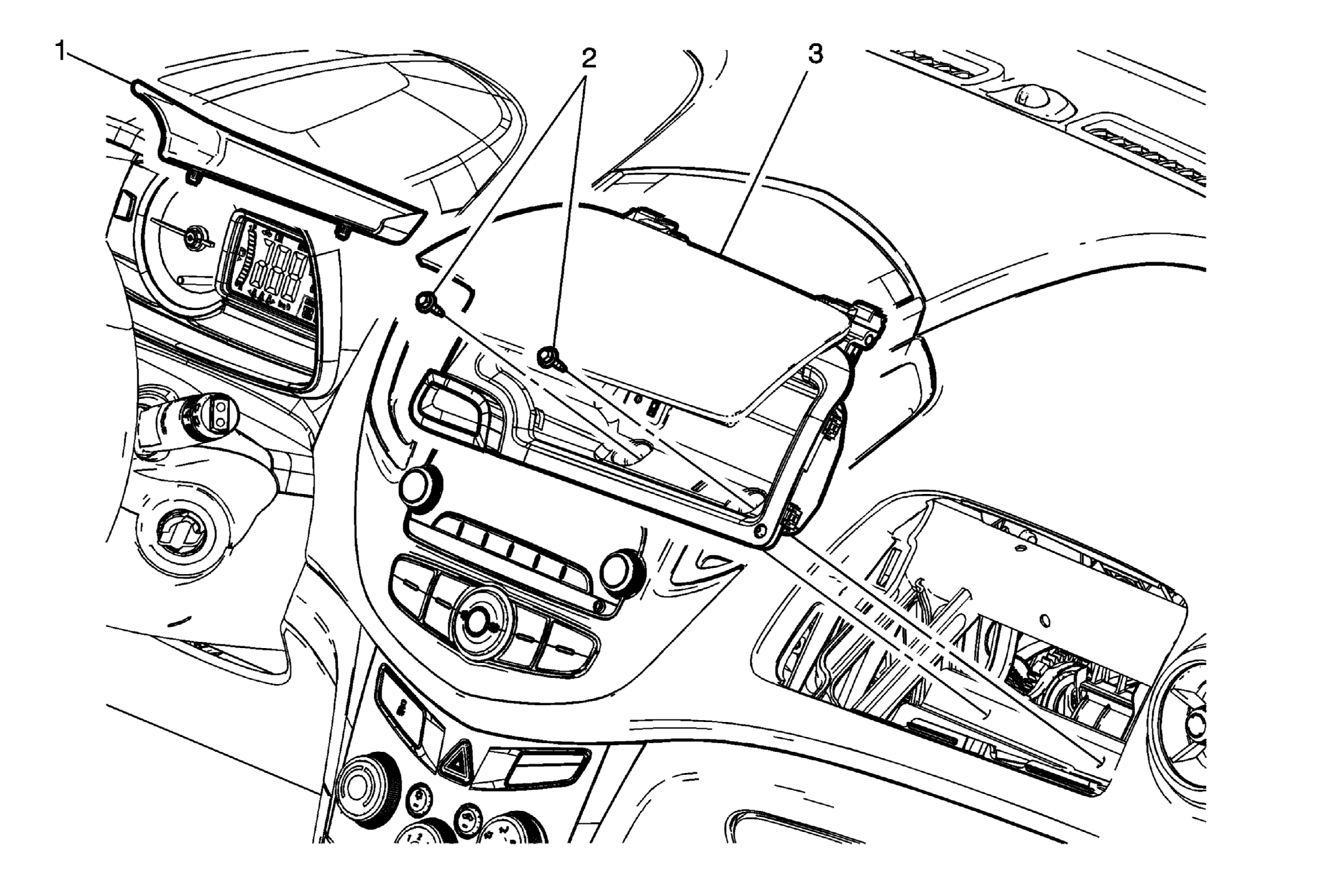

    12. Fig 10: Instrument Panel Upper Compartment
    GM2850934Courtesy of GENERAL MOTORS COMPANY
  12. Install the instrument panel upper compartment (3). Refer to Instrument Panel Upper Compartment Replacement (Trax) .

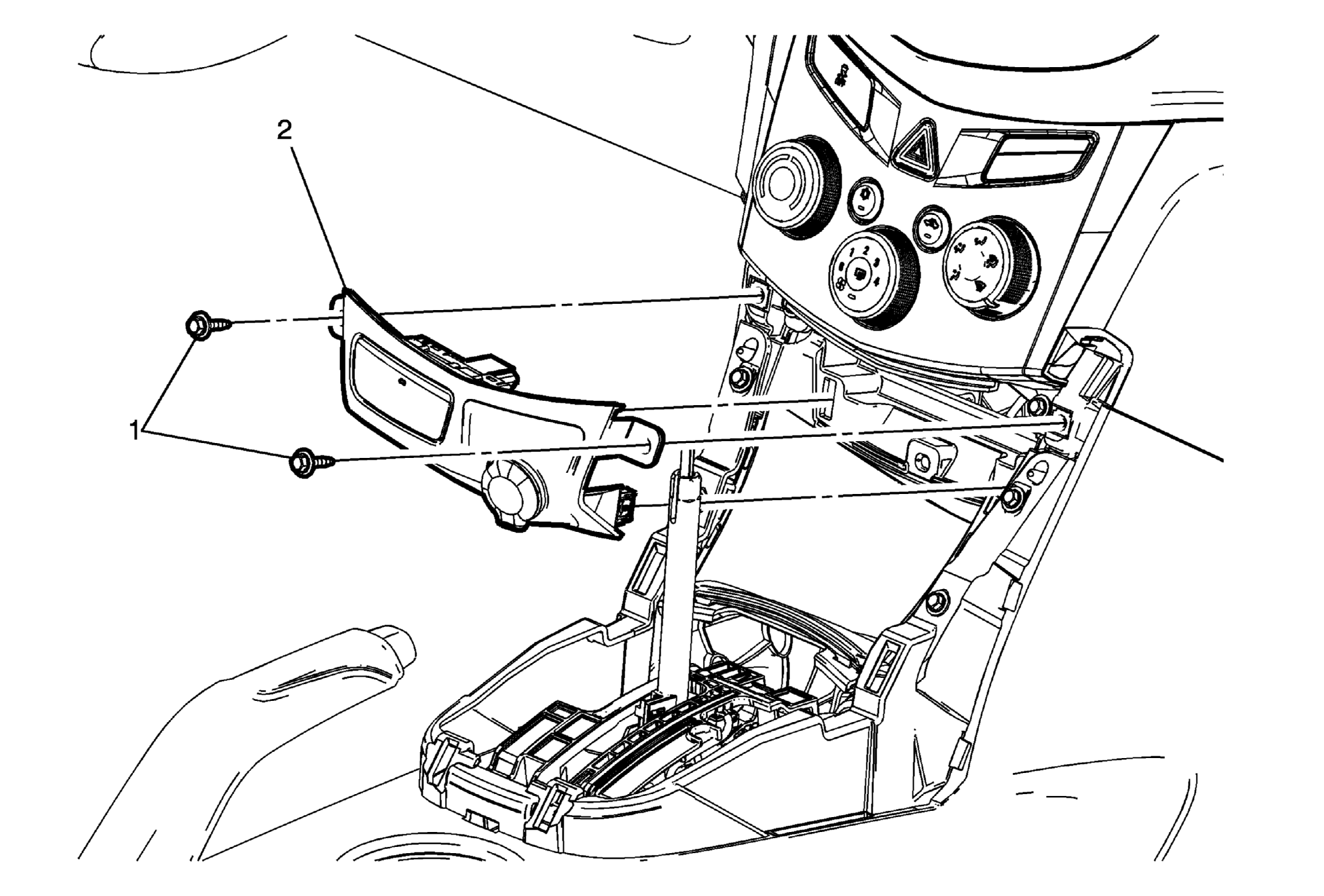

    13. Fig 11: Instrument Panel Lower Center Trim Plate Applique
    GM2847405Courtesy of GENERAL MOTORS COMPANY
  13. Install the instrument panel lower center trim plate applique (2). Refer to Instrument Panel Lower Center Trim Plate Applique Replacement (Trax) .
    14. Fig 12: Radio
    GM2870828Courtesy of GENERAL MOTORS COMPANY
  14. Install the radio (2). Refer to Radio Replacement (Trax) .

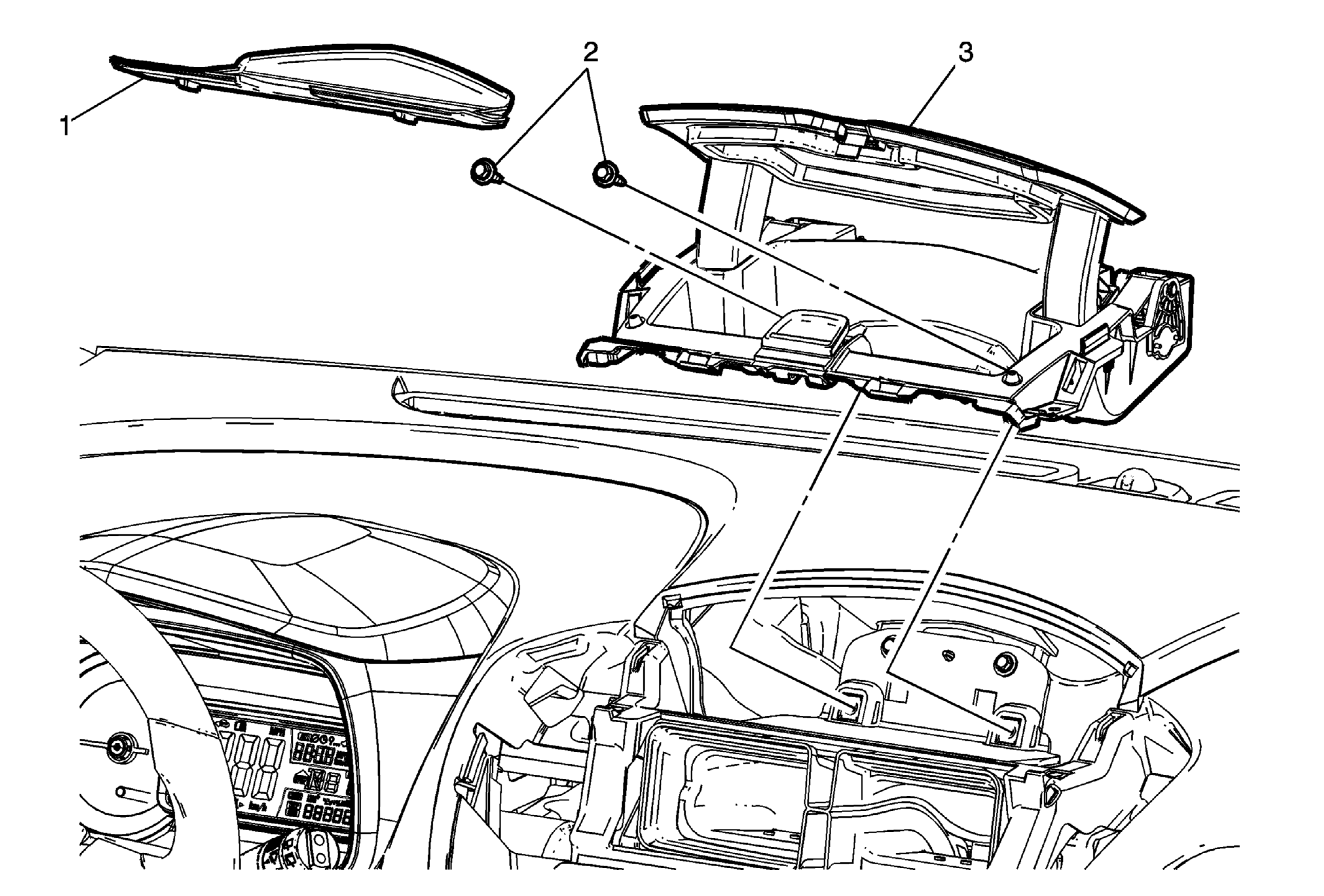

    15. Fig 13: Instrument Panel Upper Center Compartment
    GM2850219Courtesy of GENERAL MOTORS COMPANY
  15. Install the instrument panel upper center compartment (3). Refer to Instrument Panel Upper Center Compartment Replacement .

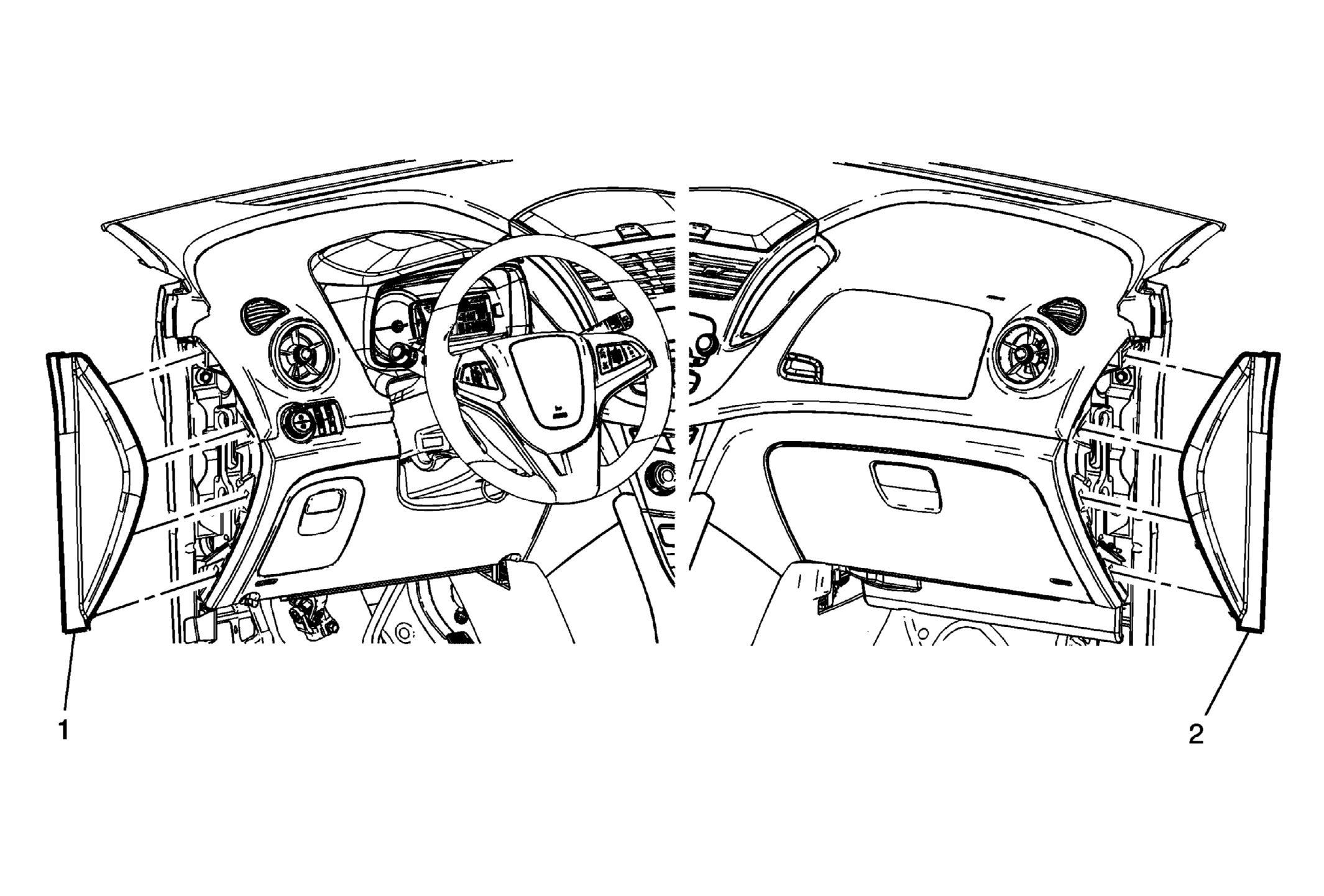

    16. Fig 14: Instrument Panel Outer Trim Covers
    GM2850743Courtesy of GENERAL MOTORS COMPANY
  16. Install the instrument panel outer trim covers left side (1) and right side (2). Refer to Instrument Panel Outer Trim Cover Replacement (Trax) .

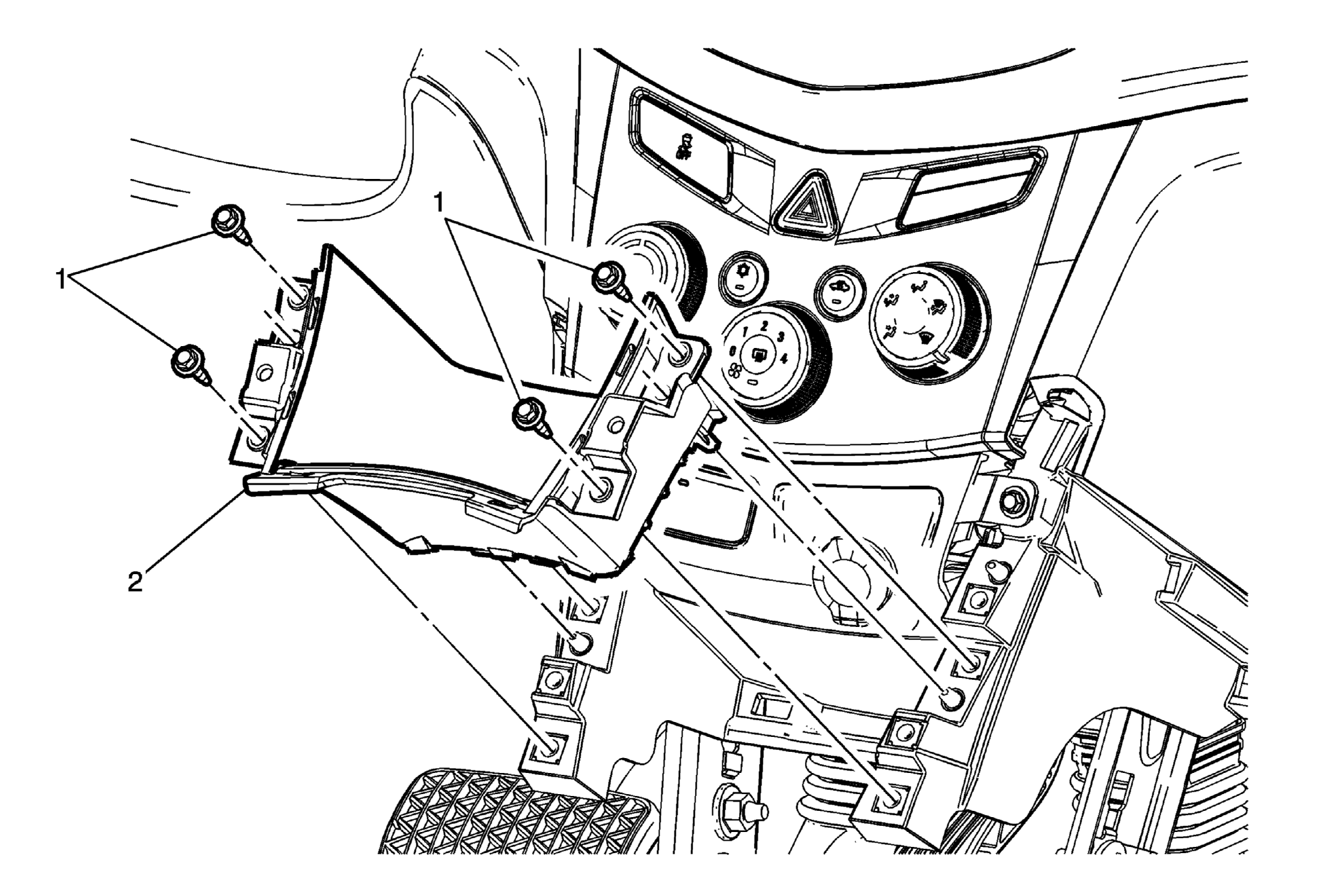

    17. Fig 15: Front Floor Console Stowage Tray
    GM2853825Courtesy of GENERAL MOTORS COMPANY
  17. Install the front floor console stowage tray (2). Refer to Front Floor Console Stowage Tray Replacement (Trax) .

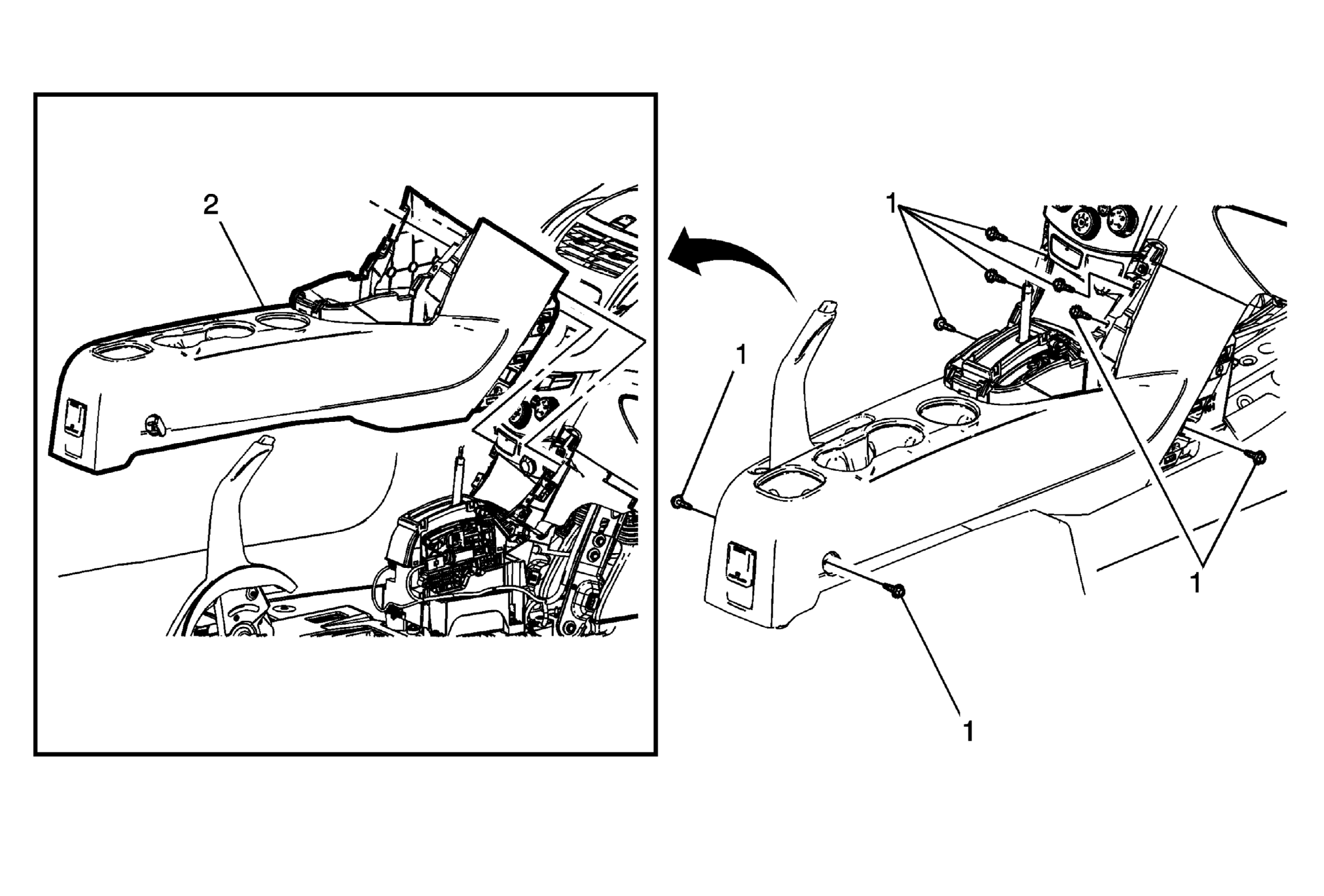

    18. Fig 16: Front Floor Console
    GM2854022Courtesy of GENERAL MOTORS COMPANY
  18. Install the front floor console (2). Refer to Front Floor Console Replacement (Trax) .

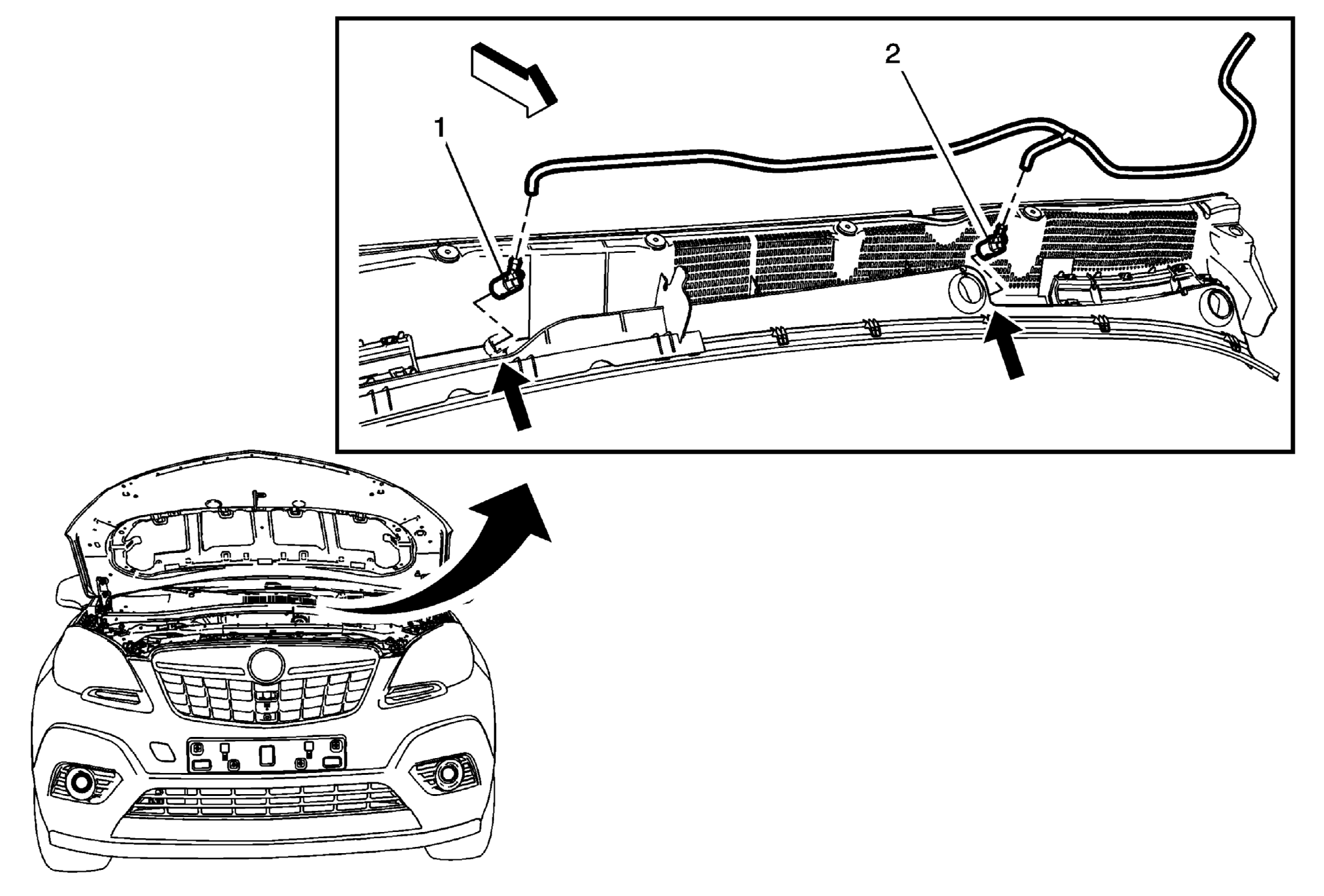

    19. Fig 17: Windshield Garnish Molding
    GM2787207Courtesy of GENERAL MOTORS COMPANY
  19. Install both of the windshield garnish moldings (1). Refer to Windshield Garnish Molding Replacement (Trax) .
  20. Enable the SIR system. Refer to SIR Disabling and Enabling .
