Headlamp Switch Replacement (Trax)

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

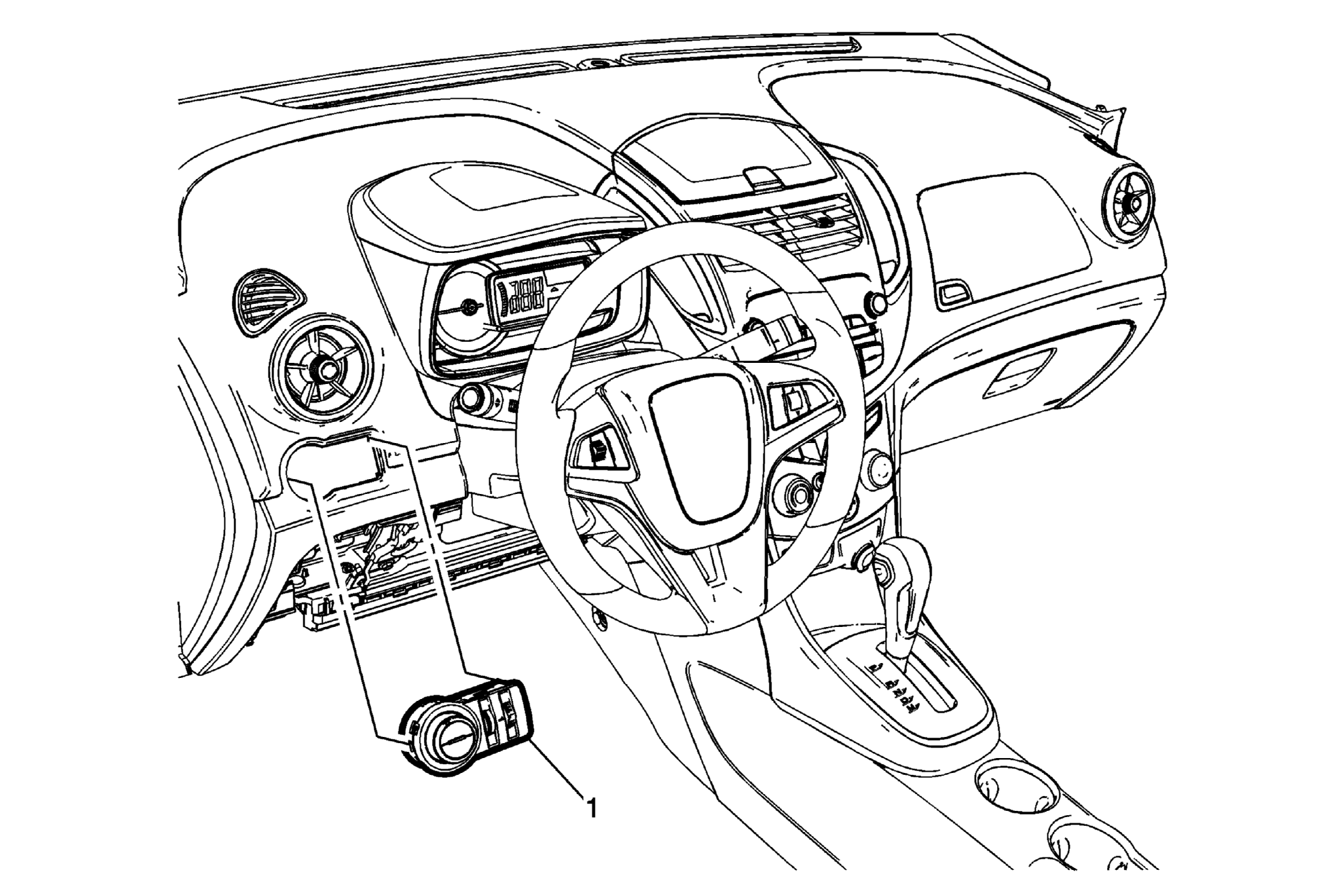

Fig 1: Headlamp Switch (Trax)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the instrument panel knee bolster. Refer to Instrument Panel Knee Bolster Replacement (Trax) .
1	Headlamp Switch Procedure Reach behind the switch and depress the tabs on the back of the switch to remove. Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedure
Remove the instrument panel knee bolster. Refer to Instrument Panel Knee Bolster Replacement (Trax) .

Headlamp Switch

Procedure

Reach behind the switch and depress the tabs on the back of the switch to remove.
Disconnect the electrical connector.
