Driver or Passenger Seat Cushion Frame Replacement

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

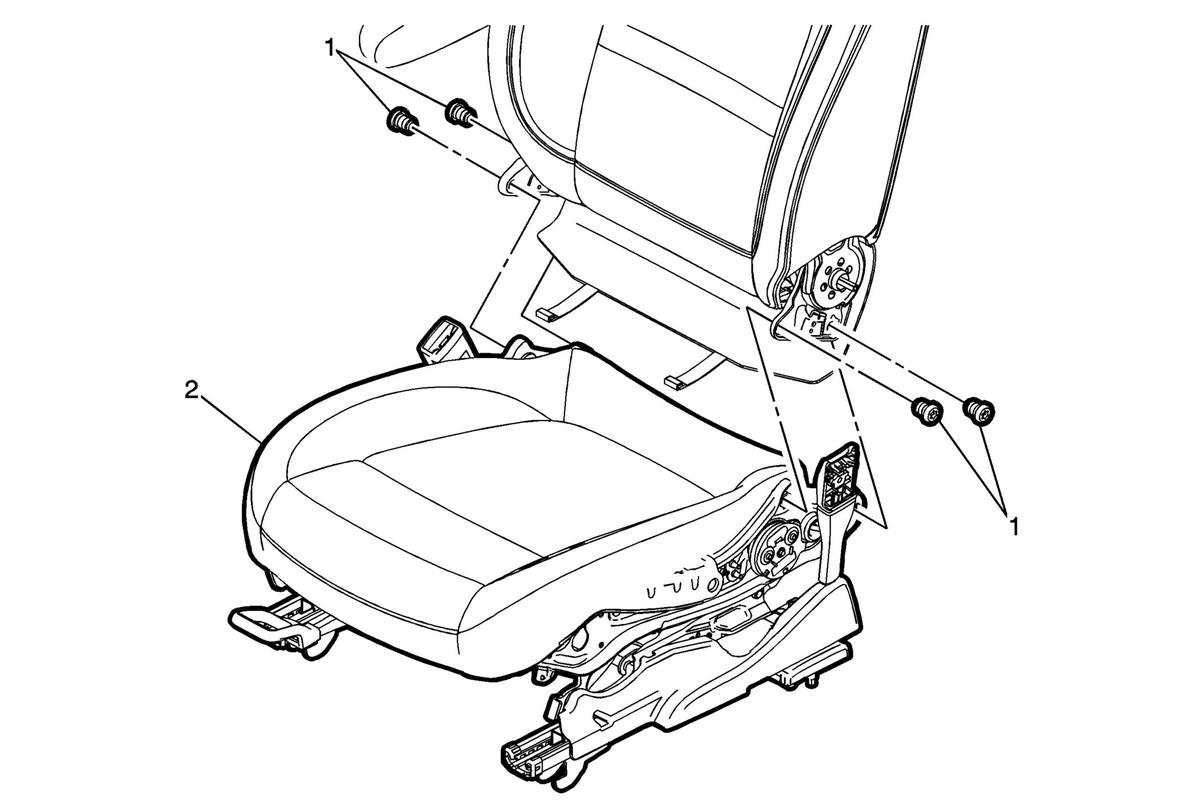

Fig 1: Driver Or Passenger Seat Cushion Frame

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the driver or passenger seat. Refer to Driver or Passenger Seat Removal and Installation Remove the driver or passenger seat cushion outer finish panel. Refer to Driver or Passenger Seat Cushion Outer Finish Panel Replacement (Manual) Driver or Passenger Seat Cushion Outer Finish Panel Replacement (Power) Remove the driver or passenger seat inner recliner finish cover. Refer to Driver or Passenger Seat Inner Recliner Finish Cover Replacement (Driver) Driver or Passenger Seat Inner Recliner Finish Cover Replacement (Passenger) Driver or Passenger Seat Inner Recliner Finish Cover Replacement (Passenger Outboard with AG5) Driver or Passenger Seat Inner Recliner Finish Cover Replacement (Passenger Inboard with AG5)
1	Driver or Passenger Seat Cushion Frame Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 22 N.m (16 lb ft)
2	Driver or Passenger Seat Cushion Frame Procedure Disconnect electrical connectors as needed. If replacing with a new front seat cushion frame, transfer components as necessary.

Callout

Component Name

Preliminary Procedures

Remove the driver or passenger seat. Refer to Driver or Passenger Seat Removal and Installation
Remove the driver or passenger seat cushion outer finish panel. Refer to Driver or Passenger Seat Cushion Outer Finish Panel Replacement (Manual) Driver or Passenger Seat Cushion Outer Finish Panel Replacement (Power)
Remove the driver or passenger seat inner recliner finish cover. Refer to Driver or Passenger Seat Inner Recliner Finish Cover Replacement (Driver) Driver or Passenger Seat Inner Recliner Finish Cover Replacement (Passenger) Driver or Passenger Seat Inner Recliner Finish Cover Replacement (Passenger Outboard with AG5) Driver or Passenger Seat Inner Recliner Finish Cover Replacement (Passenger Inboard with AG5)

Driver or Passenger Seat Cushion Frame Bolt (Qty: 4)

CAUTION:

Refer to Fastener Caution .

Tighten
22 N.m (16 lb ft)

Driver or Passenger Seat Cushion Frame

Procedure

Disconnect electrical connectors as needed.
If replacing with a new front seat cushion frame, transfer components as necessary.
