Driver or Passenger Seat Inner Recliner Finish Cover Replacement (Passenger)

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

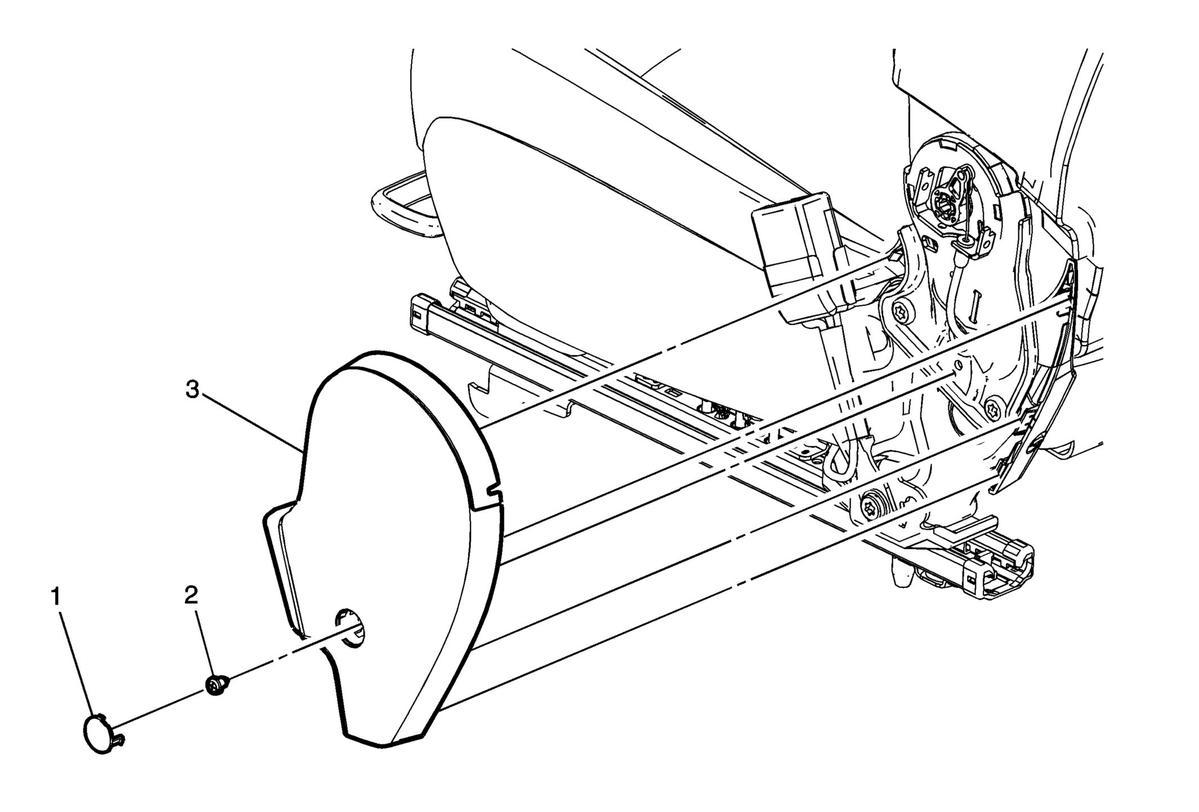

Fig 1: Passenger Seat Inner Recliner Finish Cover (Passenger)
GM2873547Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Driver or Passenger Seat Inner Recliner Finish Cover Cap
Procedure
Use a flat-bladed tool to release the cap from the recliner cover.
2 Driver or Passenger Seat Inner Recliner Finish Cover Fastener
CAUTION:

Refer to Fastener Caution .


Tighten
8 N.m (71 lb in)
3 Driver or Passenger Seat Inner Recliner Finish Cover
