Installation Procedure

  1. Use care and install the radiator (1).

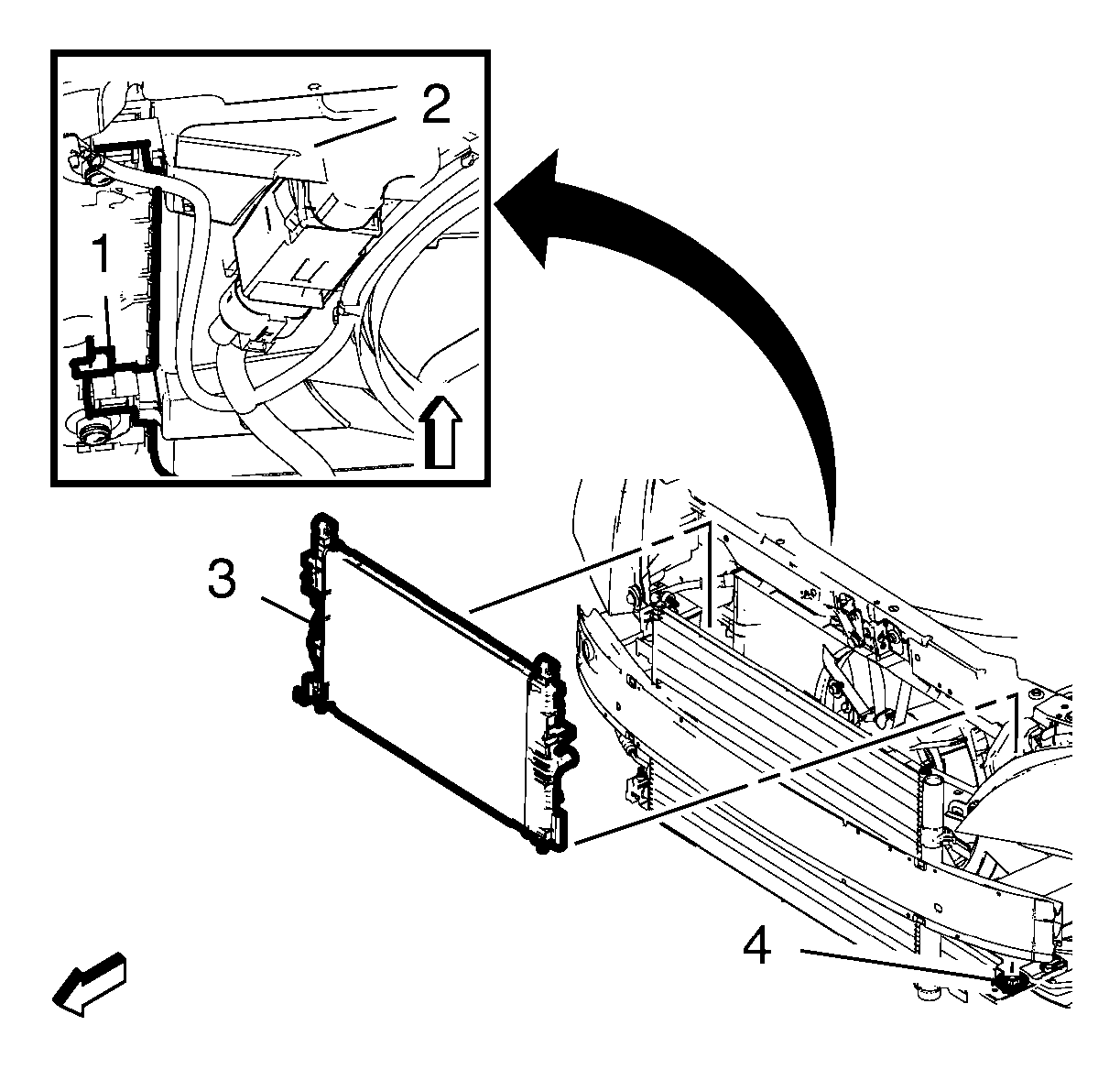

    Fig 1: Radiator And Lower Bracket
    GM2547246Courtesy of GENERAL MOTORS COMPANY
  2. Use care and rotate the radiator in order to get more access for the installation.
  3. Install the radiator (1) to the 2 lower brackets (2).
  4. Install the 2 radiator upper brackets (2).

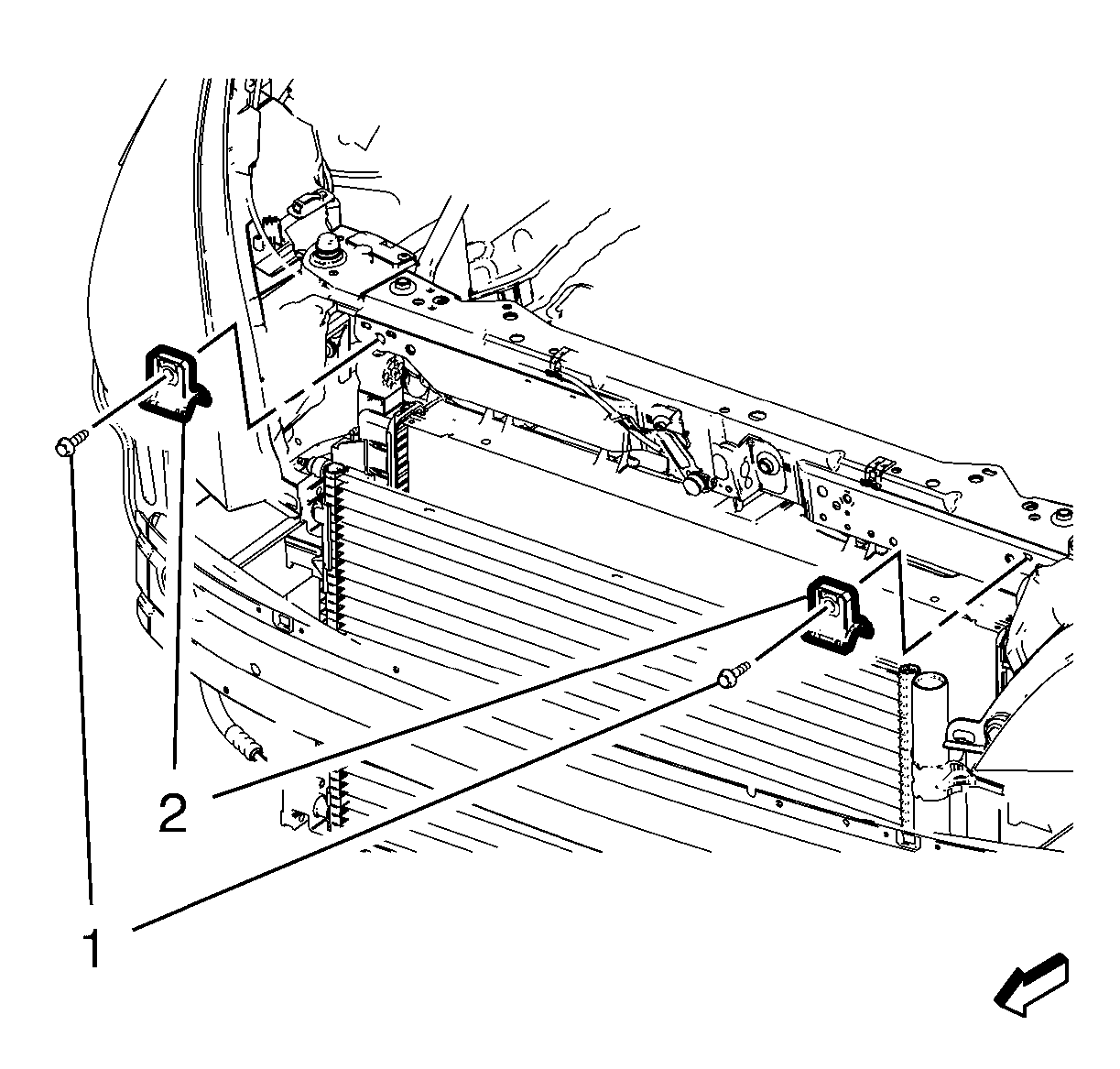

    Fig 2: Radiator Upper Bracket And Bolts
    GM2547245Courtesy of GENERAL MOTORS COMPANY
  5. Install the 2 radiator upper bracket bolts (1) and tighten to 22 N.m (16 lb ft).
    CAUTION: Refer to Fastener Caution .
  6. Clip the engine coolant fan shroud to the radiator.
  7. Install the transmission fluid cooler pipe. Refer to Transmission Fluid Cooler Pipe Replacement .
  8. Install the transmission fluid cooler inlet pipe to the radiator. Refer to Transmission Fluid Cooler Inlet Pipe Replacement (1.4L LUV) .
  9. Connect the radiator outlet hose and the radiator inlet hose to the radiator. Refer to Radiator Outlet Hose Replacement (1.4L LUV)  and Radiator Inlet Hose Replacement (1.4L LUV) .
  10. Fill and bleed the cooling system. Refer to Cooling System Draining and Filling (GE-47716 Fill)  and Cooling System Draining and Filling (Static Fill) .
  11. Install the charge air cooler. Refer to Charge Air Cooler Replacement (Automatic Transmission)  and Charge Air Cooler Replacement (Manual Transmission) .
