Radiator Outlet Hose Replacement (1.4L LUV)

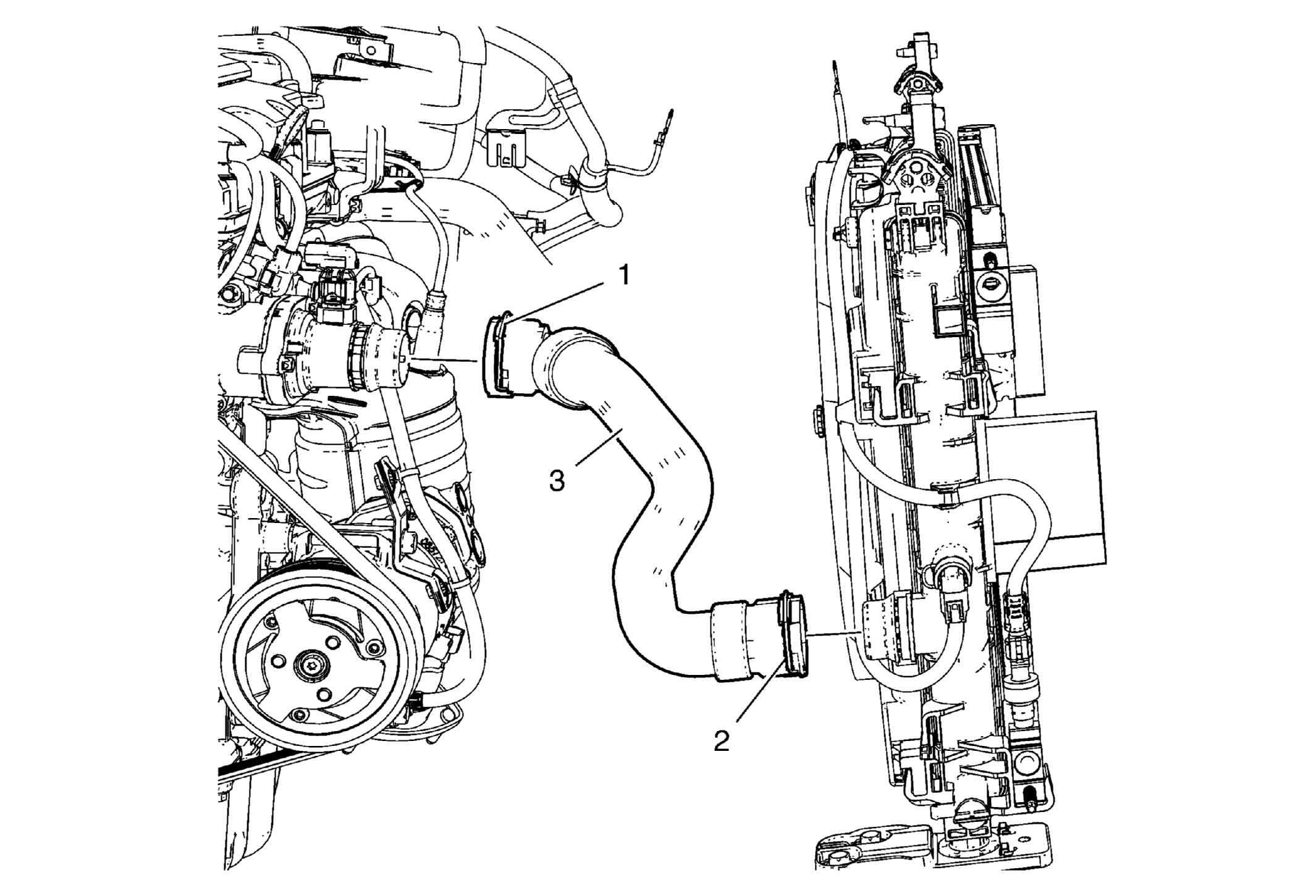

Fig 1: Radiator Outlet Hose
GM2191765Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Drain the cooling system. Refer to Cooling System Draining and Filling (GE-47716 Fill)  and Cooling System Draining and Filling (Static Fill) .
1 Radiator Outlet Hose Connector

Procedure

  1. Place a drain pan below the vehicle.
  2. Unlock radiator outlet hose connector.
2 Radiator Outlet Hose Connector
Procedure
Unlock the radiator outlet hose connector.
3 Radiator Outlet Hose
