Sunroof Housing Front Drain Hose Replacement

Preliminary Procedures

1. Remove the front side door sill trim plate. Refer to Front Side Door Sill Trim Plate Replacement .
2. It is only necessary to lower the headliner. Only perform the steps in the headliner replacement procedure that will lower the headliner enough to gain access to the part. Refer to Headlining Trim Panel Replacement (with Sunroof) and Headlining Trim Panel Replacement (without Sunroof) .
3. For replacement at the left side, remove the instrument panel lower trim pad cover, refer to Instrument Panel Lower Trim Pad Cover Replacement (without Knee Airbag) and Instrument Panel Lower Trim Pad Cover Replacement (with Knee Airbag) .
4. For replacement at the right side, remove the instrument panel compartment, refer to Instrument Panel Compartment Replacement .

Procedure

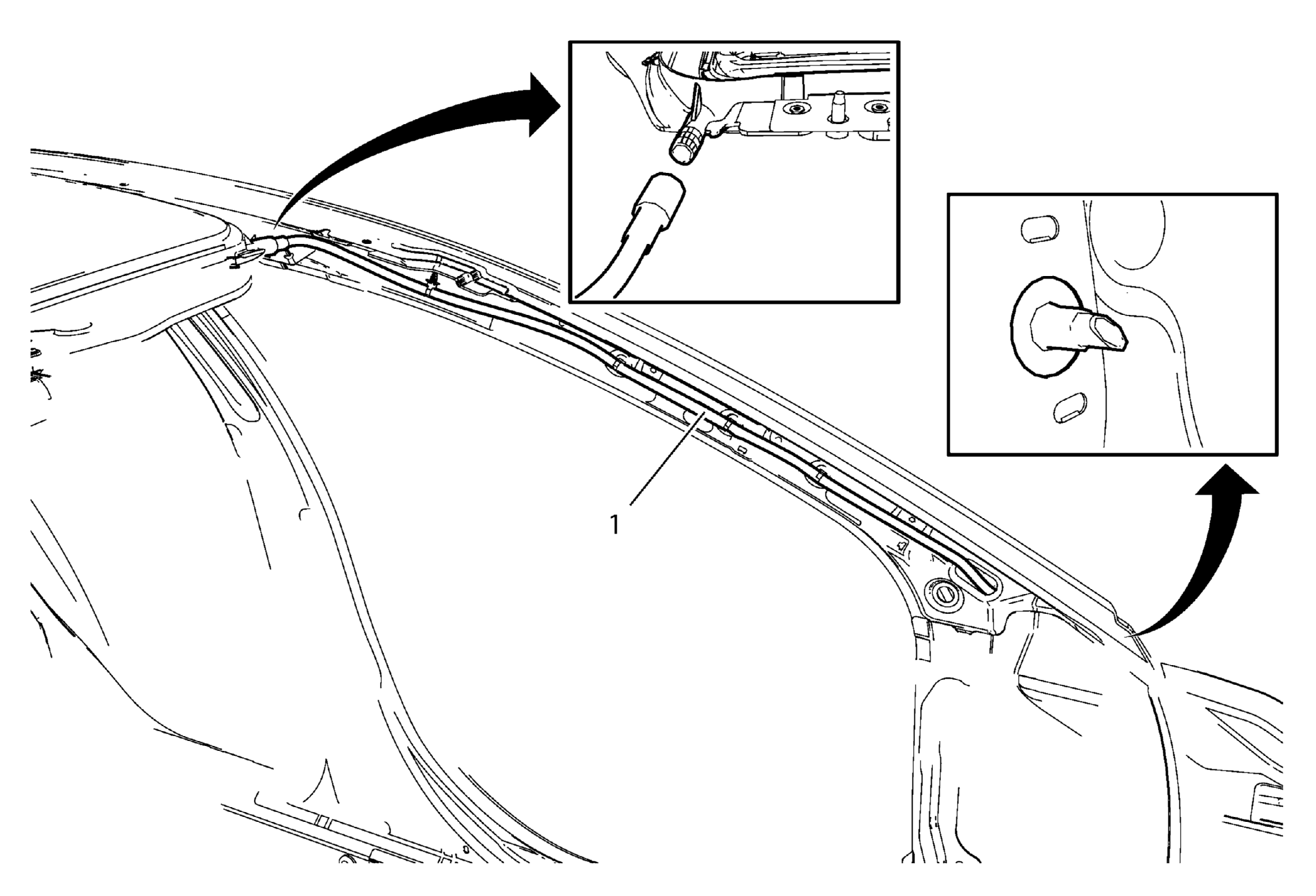

1. Disengage the sunroof drain hose from the attachment points on the windshield pillar.
2. Loosen the insulation carpet.
3. To access the sunroof housing front drain hose loosen the hood primary latch release cable handle. Refer to Hood Primary Latch Release Cable Handle Replacement .
4. To access the sunroof housing front drain hose loosen the fuse block. Refer to Fuse Block Replacement .
