Hood Primary Latch Release Cable Handle Replacement

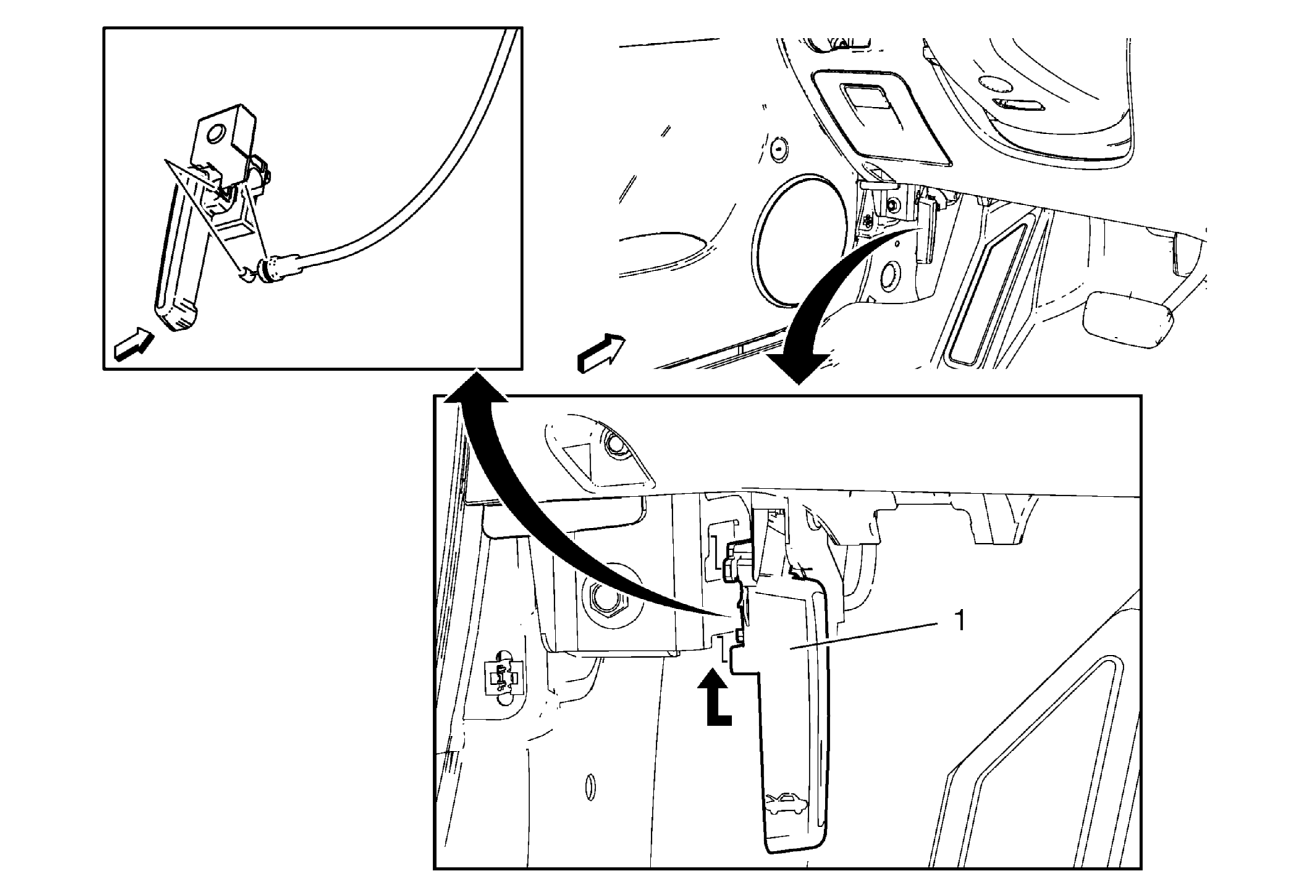

Fig 1: Hood Primary Latch Release Cable Handle Hood Primary Latch Release Cable Handle
GM2026970Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the front side door sill trim plate. Refer to Front Side Door Sill Trim Plate Replacement .
1 Hood Primary Latch Release Cable Handle

Procedure

  1. Pull down the hood primary latch release cable handle.
  2. To release the handle, pull down the cable and unhook from the handle.
