Instrument Panel Lower Trim Pad Cover Replacement (with Knee Airbag)

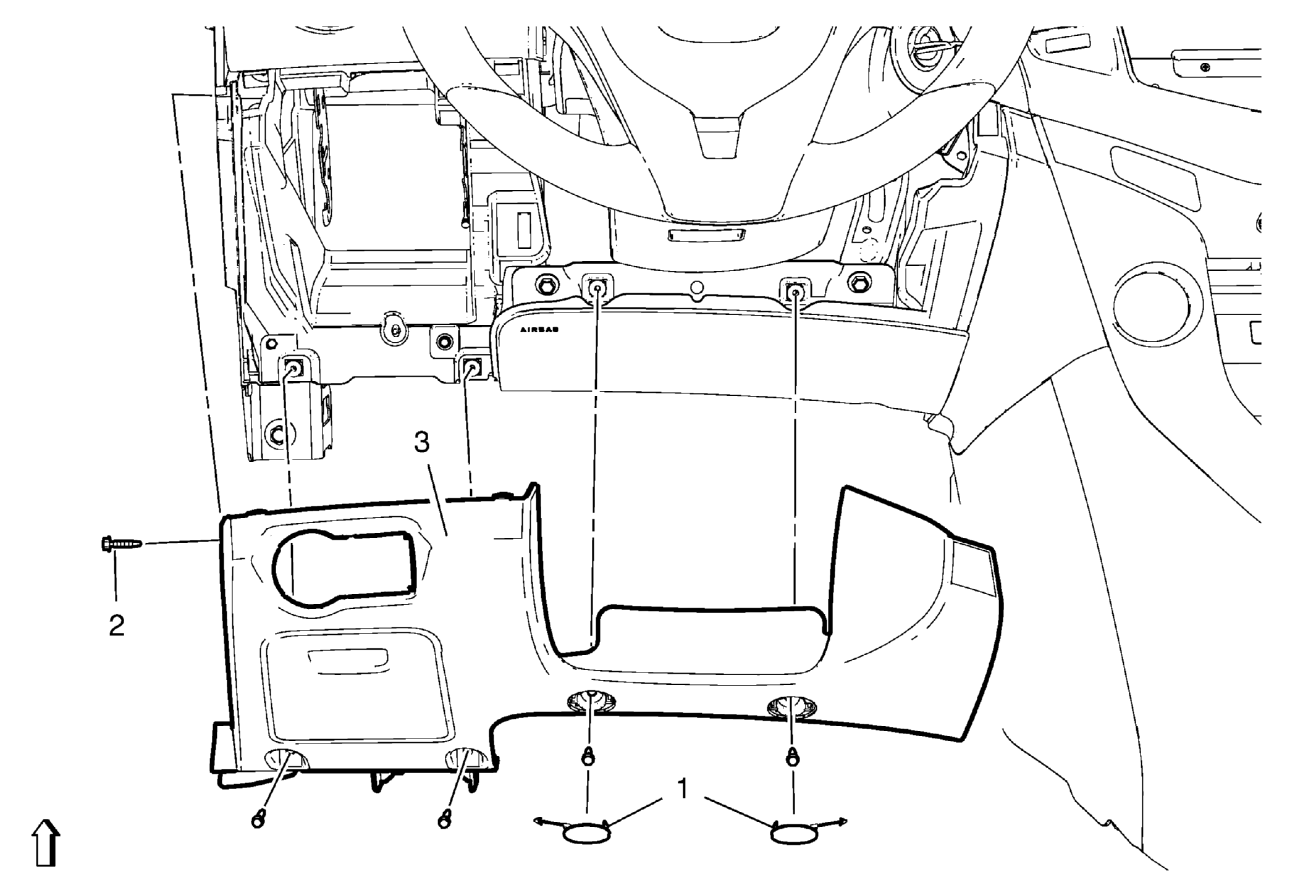

Fig 1: Instrument Panel Lower Trim Pad Cover (With Knee Airbag)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the left outer trim cover. Refer to Instrument Panel Outer Trim Cover Replacement - Left Side .
1	Instrument Panel Lower Trim Pad Cover Screw Cover (Qty: 2)
2	Instrument Panel Lower Trim Pad Cover Screw (Qty: 5) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
3	Instrument Panel Lower Trim Pad Cover Assembly Procedure Remove headlamp switch. Refer to Headlamp Switch Replacement . Disconnect the electrical connectors. When replacing the lower trim pad cover, transfer all necessary components.
