Instrument Panel Compartment Replacement

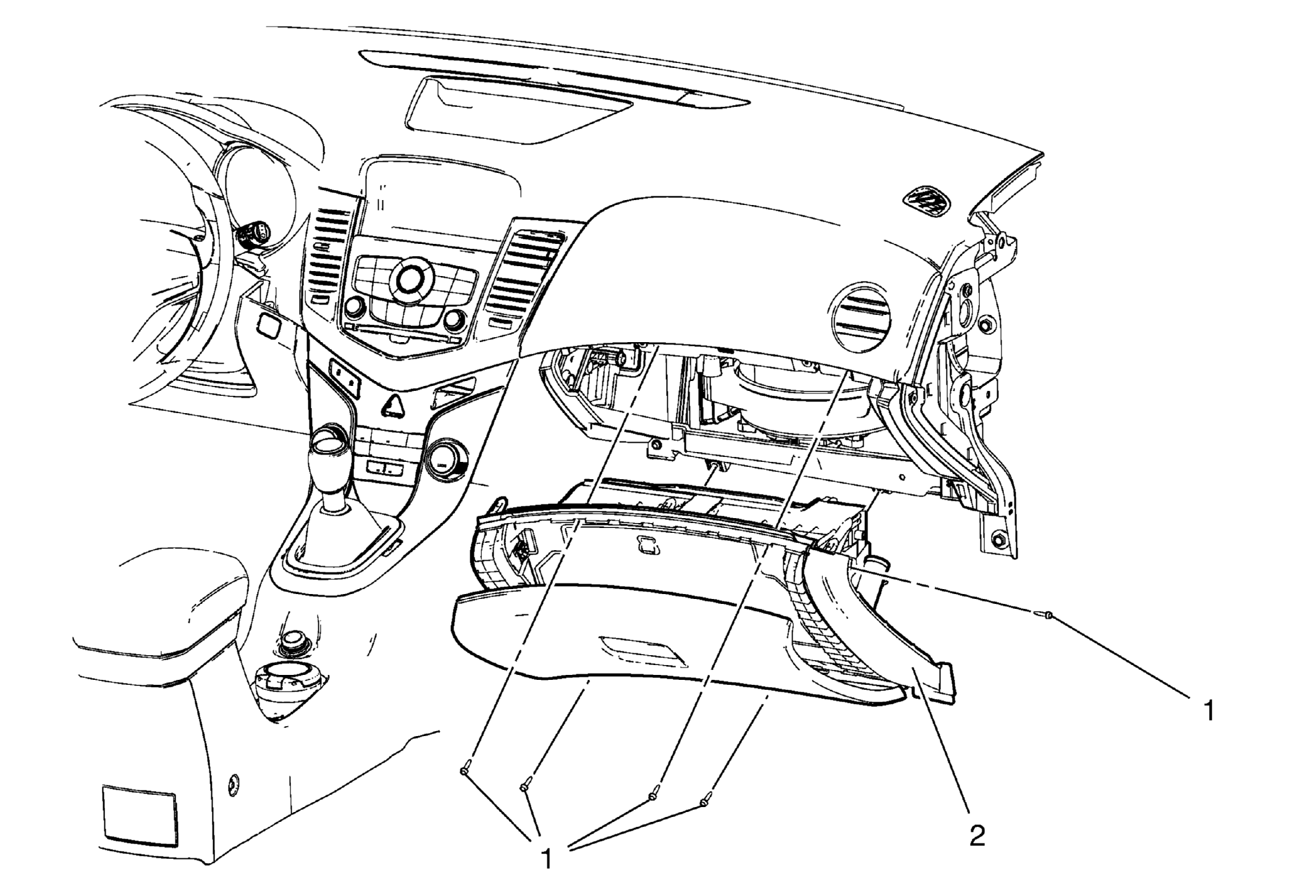

Fig 1: View Of Instrument Panel Compartment And Screws
GM2027152Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove the instrument panel insulator panel. Refer to Instrument Panel Insulator Panel Replacement - Right Side .
  2. Remove the inflatable restraint instrument panel lower module, if equipped. Refer to Instrument Panel Lower Airbag Replacement - Passenger Side .
  3. Remove the instrument panel outer trim cover - right side. Refer to Instrument Panel Outer Trim Cover Replacement - Right Side .
1 Instrument Panel Compartment Screw (Qty: 5)
CAUTION: Refer to Fastener Caution .

Tighten
2.5 N.m (22 lb in)
2 Instrument Panel Compartment
