High Mount Stop Lamp Replacement

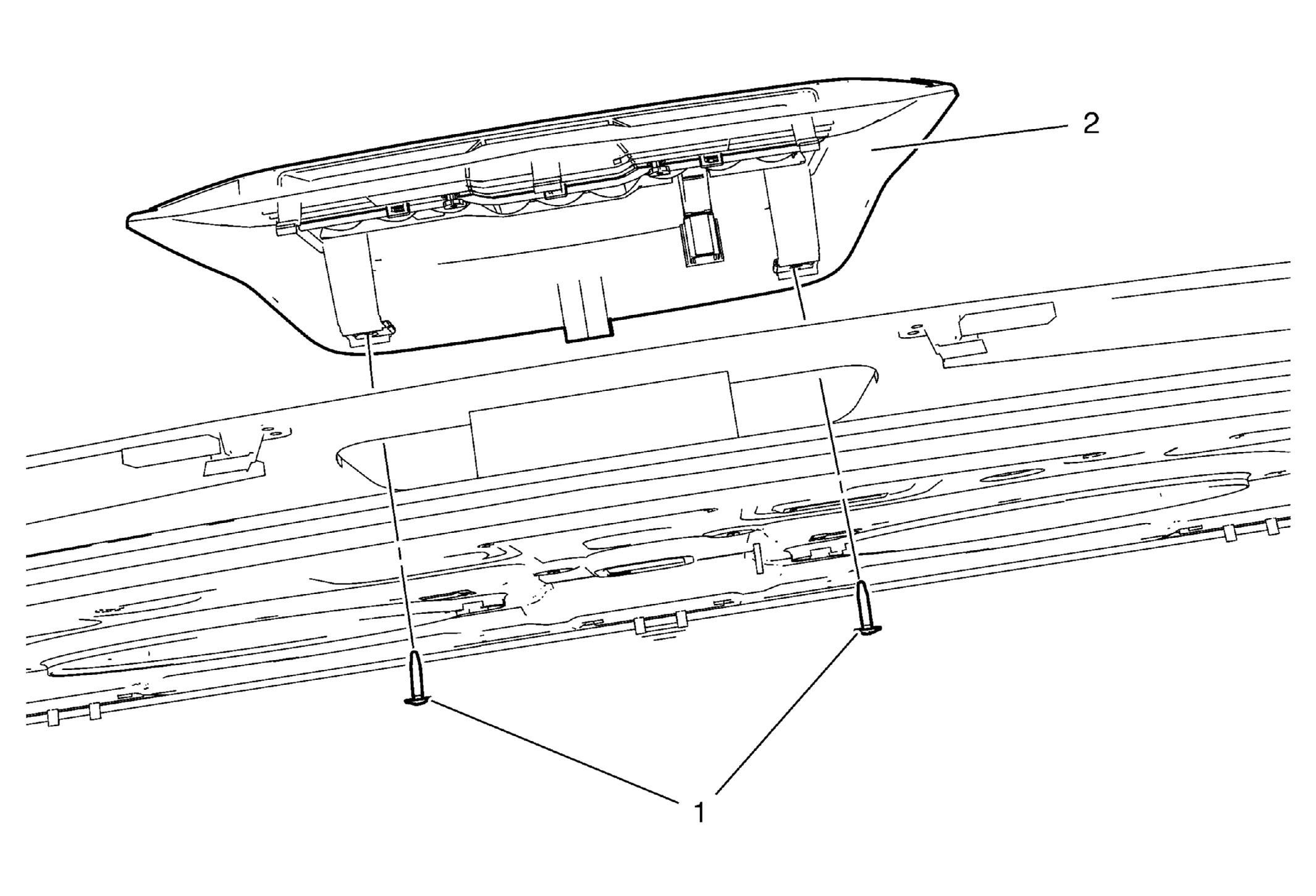

Fig 1: High Mount Stop Lamp
GM2027700Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 High Mount Stop Lamp Screw (Qty: 2)
CAUTION: Refer to Fastener Caution .
2 High Mount Stop Lamp Assembly
Procedure
Disconnect electrical connector.
