Front Fog Lamp Bezel Replacement (with Fog Lamp)

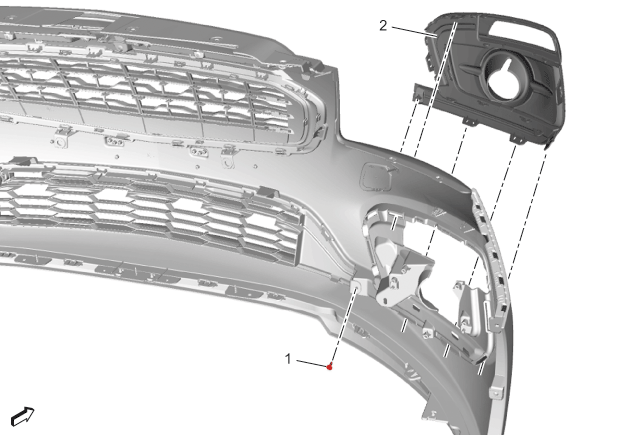

Fig 1: Front Fog Lamp Bezel (With Fog Lamp)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Front Bumper Fascia Replacement Daytime Running Lamp Replacement Front Fog Lamp Replacement
1	Front Fog Lamp Bezel Fastener CAUTION: Refer to Fastener Caution . Tighten 2 N.m (18 lb in)
2	Front Fog Lamp Bezel Procedure Release the retaining tab. [7x] Front Fog Lamp Bezel Insert Replacement

Callout

Component Name

Preliminary Procedures

Front Fog Lamp Bezel Fastener

CAUTION: Refer to Fastener Caution .

Tighten
2 N.m (18 lb in)

Front Fog Lamp Bezel

Procedure
