Front Fog Lamp Replacement

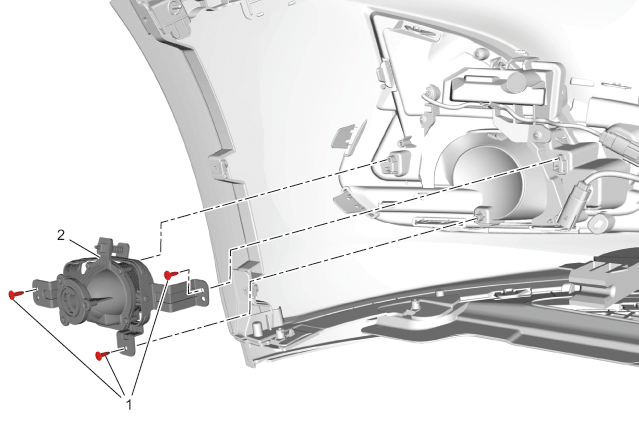

Fig 1: Front Fog Lamp
GM3903142Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedures
Remove the front bumper fasica. Refer to Front Bumper Fascia Replacement .
1 Front Fog Lamp Screws [3x]
CAUTION: Refer to Fastener Caution .

Tighten
2.5 N.m (22 lb in)
2 Front Fog Lamp Assembly
Procedure
Aim the fog lamp after installation. Refer to Fog Lamp Aiming .
