Daytime Running Lamp Replacement

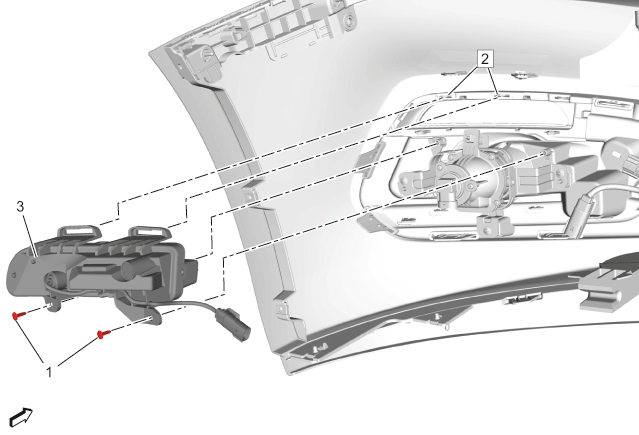

Fig 1: Daytime Running Lamp
GM3903134Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Front Bumper Fascia Replacement
1 Daytime Running Lamp Bolt [2x]
CAUTION: Refer to Fastener Caution .

Tighten
2.5 N.m (22 lb in)
2 Daytime Running Lamp Retainer [2x]
3 Daytime Running Lamp
Procedure
Disconnect the electrical connector.
