Front Fog Lamp Bezel Insert Replacement

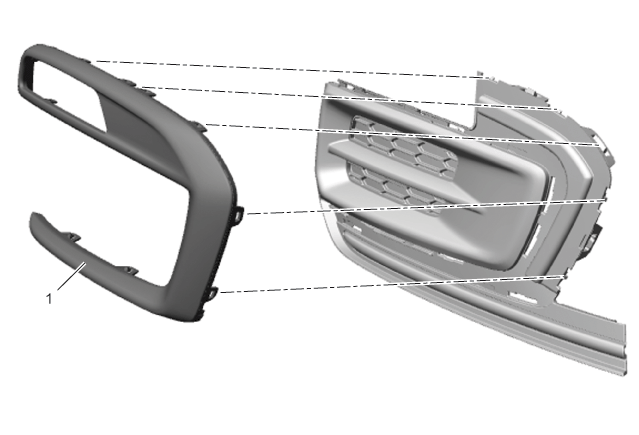

Fig 1: Front Fog Lamp Bezel Insert
GM3940049Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Front Fog Lamp Bezel Replacement (without Fog Lamp)  and Front Fog Lamp Bezel Replacement (with Fog Lamp)
  2. Daytime Running Lamp Replacement
1 Front Fog Lamp Bezel Insert
Procedure
Unlock the retaining tabs.
