Front End Upper Tie Bar Replacement

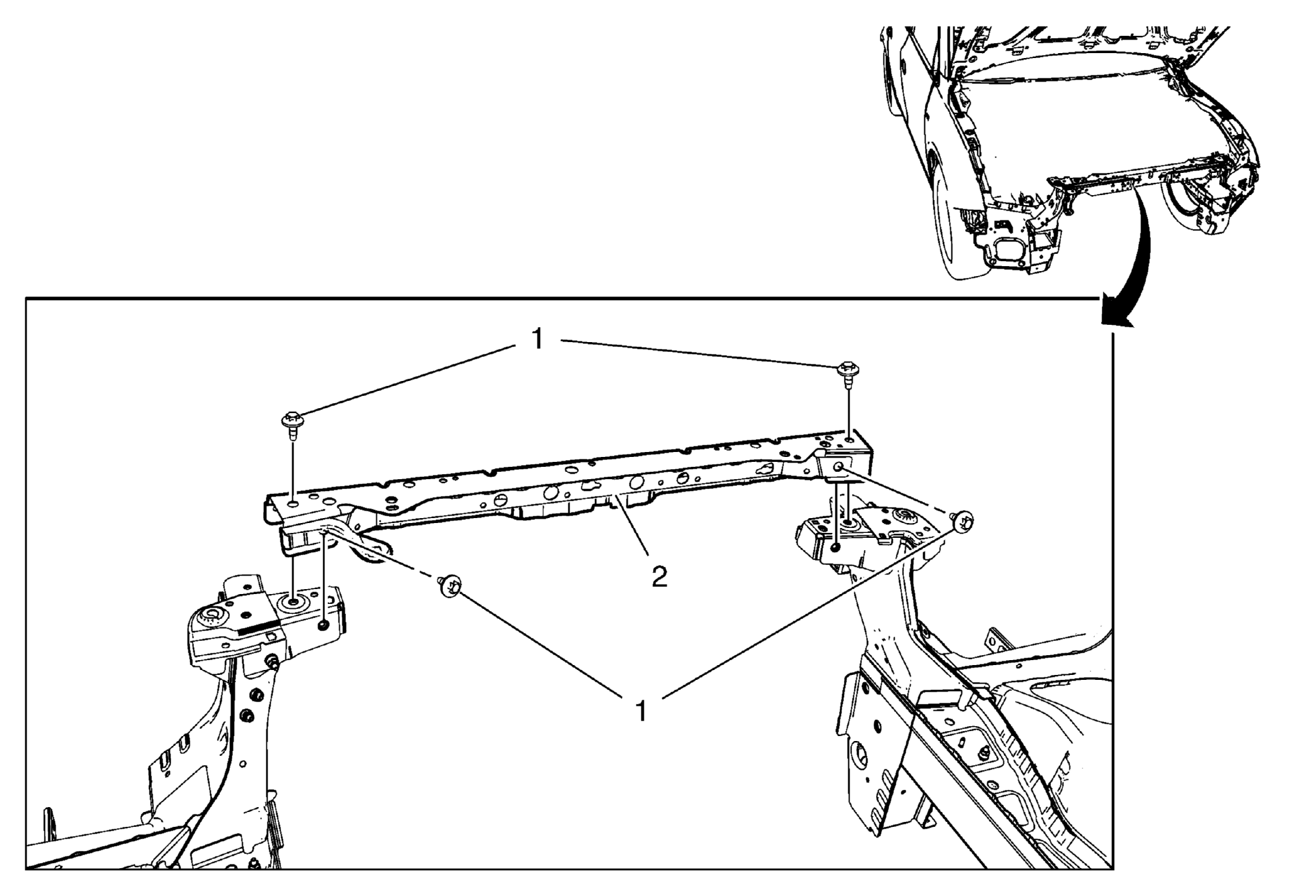

Fig 1: Front End Upper Tie Bar

GM2026968

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedures

Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement .
Remove the radiator support bracket. Refer to Radiator Support Bracket Replacement .
Remove the radiator grille reinforcement support. Refer to Front Grille Support Replacement .
Remove the hood primary and secondary latch. Refer to Hood Primary and Secondary Latch Replacement .

1

Headlamp and Front Bumper Fascia Mount Panel Bolt (Qty: 4)

CAUTION: Refer to Fastener Caution .

Tighten
22 N.m (16 lb ft)

2

Front End Upper Tie Bar
