Radiator Support Bracket Replacement

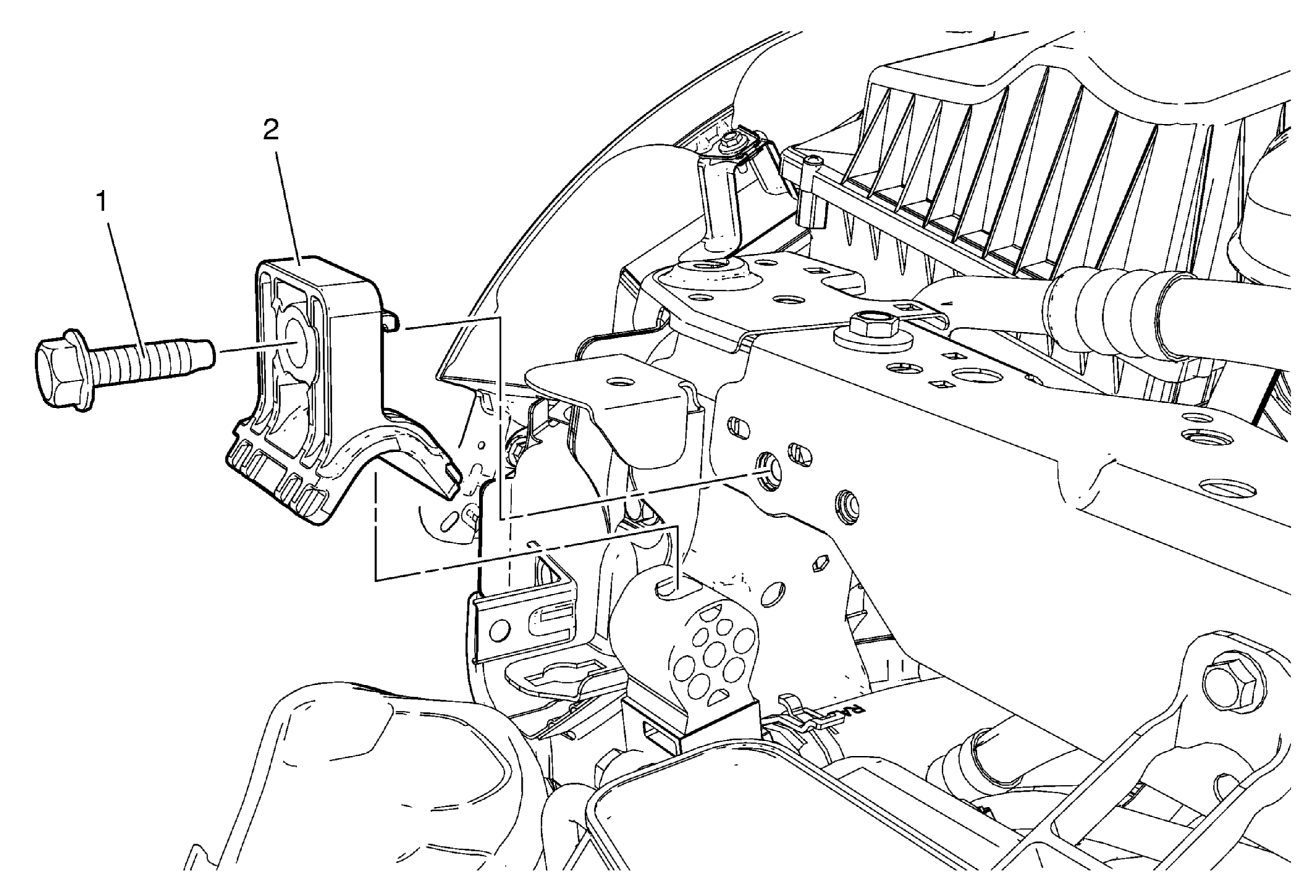

Fig 1: Radiator Support Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement .
1	Radiator Support Bracket Bolt CAUTION: Refer to Fastener Caution . Tighten  22 N.m (17 lb ft)
2	Radiator Support Bracket Procedure  Pull the radiator forward until the bracket is reachable.
