Front Grille Support Replacement

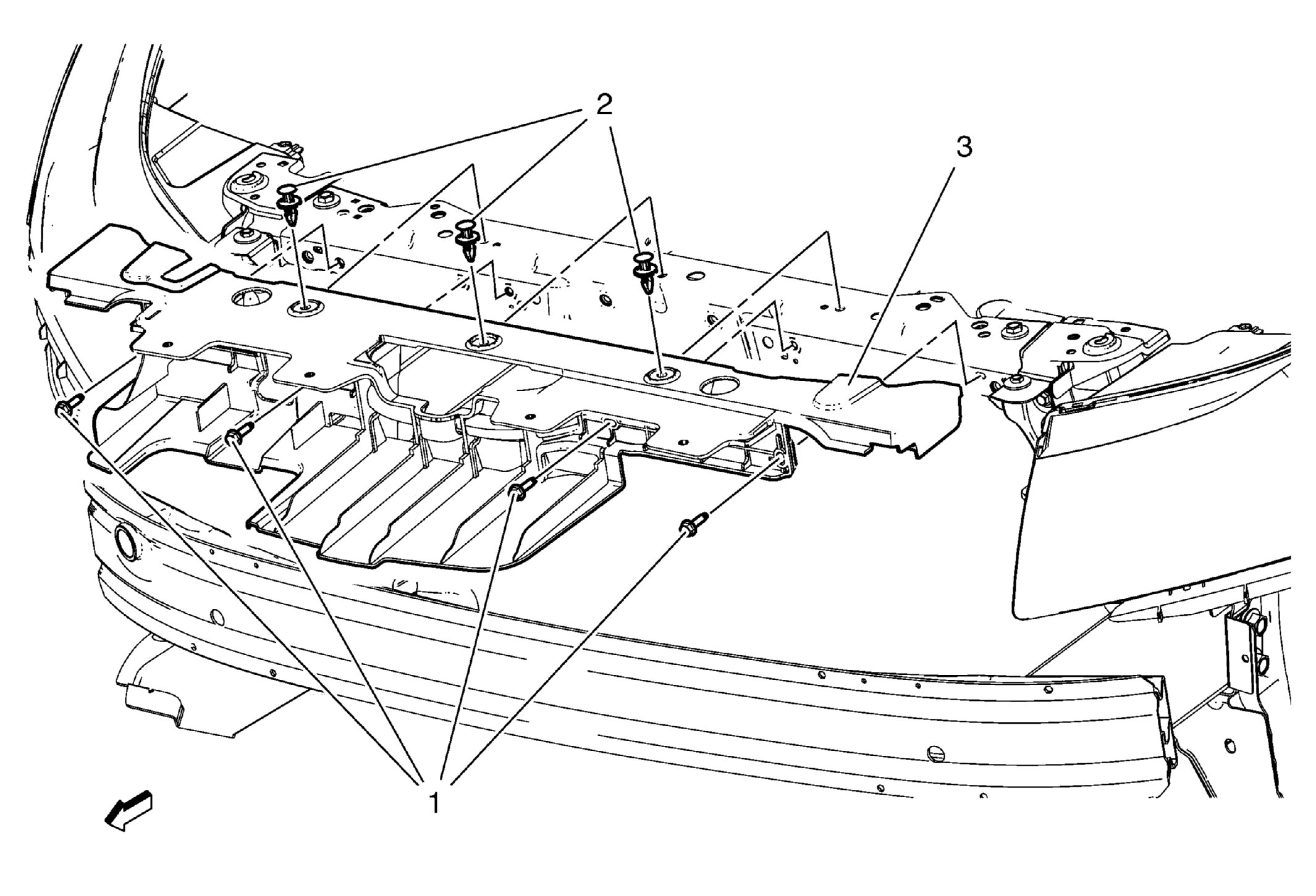

Fig 1: Radiator Grille Reinforcement Support
GM2027309Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement .
1 Radiator Grille Reinforcement Support Bolt (Qty: 4)
CAUTION: Refer to Fastener Caution .

Tighten
10 N.m (89 lb in).
2 Radiator Grille Reinforcement Support Retainer (Qty: 3)
3 Radiator Grille Reinforcement Support
