Front Side Door Outside Handle Bracket Replacement

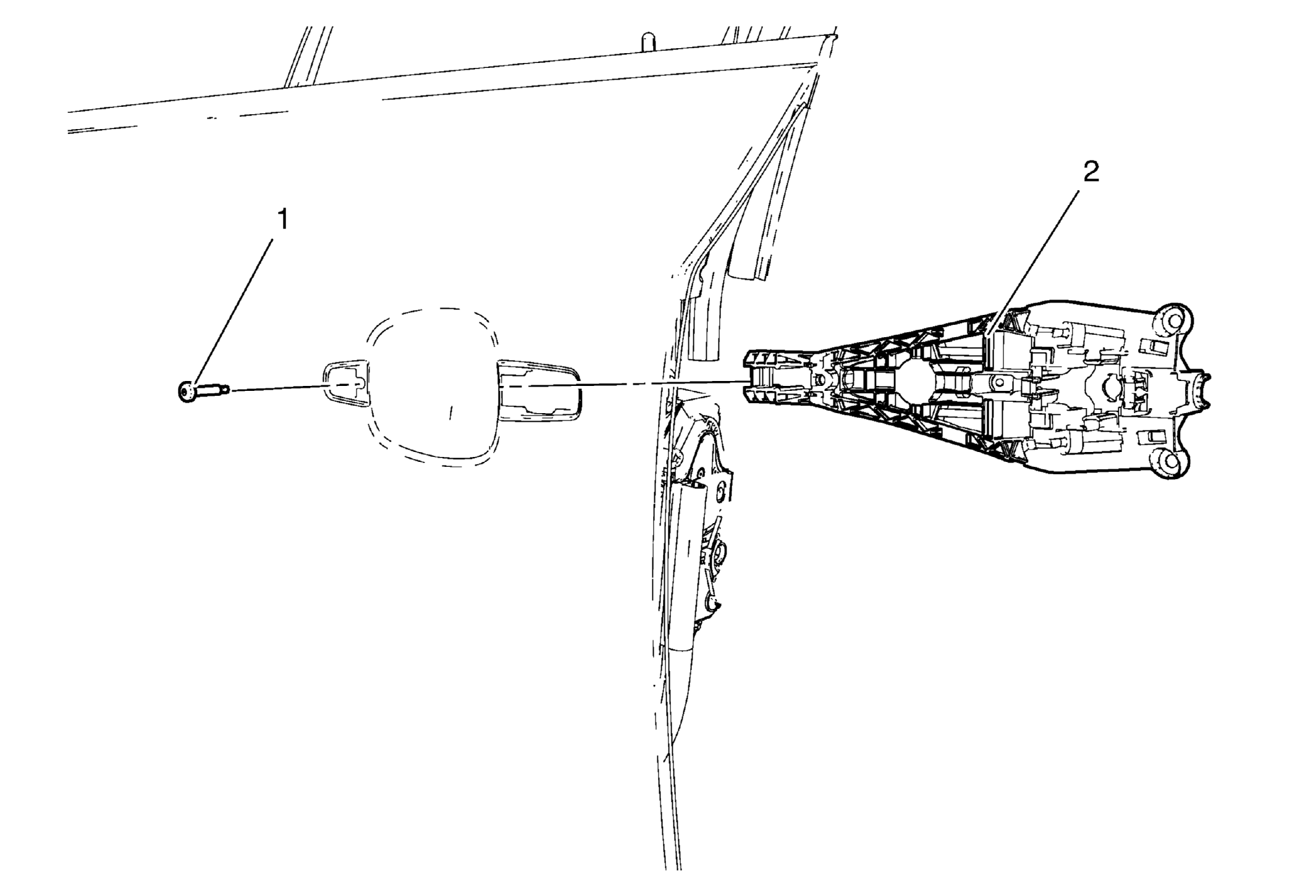

Fig 1: Front Side Door Outside Handle Bracket And Bolt

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front side door trim. Refer to Front Side Door Trim Replacement . Remove the front side door water deflector. Refer to Front Side Door Water Deflector Replacement . Remove the front side door outside handle. Refer to Front Side Door Outside Handle Replacement (without Keyless Entry) and Front Side Door Outside Handle Replacement (with Keyless Entry) .
1	Front Side Door Outside Handle Bracket Bolt CAUTION: Refer to Fastener Caution . Tighten 3.5 N.m (31 lb in)
2	Front Side Door Outside Handle Bracket Procedure Disconnect the front side door latch (lock) and handle rods to remove the housing. Unclip the Passive Entry Passive Start wiring harness. Inspect the latch, lock cylinder and handle adjustments. Refer to Front Side Door Outside Handle Rod Adjustment .

Callout

Component Name

Preliminary Procedures

Front Side Door Outside Handle Bracket Bolt

CAUTION: Refer to Fastener Caution .

Tighten
3.5 N.m (31 lb in)

Front Side Door Outside Handle Bracket

Procedure

Disconnect the front side door latch (lock) and handle rods to remove the housing.
Unclip the Passive Entry Passive Start wiring harness.
Inspect the latch, lock cylinder and handle adjustments. Refer to Front Side Door Outside Handle Rod Adjustment .
