Front Side Door Outside Handle Replacement (without Keyless Entry)

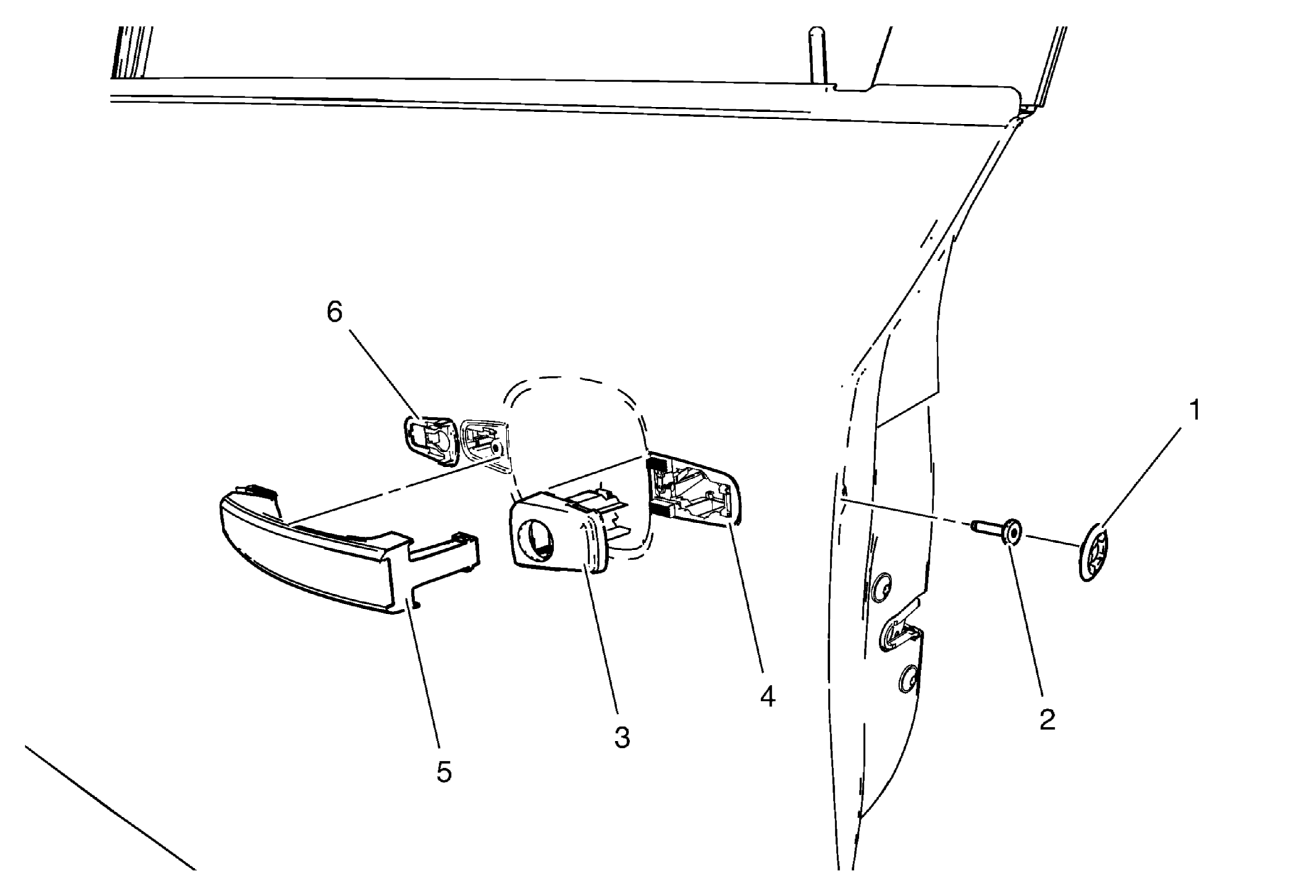

Fig 1: Front Side Door Outside Handle Components (Without Keyless Entry)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Bolt Access Plug Procedure Use a plastic flat-bladed tool to remove.
2	Front Side Door Outside Handle Bolt CAUTION: Refer to Fastener Caution . Procedure Loosen the front side door outside handle bolt until the front side door outside handle cap could be removed. The handle must be pulled rearward while the handle bolt is loosened. Tighten 9 N.m (80 lb in)
3	Front Door Outside Handle Cap
4	Front Door Outside Handle Cap Gasket Procedure Use a plastic flat-bladed tool to remove.
5	Front Door Outside Handle Procedure Pull the outside handle rearward to release it from the inside handle housing.
6	Front Door Outside Handle Gasket Procedure Inspect the lock, lock cylinder and handle adjustments. Refer to Front Side Door Outside Handle Rod Adjustment .
