Front Side Door Outside Handle Replacement (with Keyless Entry)

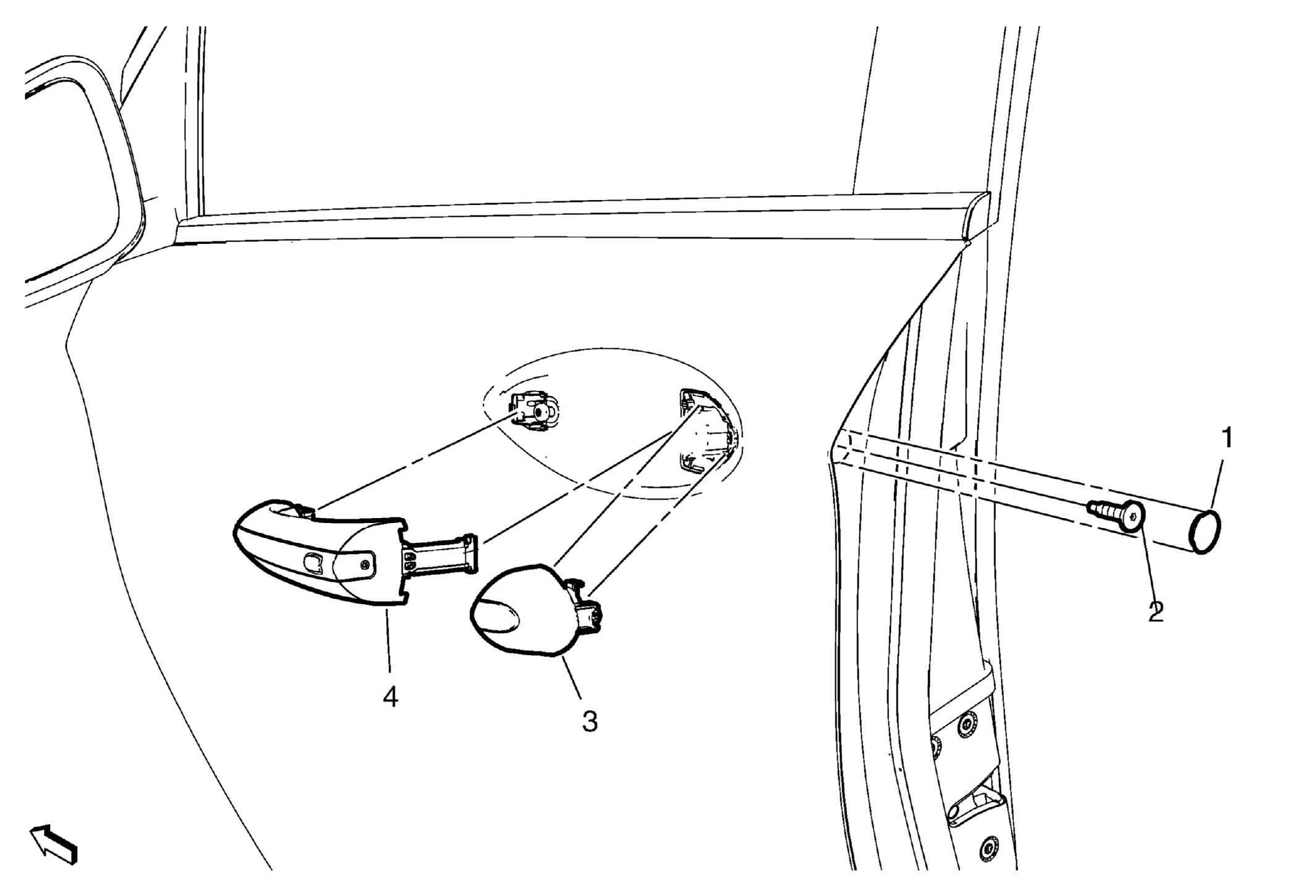

Fig 1: Front Side Door Outside Handle Components (With Keyless Entry)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Front Side Door Window Replacement
1	Bolt Access Plug Procedure Use a flat bladed plastic tool to remove.
2	Front Side Door Outside Handle Bolt CAUTION: Refer to Fastener Caution . Procedure Loosen the front side door outside handle bolt until the front side door outside handle cap could be removed. Tighten 4.7 N.m (42 lb in)
3	Front Side Door Lock Cylinder Opening Cover
4	Front Door Outside Handle Procedure Pull the outside handle rearward to release it from the handle housing. Disconnect the electrical connector.
