Front Side Door Trim Replacement

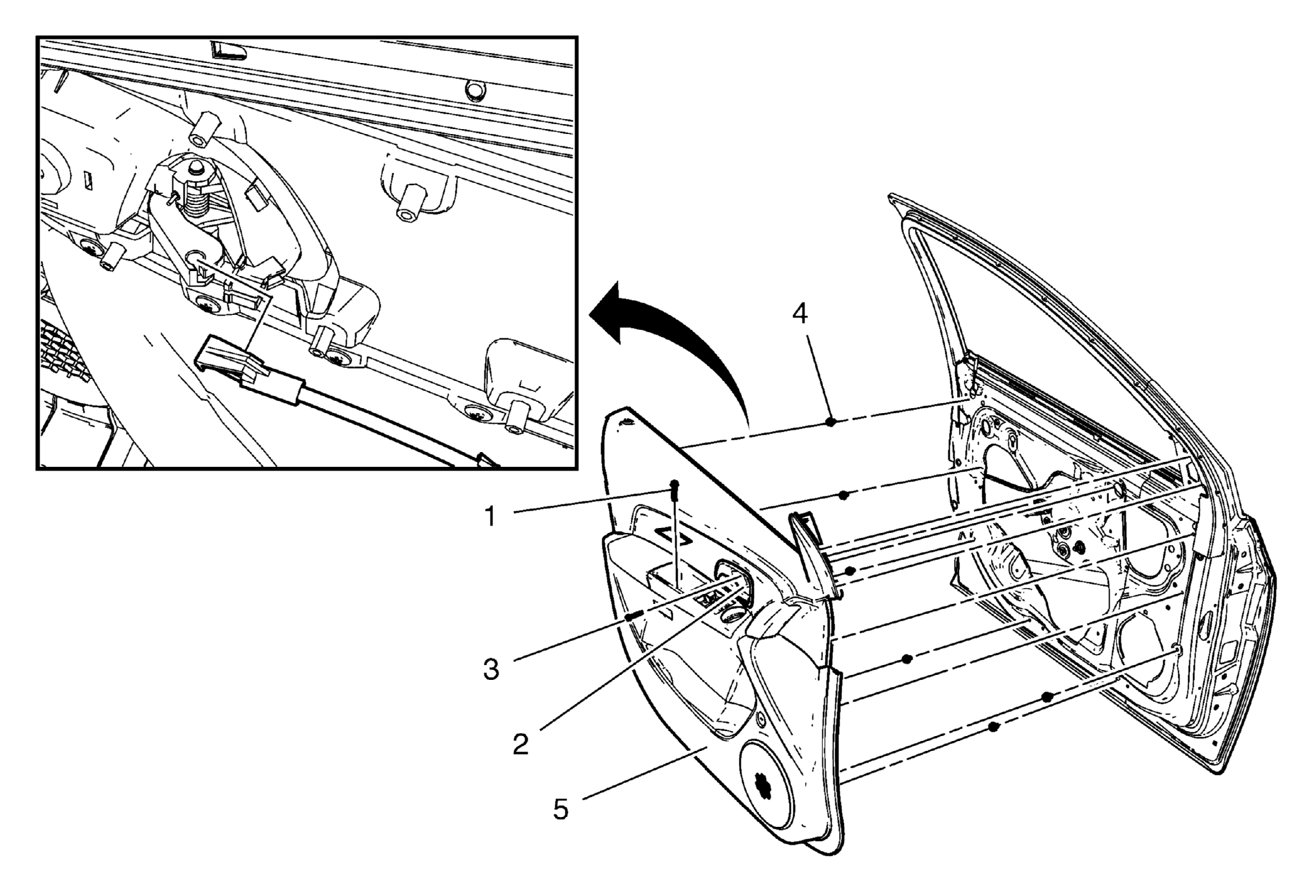

Fig 1: Locating Front Side Door Trim Components

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front side door upper trim cover. Refer to Front Side Door Upper Trim Cover Replacement .
1	Front Side Door Pull Handle Bolt CAUTION: Refer to Fastener Caution . Tighten 2 N.m (18 lb in)
2	Front Side Door Inside Handle Bolt Finish Cap Procedure Pull handle back to remove cap. Use suitable tool to unsnap.
3	Front Side Door Inside Handle Bolt Tighten 2.5 N.m (22 lb in)
4	Front Side Door Trim Clip (Qty: 8) WARNING: These retainers/clips MUST be replaced with new retainers/clips anytime they become loose or are removed. Failure to replace these retainers/clips after they become loose or are removed may cause a severe loss of safety in cases of a crash and lead to personal injury. Special Tools BO-38778 Door Trim Panel Clip Remover For equivalent regional tools, refer to Special Tools .
5	Front Side Door Trim Procedure Pull upwards on the door lock retainer cable to disengage. Disconnect the electrical connectors. TIP: Only use BO-38778 remover to disengage the door trim clips from the door. Do not disengage the clips by pulling from the map pocket area, since this can distort the trim panel.
