Engine Oil Cooler Replacement (L99, LSA, LS3)

WARNING: This page is about a different variant/trim than selected.

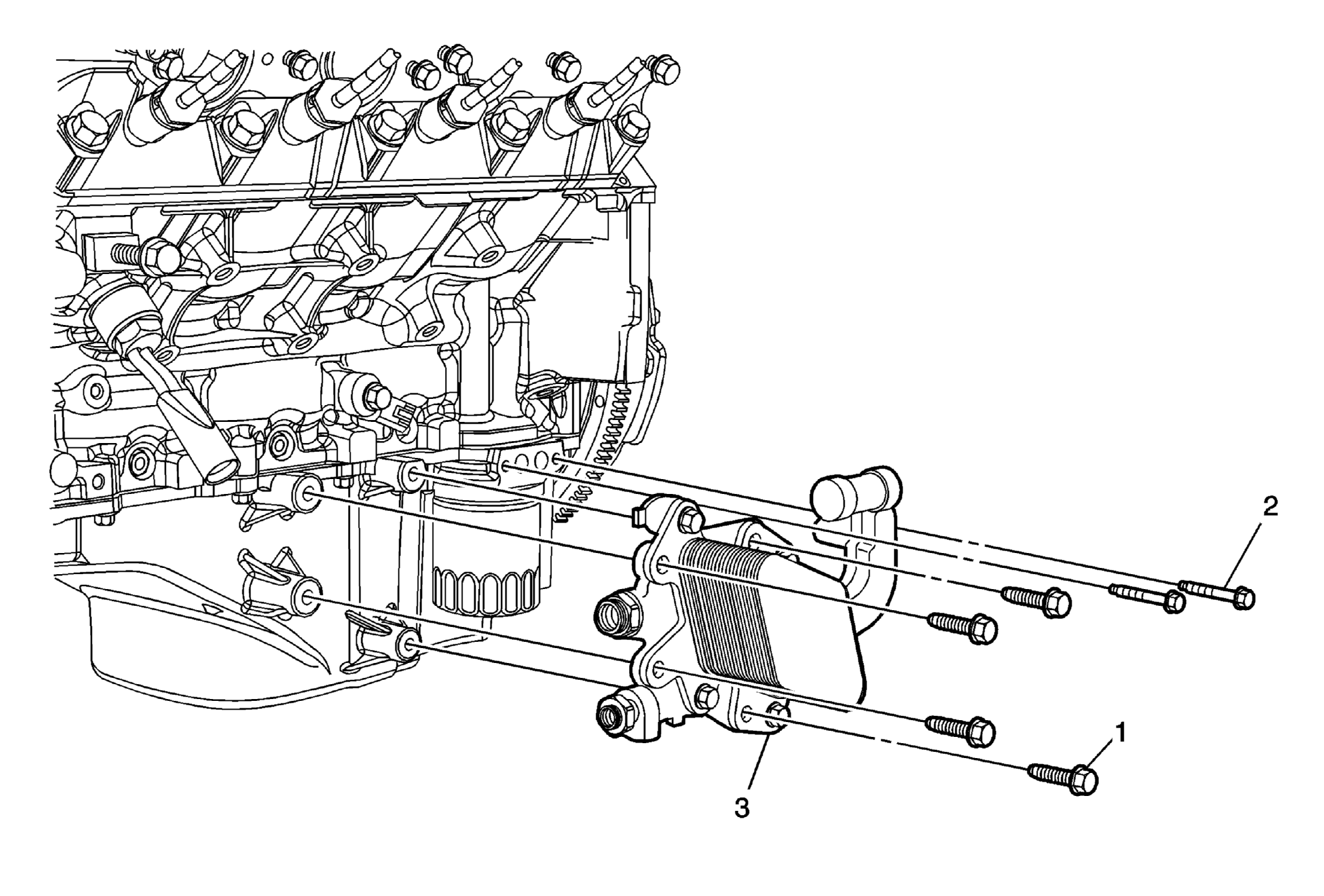

Fig 1: Identifying Engine Oil Cooler (L99, LSA, LS3)
GM2153756Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove engine oil cooler coolant inlet hose. Refer to Engine Oil Cooler Coolant Inlet Hose Replacement (LS3, L99. LSA) .
  2. Remove engine oil cooler pipe. Refer to Engine Oil Cooler Pipe Replacement (LS3, L99)Engine Oil Cooler Pipe Replacement (LSA) .
1 Engine Oil Cooler Fastener (Qty: 4)
Tighten
25 N.m (18 lb ft)
2 Engine Oil Cooler Fastener (Qty: 2)
CAUTION:

Refer to Component Fastener Tightening Caution .


Tighten
10 N.m (89 lb in)
3 Engine Oil Cooler

Procedure

  1. Transfer components as necessary.
  2. Ensure the full oil level after installation.
