Engine Oil Cooler Pipe Replacement (LS3, L99)

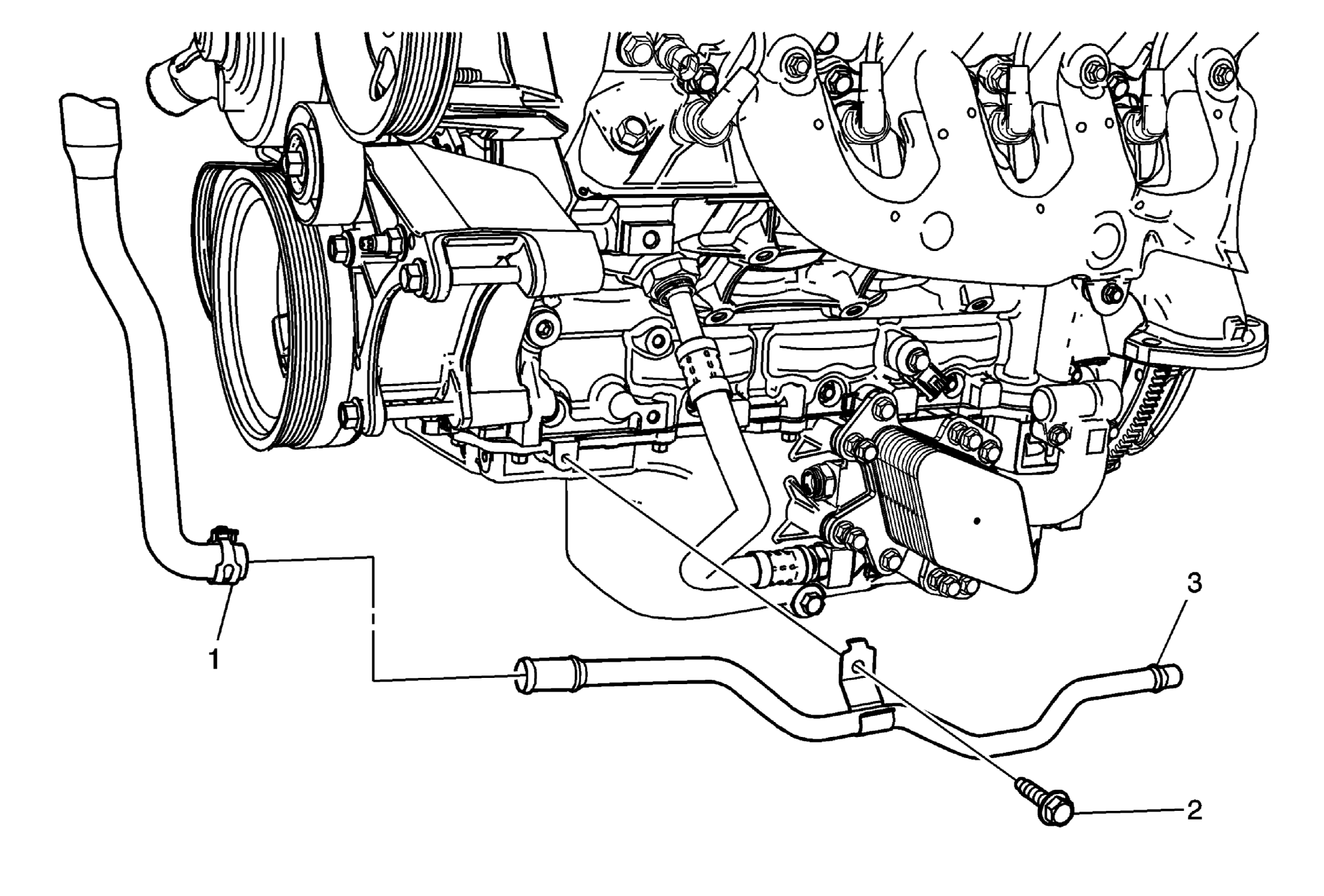

Fig 1: Engine Oil Cooler Pipe, Bolt And Radiator Inlet Hose Clamp (LS3, L99)
GM2208358Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Install oil drain pan under the vehicle.
  2. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle
1 Radiator Inlet Hose Clamp
Procedure
Using J 38185  Hose Clamp Pliers reposition the radiator inlet hose clamps.
Special Tools
J 38185  Hose Clamp Pliers
2 Engine Oil Cooler Pipe Bolt
CAUTION:

Refer to Fastener Caution .


Tighten
10 N.m (89 lb in)
3 Engine Oil Cooler Pipe
Procedure
Disconnect the engine oil cooler pipe from the engine oil cooler. Refer to Engine Oil Cooler Hose/Pipe Quick-Connect Fitting Disconnection and Connection
