Engine Oil Cooler Pipe Replacement (LSA)

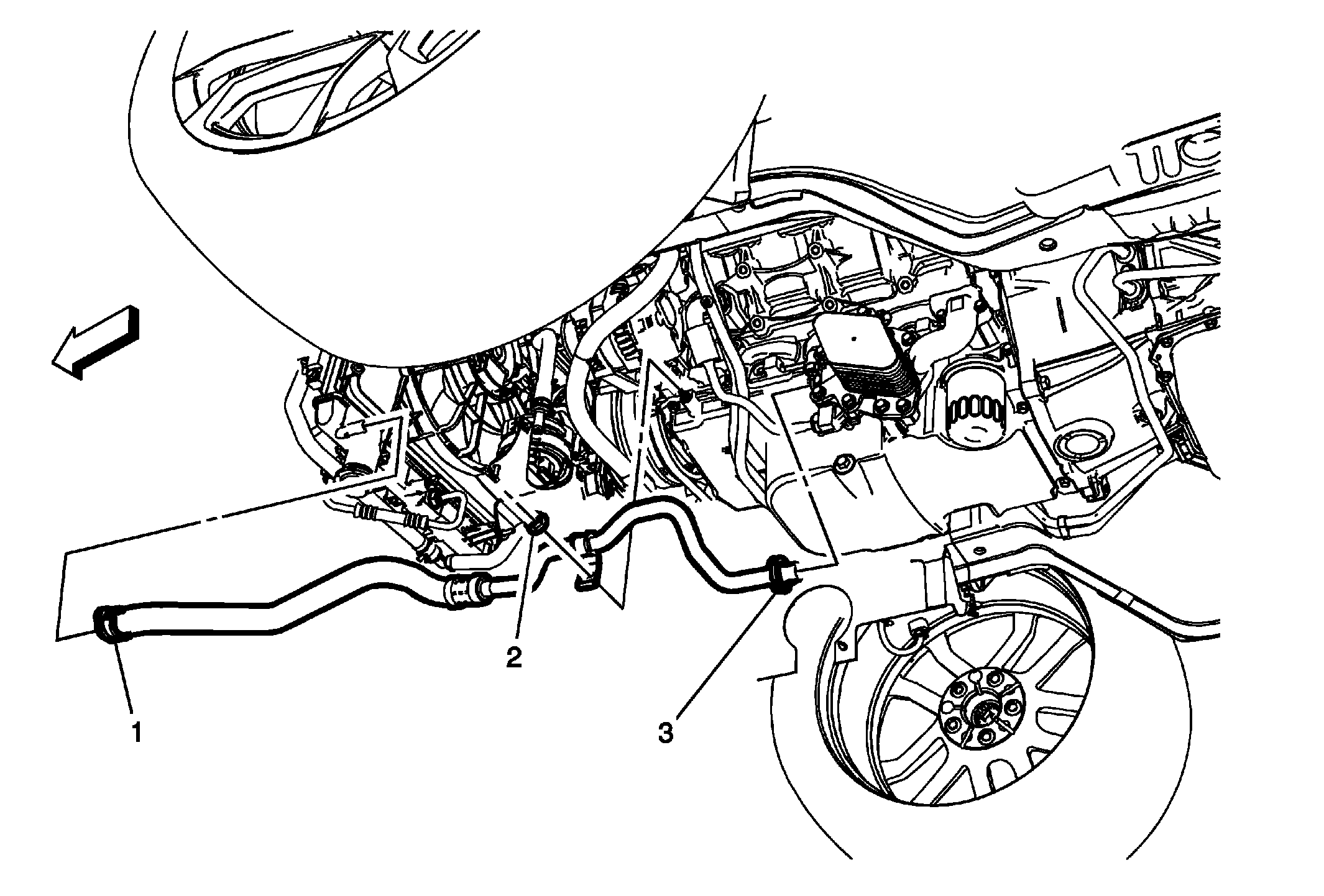

Fig 1: Engine Oil Cooler Pipe, Clamp & Fastener (LSA)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Drain the coolant. Refer to Cooling System Draining and Filling (LSA, LS3, LS7, L99 Static Fill) Cooling System Draining and Filling (GE 47716) . Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the generator. Refer to Generator Replacement (LS7, LSA) .
1	Radiator Inlet Hose Clamp CAUTION: Refer to Fastener Caution . Special Tools EN-38185 Hose Clamp Pliers For equivalent regional tools, refer to Special Tools .
2	Engine Oil Cooler Pipe Fastener Tighten 9 N.m (80 lb in)
3	Engine Oil Cooler Hose/Pipe Procedure Disconnect the engine oil cooler pipe from the engine oil cooler. Refer to Engine Oil Cooler Hose/Pipe Quick-Connect Fitting Disconnection and Connection .
