Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Drain the coolant. Refer to Cooling System Draining and Filling (LSA, LS3, LS7, L99 Static Fill)Cooling System Draining and Filling (GE 47716) .
  2. Remove the valve rocker arms and pushrods. Refer to Valve Rocker Arm and Push Rod Replacement .
  3. Remove the engine coolant air bleed hose. Refer to Engine Coolant Air Bleed Hose Replacement (LS7) .
  4. Remove the exhaust manifold. Refer to Exhaust Manifold Replacement - Left Side (LS7) .
  5. Remove the Engine Coolant Air Bleed Pipe and Hole Cover. Refer to Engine Coolant Air Bleed Pipe and Hole Cover Removal (LS3, L99, or LS7) .
  6. Remove the engine wiring harness ground bolt from the rear of the left cylinder head.
  7. Reposition the engine wire harness ground strap away from the cylinder head.
  8. Disconnect and unclip electrical as necessary.

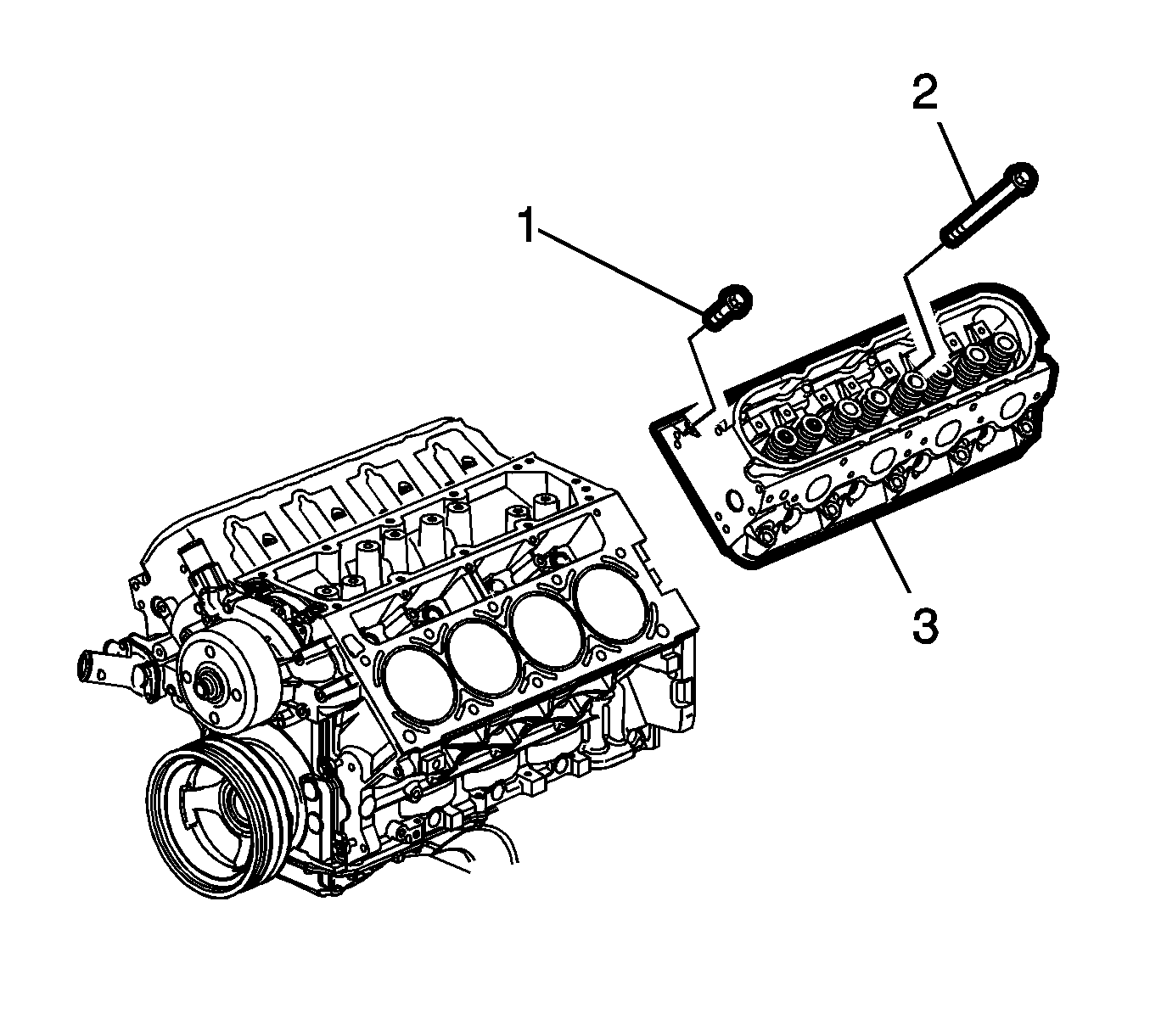

    9. Fig 1: Cylinder Head & Bolts
    GM3290822Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    The cylinder head bolts are NOT reusable.

    CAUTION:

    After removal, place the cylinder head on 2 wood blocks in order to prevent damage to the sealing surfaces.

  9. Remove and discard the cylinder head bolts (1,2).
  10. Remove the cylinder head (3).

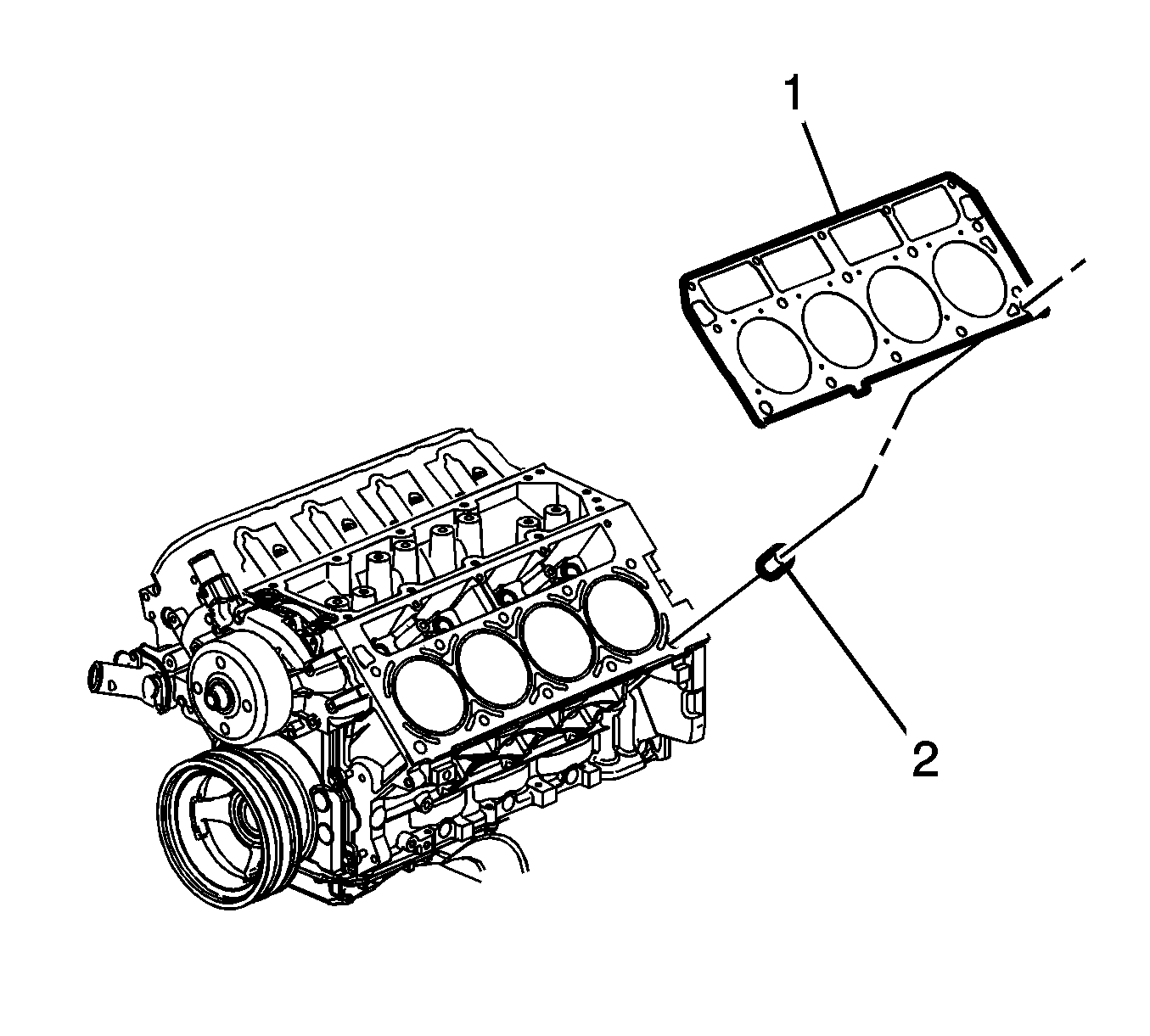

    11. Fig 2: Cylinder Head Gasket & Locating Pins
    GM3290844Courtesy of GENERAL MOTORS COMPANY
  11. Remove the cylinder head gasket (1) and locating pins (2).
  12. Discard the gasket.
  13. Discard all M8 and M11 cylinder head bolts.
  14. Clean and inspect the cylinder head. Refer to Cylinder Head Cleaning and Inspection (LS7) .
