Engine Coolant Air Bleed Hose Replacement (LS7)

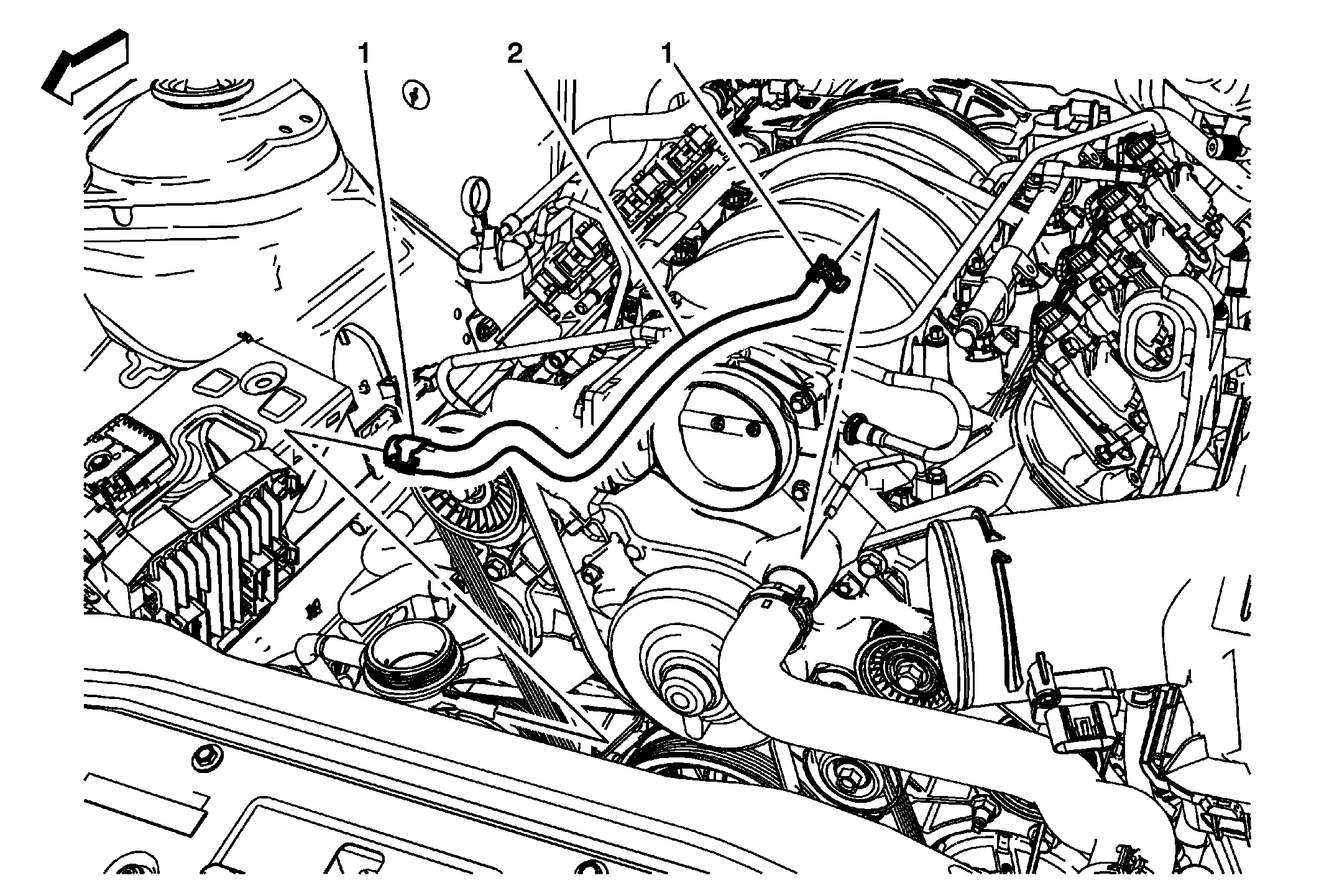

Fig 1: Engine Coolant Air Bleed Hose (LS7)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Drain the engine cooling system. Refer to Cooling System Draining and Filling (LSA, LS3, LS7, L99 Static Fill) Cooling System Draining and Filling (GE 47716) . Remove the left side intake manifold cover. Refer to Intake Manifold Cover Replacement (Left Side)Intake Manifold Cover Replacement (Right Side) . Remove air cleaner outlet duct. Refer to Air Cleaner Resonator and Outlet Duct Replacement (LS7) .
1	Engine Coolant Air Bleed Hose Clamp (Qty: 2) Procedure Reposition engine coolant air bleed hose clamp using J 38185 Hose Clamp Pliers. Special Tools J 38185 Hose Clamp Pliers
2	Engine Coolant Air Bleed Hose

Callout

Component Name

Preliminary Procedures

Drain the engine cooling system. Refer to Cooling System Draining and Filling (LSA, LS3, LS7, L99 Static Fill) Cooling System Draining and Filling (GE 47716) .
Remove the left side intake manifold cover. Refer to Intake Manifold Cover Replacement (Left Side)Intake Manifold Cover Replacement (Right Side) .
Remove air cleaner outlet duct. Refer to Air Cleaner Resonator and Outlet Duct Replacement (LS7) .

Engine Coolant Air Bleed Hose Clamp (Qty: 2)
Procedure
Reposition engine coolant air bleed hose clamp using J 38185 Hose Clamp Pliers.
Special Tools
J 38185 Hose Clamp Pliers

Engine Coolant Air Bleed Hose
