Engine Coolant Air Bleed Pipe and Hole Cover Removal (LS3, L99, or LS7)

WARNING: This page is about a different variant/trim than selected.

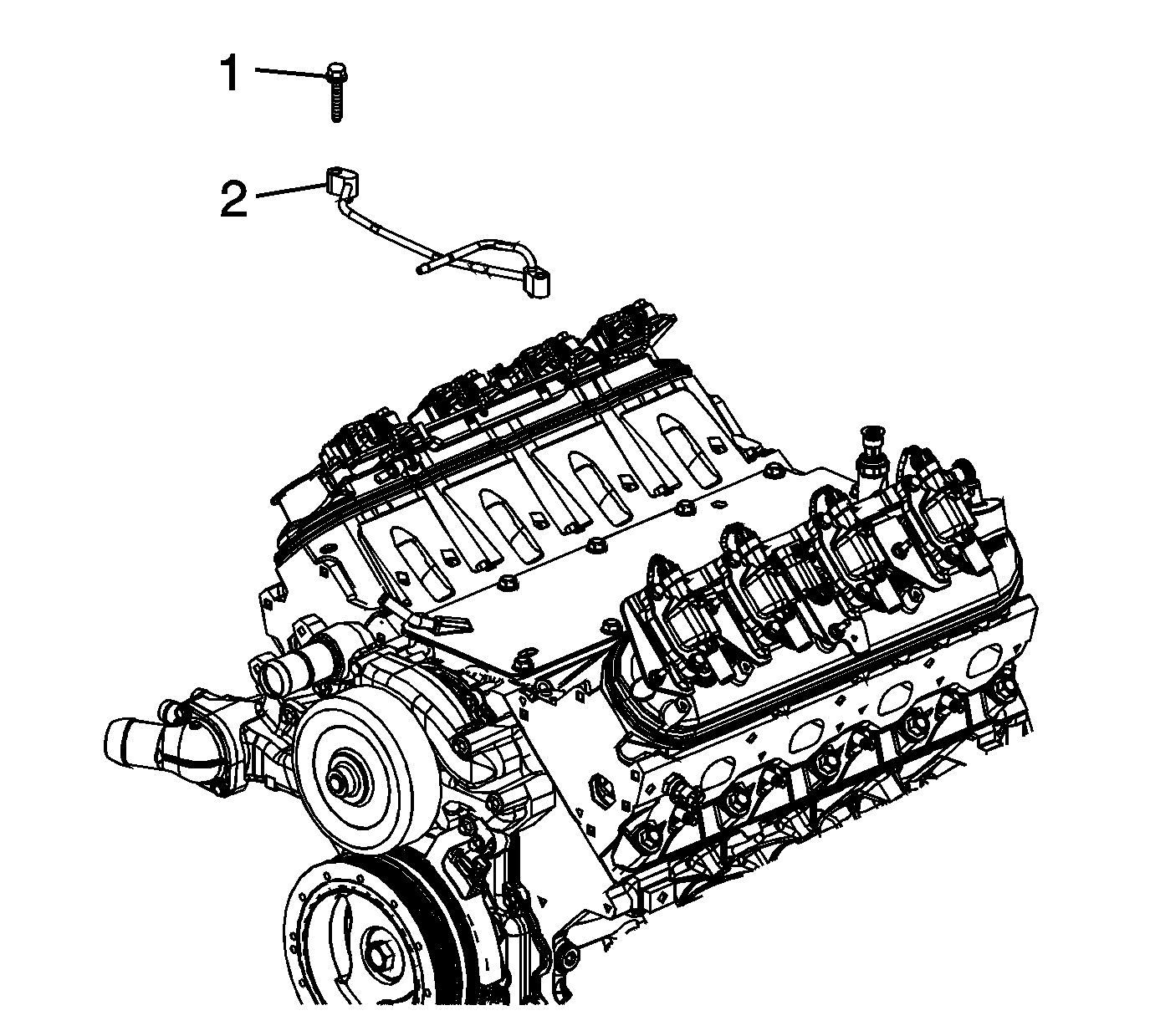

    Fig 1: Identifying Engine Coolant Air Bleed Pipe & Bolts
    GM2071570Courtesy of GENERAL MOTORS COMPANY
  1. Remove the engine coolant air bleed pipe bolts (1).
  2. Remove the pipe (2).
    3. Fig 2: View Of Coolant Air Bleed Pipe Seal
    GM1552485Courtesy of GENERAL MOTORS COMPANY
  3. Remove the seals (308) from the pipe.
  4. Discard the seals.
