Engine Coolant Fan Replacement

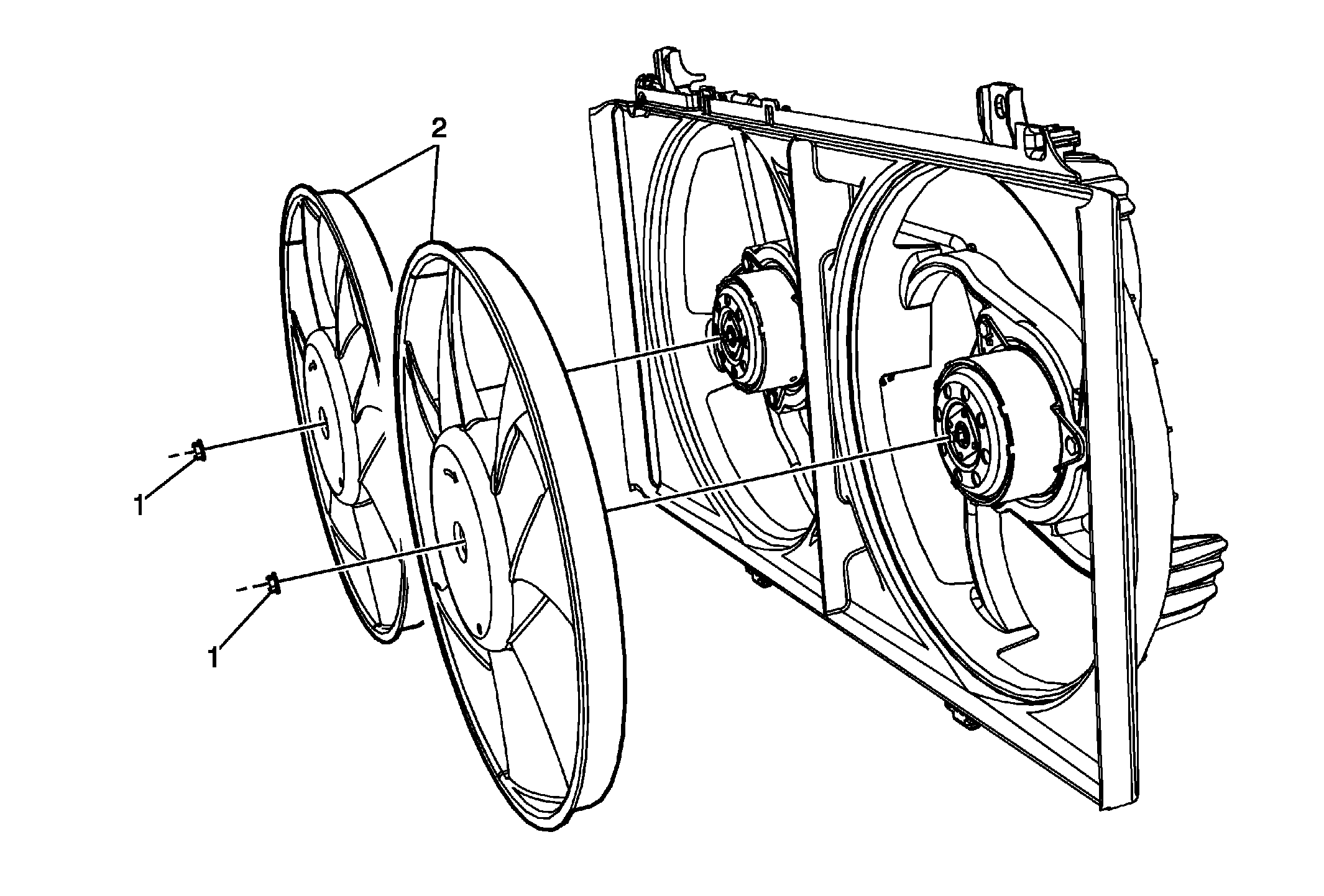

Fig 1: Engine Coolant Fan And Nuts
GM2203832Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedures
Remove engine coolant fan and shroud. Refer to Engine Coolant Fan Shroud Replacement (LS3, L99) Engine Coolant Fan Shroud Replacement (LFX) Engine Coolant Fan Shroud Replacement (LSA) Engine Coolant Fan Shroud Replacement (LS7 Rear) Engine Coolant Fan Shroud Replacement (LS7 with C67) Engine Coolant Fan Shroud Replacement (LS7 with C42)
1 Engine Coolant Fan Nuts (Qty 2)
CAUTION:

Refer to Fastener Caution .


Tighten
6 N.m (53 lb in)
2 Engine Coolant Fan
