Engine Coolant Fan Shroud Replacement (LS7 Rear)

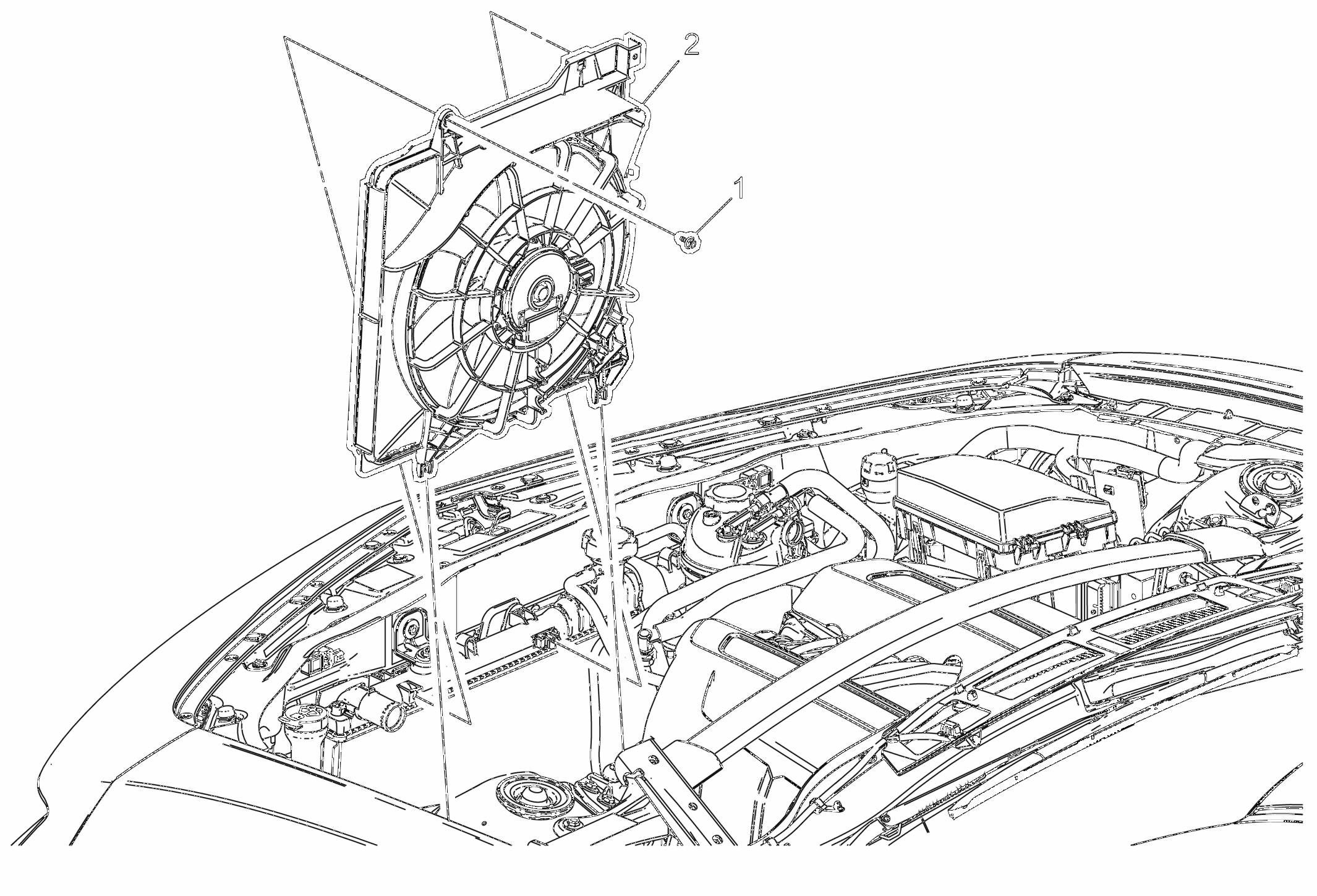

Fig 1: Rear Engine Coolant Fan Shroud (LS7 Rear)
GM3655003Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove air cleaner resonator and outlet duct. Refer to Air Cleaner Outlet Duct Replacement .
  2. Remove radiator inlet hose. Refer to Radiator Inlet Hose Replacement (LSA) Radiator Inlet Hose Replacement (LS7) .
  3. Disconnect the engine coolant fan motor connector.
  4. Unclip wiring harness from engine coolant fan shroud.
1 Engine Coolant Fan Shroud Bolt
CAUTION:

Refer to Fastener Caution .


Tighten
5 N.m (44 lb in)
2 Engine Coolant Fan Shroud

Procedures

  1. Transfer the engine coolant fan motors to the new engine coolant fan shroud. Refer to Engine Coolant Fan Motor Replacement (LS7 - Front) .
  2. Transfer all necessary components.
