Front Wheelhouse Liner Inner Front Extension Replacement (Right Side, LWE, LUW)

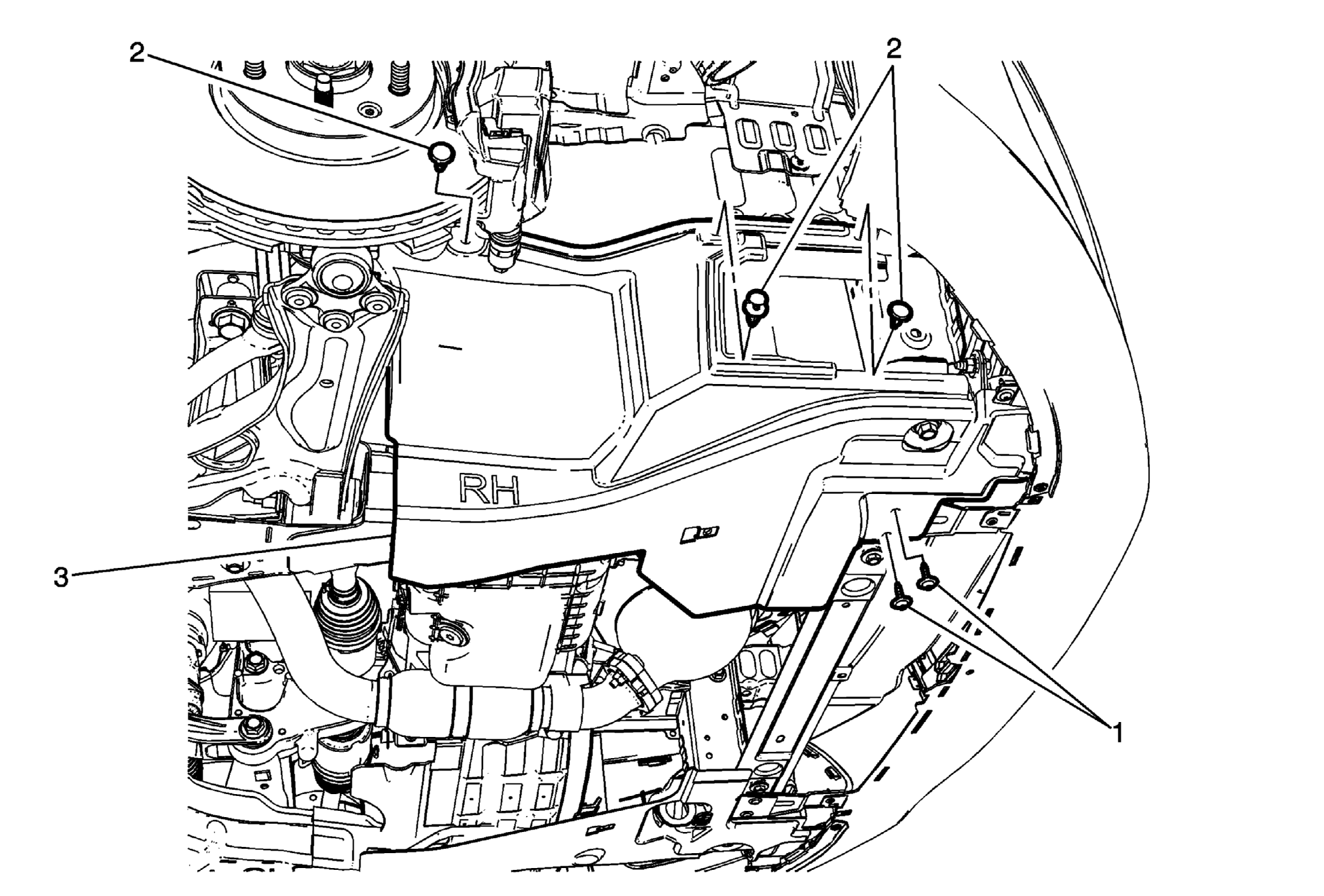

Fig 1: Front Wheelhouse Liner Inner Front Extension & Mounting Components (Right Side, LWE, LUW)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation . Remove the front fascia opening lower cover. Refer to Front Bumper Fascia Opening Lower Cover Replacement . Remove the front wheelhouse front liner. Refer to Front Wheelhouse Liner Replacement (Rear) , Front Wheelhouse Liner Replacement (Front) Remove the air cleaner intake duct. Refer to Air Cleaner Inlet Duct Replacement
1	Front Wheelhouse Liner Inner Front Extension Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 3 N.m (27 lb in)
2	Front Wheelhouse Liner Inner Front Extension Push-In Retainer (Qty: 3)
3	Front Wheelhouse Liner Inner Front Extension
