Front Bumper Fascia Opening Lower Cover Replacement
Front Bumper Fascia Opening Lower Cover Replacement

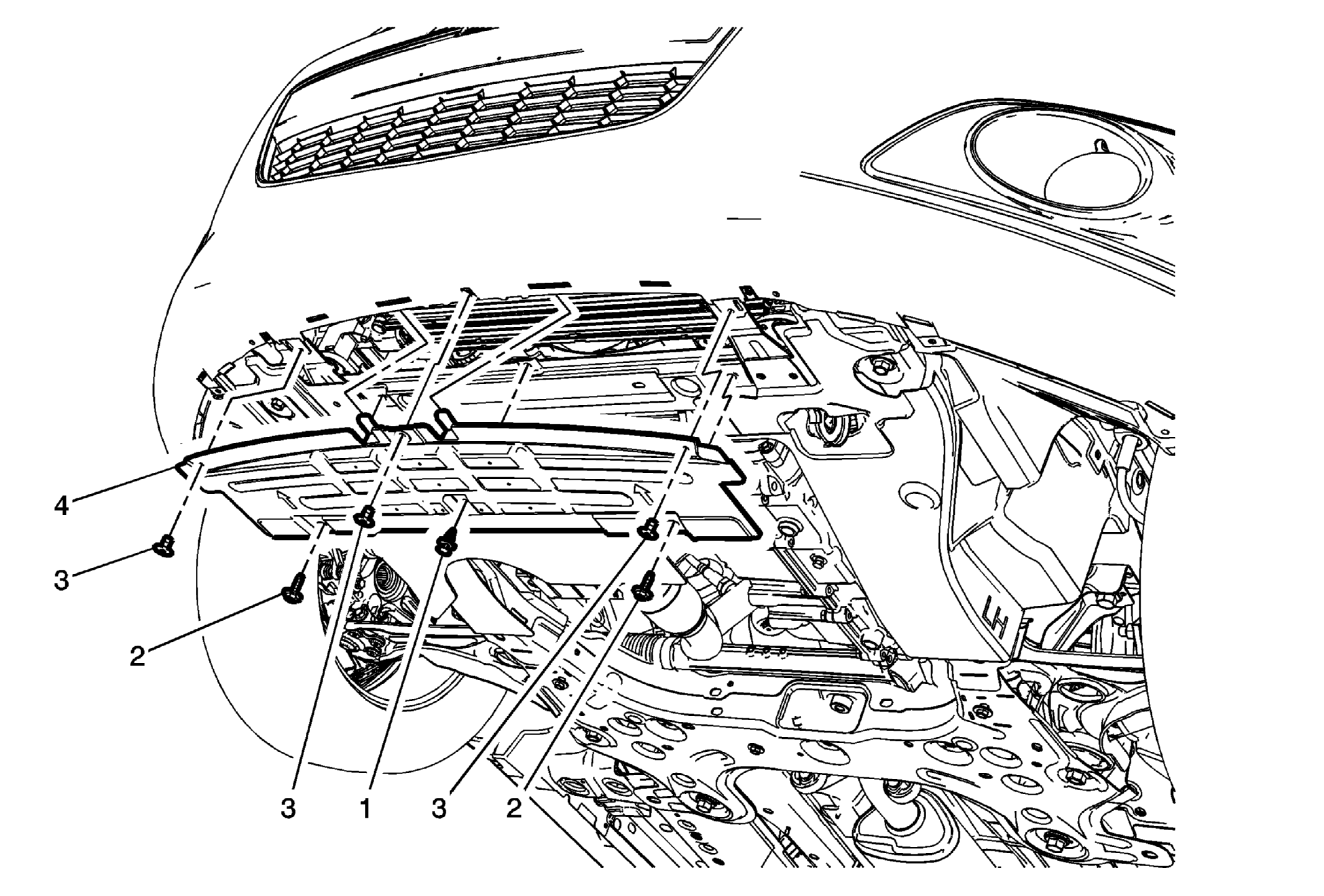

| Callout | Component Name |
|---|---|
| 1 | Front Bumper Fascia Opening Lower Cover Push-In Retainer |
| 2 | Front Bumper Fascia Opening Lower Cover Bolt (Qty: 2)
CAUTION:
Refer to Fastener Caution . Tighten 22 N.m (16 lb ft) |
| 3 | Front Bumper Fascia Opening Lower Cover Screw (Qty: 3) Tighten 2.5 N.m (22 lb in) |
| 4 | Front Bumper Fascia Opening Lower Cover |
