Front Wheelhouse Liner Replacement (Rear)
Front Wheelhouse Liner Replacement (Rear)

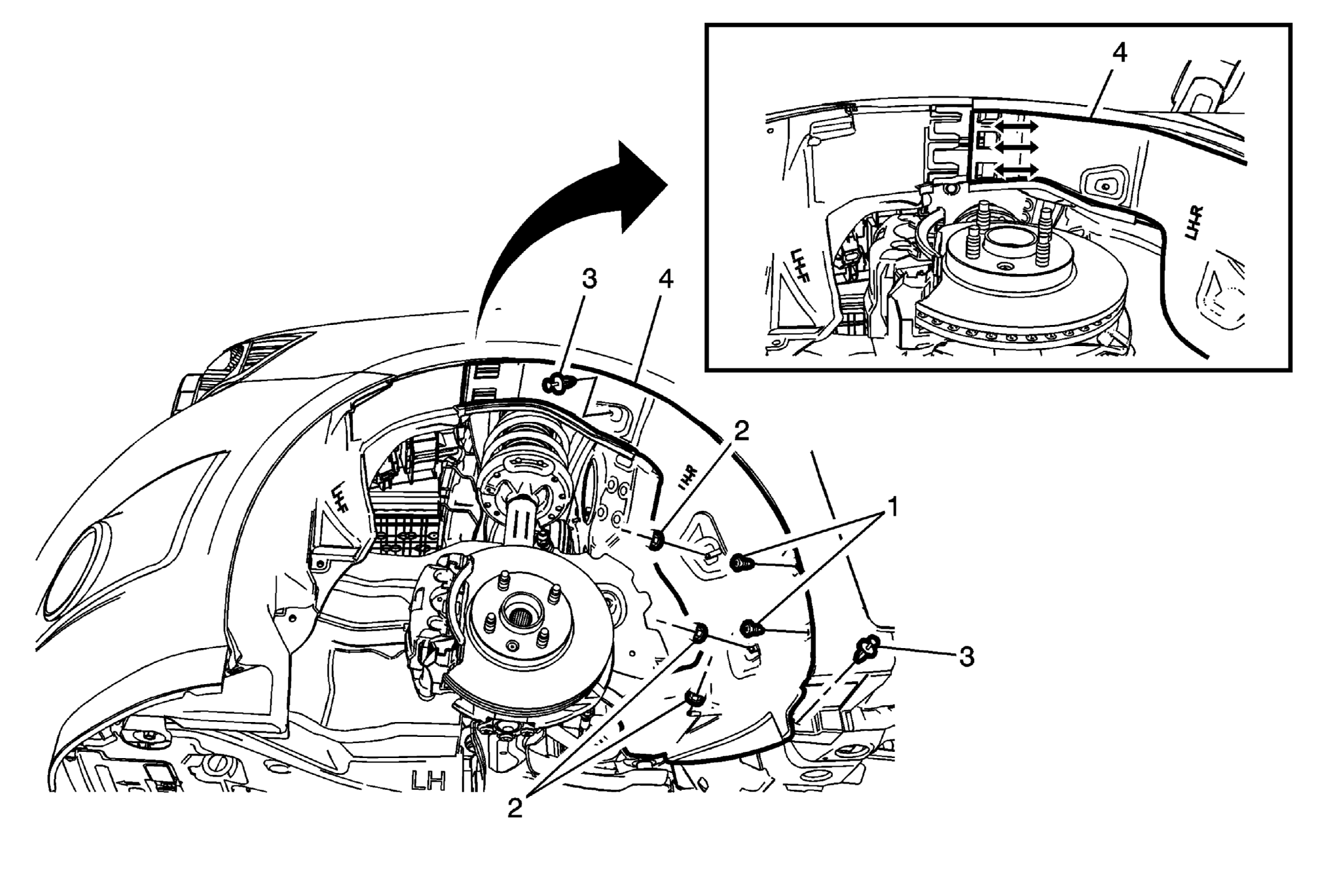

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation . |
|
| 1 | Front Wheelhouse Rear Liner Screw (Qty: 2)
CAUTION:
Refer to Fastener Caution . Tighten 3 N.m (27 lb in) |
| 2 | Front Wheelhouse Rear Liner Nut (Qty: 3) Tighten 3 N.m (27 lb in) |
| 3 | Front Wheelhouse Rear Liner Push-In Retainer (Qty: 2) |
| 4 | Front Wheelhouse Rear Liner Procedure Disengage the upper interlocking retainers. |
