Front Wheelhouse Liner Replacement (Front)
Front Wheelhouse Liner Replacement (Front)

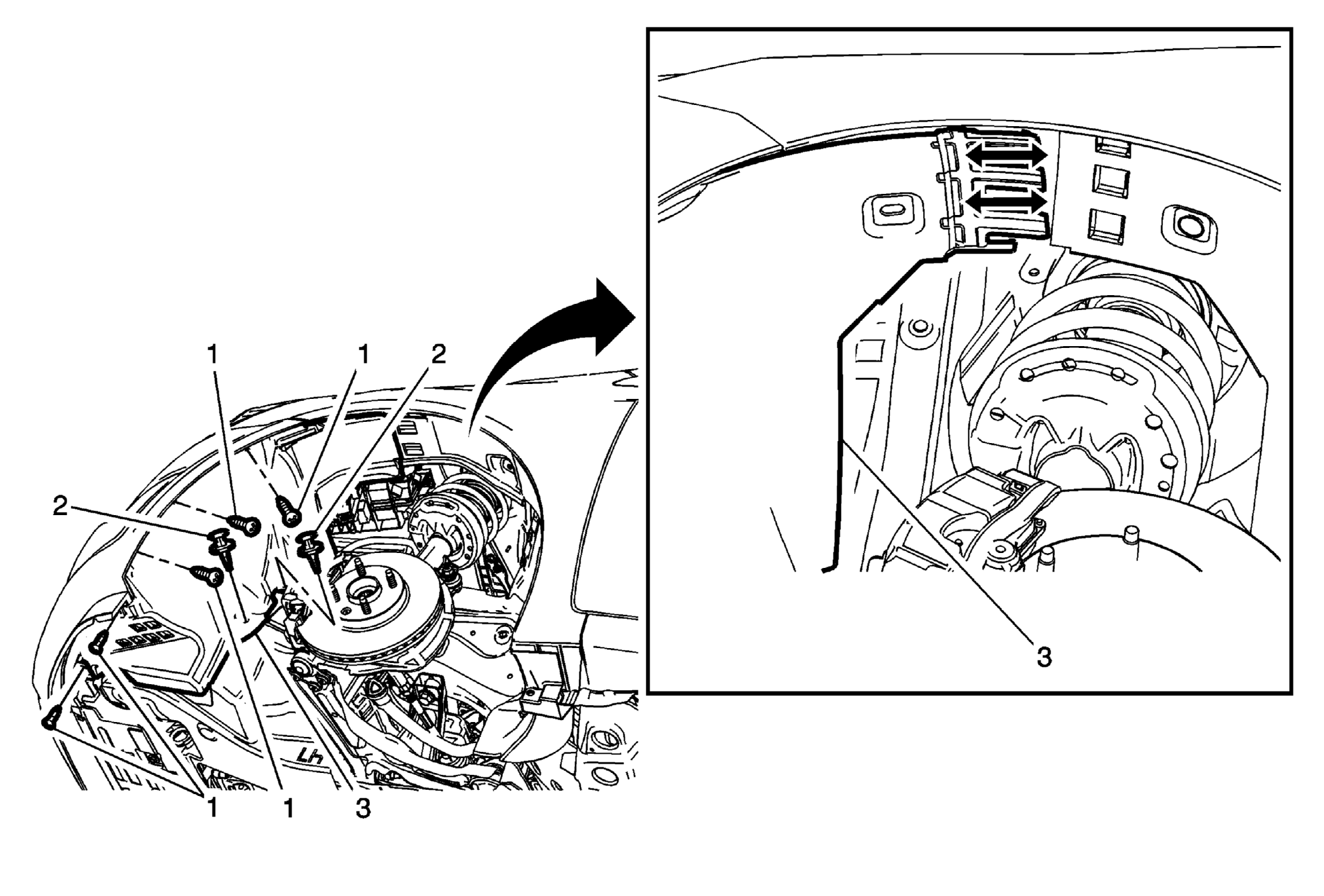

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation . |
|
| 1 | Front Wheelhouse Liner Screw - Front (Qty: 5)
CAUTION:
Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in) |
| 2 | Front Wheelhouse Liner Push-In Retainer - Front (Qty: 2) |
| 3 | Front Wheelhouse Liner - Front Procedure Disengage the upper interlocking retainers. |
