Quarter Window Garnish Molding Replacement

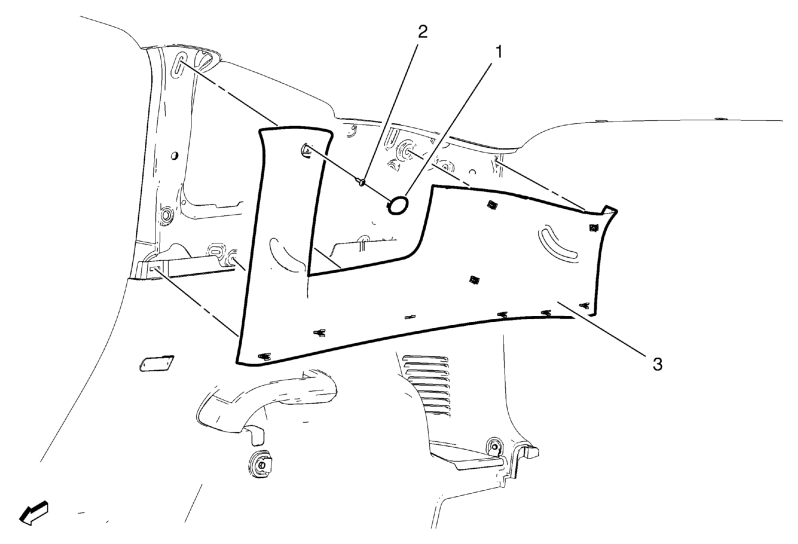

Fig 1: Quarter Window Garnish Molding

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the rear compartment floor stowage compartment. Refer to Rear Compartment Floor Stowage Compartment Replacement . Remove the rear number 2 seat. Refer to 3rd Row Seat Replacement Release the rear seat shoulder belt. Refer to Shoulder Belt Replacement - Rear . Release the rear seat number 2 shoulder belt. Refer to Rear Seat Number 2 Shoulder Belt Replacement .
1	Quarter Window Garnish Molding Bolt Cap
2	Quarter Window Garnish Molding Bolt CAUTION: Refer to Fastener Caution .
3	Quarter Window Garnish Molding
