Rear Compartment Floor Stowage Compartment Replacement

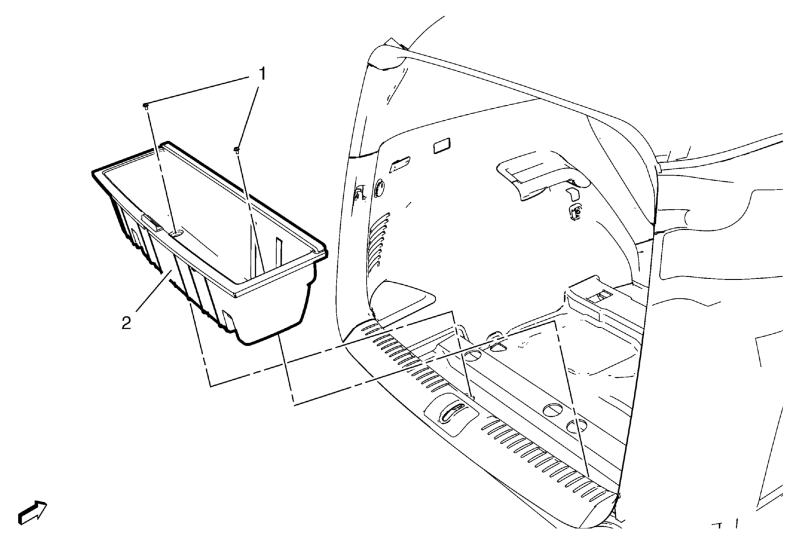

Fig 1: Rear Compartment Floor Stowage Compartment

Courtesy of GENERAL MOTORS COMPANY

Rear Compartment Floor Stowage Compartment Replacement

Callout	Component Name
1	Rear Compartment Floor Stowage Compartment Fastener (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten  8 N.m (71 lb in)
2	Rear Compartment Floor Stowage Compartment
