Rear Seat Number 2 Shoulder Belt Replacement
Rear Seat Number 2 Shoulder Belt Replacement

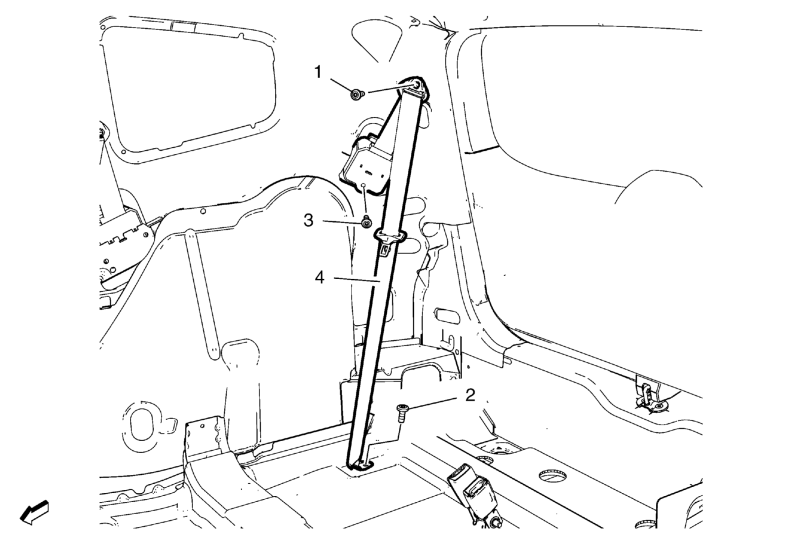

| Callout | Component Name |
|---|---|
|
WARNING:
Refer to SIR Warning in the Preface section.
WARNING:
In order to prevent accidental deployment and the risk of personal injury, do not dispose of an undeployed inflatable restraint seat belt pretensioner as normal shop waste. Undeployed seat belt pretensioners contain substances that could cause severe illness or personal injury if their sealed containers are damaged during disposal. Use the following deployment procedures to safely dispose of an undeployed seat belt pretensioner. Failure to observe the following disposal methods may be a violation of federal, state, or local laws.
WARNING:
Preliminary Procedures Remove the body side trim panel. Refer to Body Side Trim Panel Replacement - Left Side
, and/or Body Side Trim Panel Replacement - Right Side
.Refer to SIR Seatbelt Pretensioner Handling Warning in the Preface section. |
|
| 1 | Rear Seat Number 2 Shoulder Belt Guide Bolt
CAUTION:
Refer to Fastener Caution . Tighten 45 N.m (33 lb ft) |
| 2 | Rear Seat Number 2 Shoulder Belt Anchor Plate Bolt Tighten 45 N.m (33 lb ft) |
| 3 | Rear Seat Number 2 Shoulder Belt Retractor Bolt Tighten 45 N.m (33 lb ft) |
| 4 | Rear Seat Number 2 Shoulder Belt |
