3rd Row Seat Replacement
3rd Row Seat Replacement

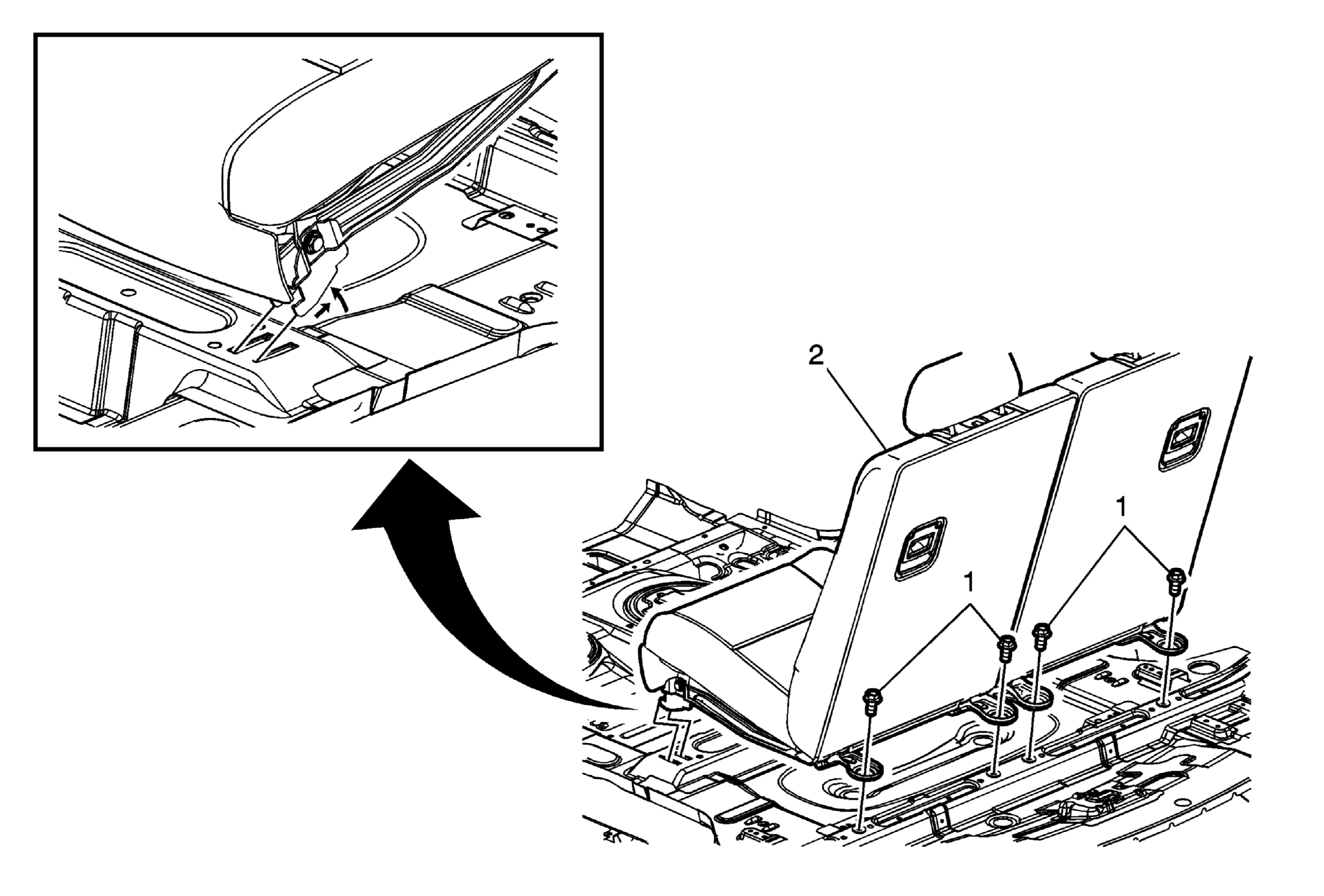

| Callout | Component Name |
|---|---|
| Preliminary Procedures Remove the rear compartment floor stowage compartment. Refer to Rear Compartment Floor Stowage Compartment Replacement . |
|
| 1 | Rear Seat Number 2 Fastener (Qty: 2)
CAUTION:
Refer to Fastener Caution . Tighten 45 N.m (33 lb ft) |
| 2 | Rear Seat Number 2 Assembly (Qty: 2) Procedure Tilting the seat forward, and then lifting and pulling the seat rearwards to disengage the 4 front foot hooks. TIP: Fold the seat down and remove through the rear of the vehicle. Each seat can be removed separately. |
