Tail Lamp Bulb Replacement (Sedan)
WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

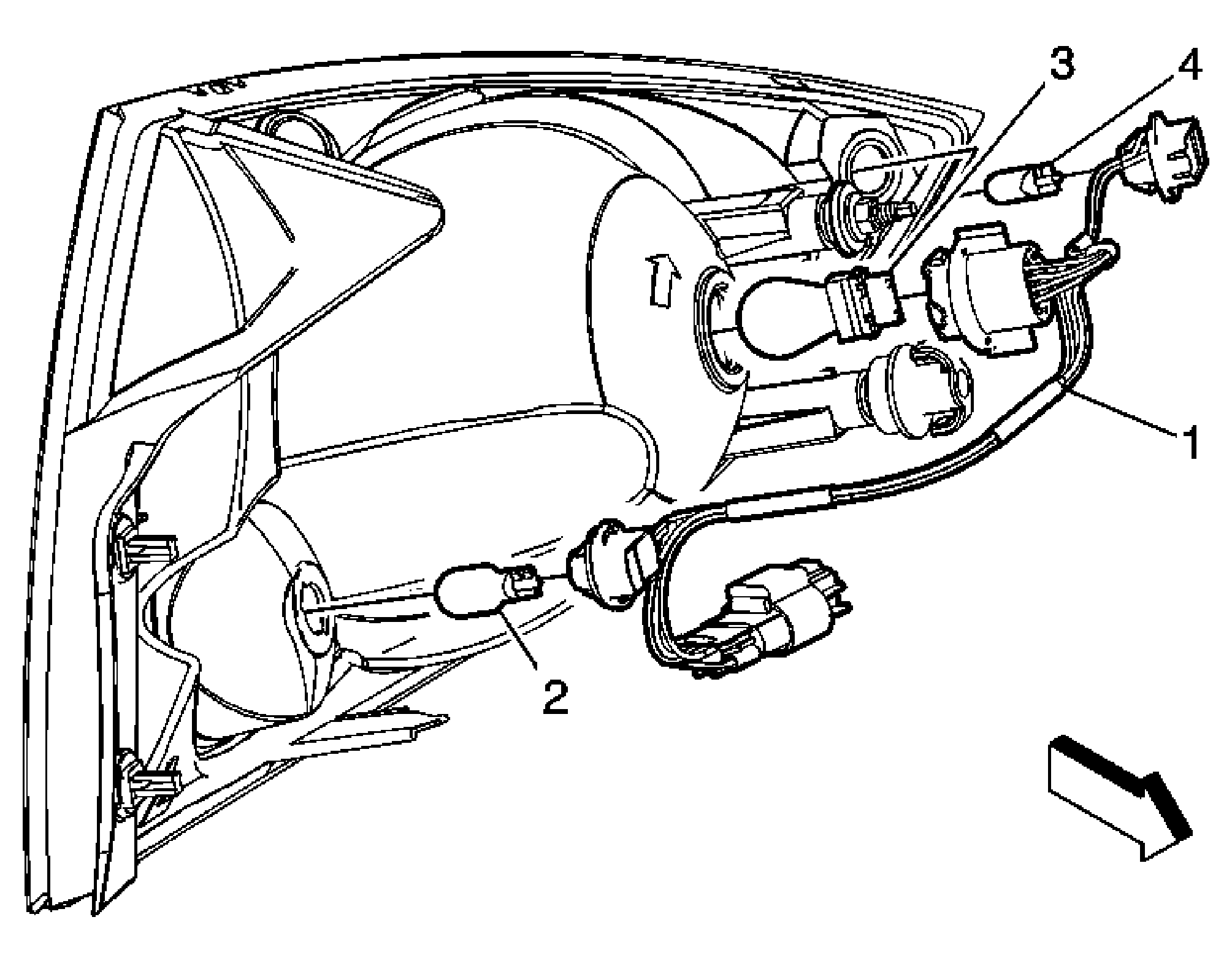

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the rear tail lamp. Refer to Tail Lamp Replacement (Chevrolet Coupe) or Tail Lamp Replacement (Chevrolet, Pontiac Sedan) or Tail Lamp Replacement (Chevrolet European) . |
|
| 1 | Stop, Tail and Turn Signal Bulb Socket Harness |
| 2 | Back Up Lamp Bulb Tip: Pull the bulb straight from the socket in order to remove. |
| 3 | Stop, Tail and Turn Signal Bulb Tip: Pull the bulb straight from the socket in order to remove. |
| 4 | Rear Side Marker Lamp Bulb Tip: Pull the bulb straight from the socket in order to remove. |
