Rear Turn Signal Lamp Bulb Replacement (Chevrolet Coupe)
WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

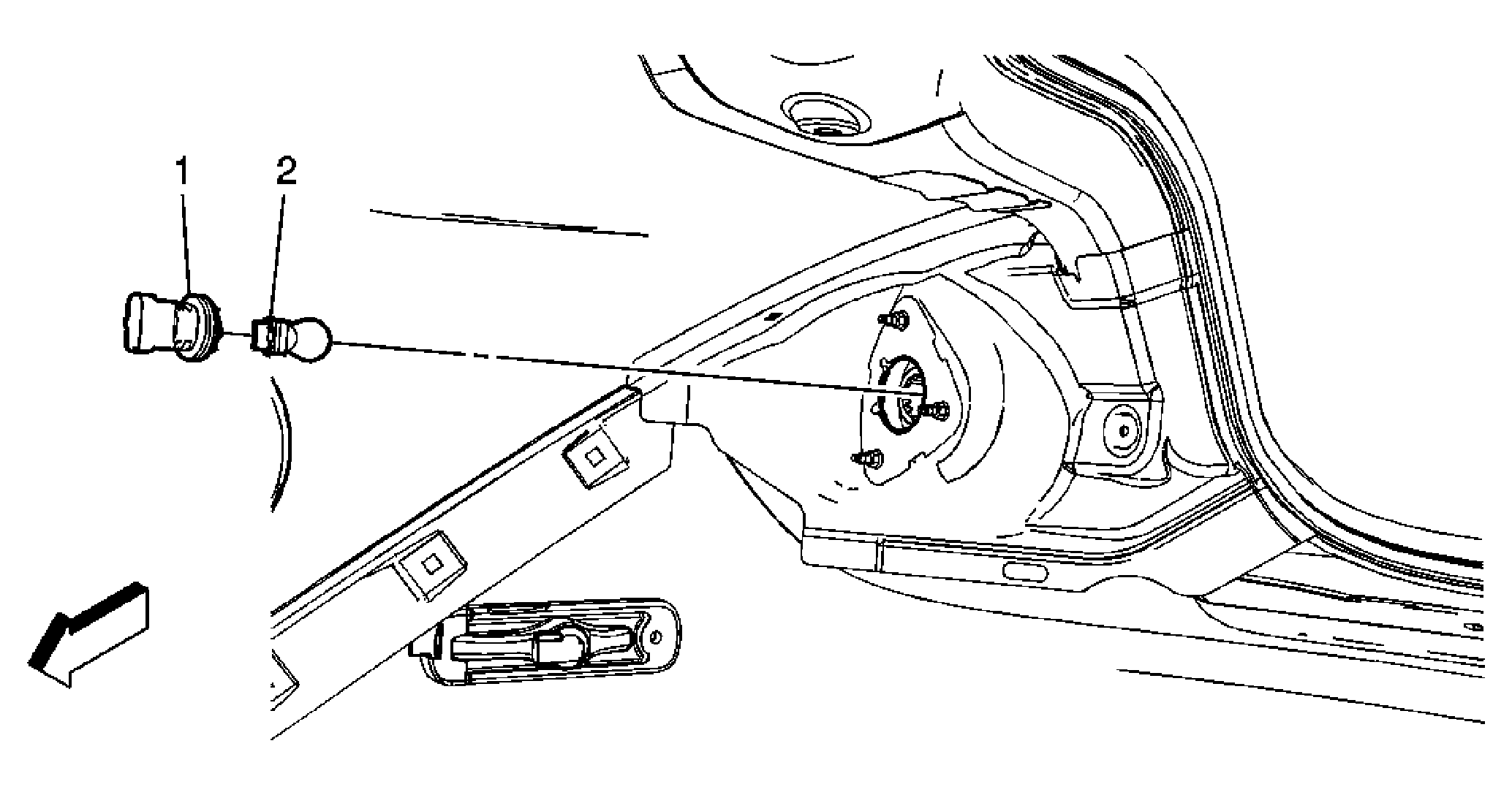

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the tail lamp assembly. Refer to Tail Lamp Replacement (Chevrolet Coupe) or Tail Lamp Replacement (Chevrolet, Pontiac Sedan) or Tail Lamp Replacement (Chevrolet European) . |
|
| 1 | Wire Harness Connector Tip: Rotate counter-clockwise and remove from the tail lamp housing. |
| 2 | Tail Stop / Turn Signal Bulb
WARNING:
Refer to Halogen Bulb Warning
. Tip: Remove the bulb from the wire harness connector. |
