Rear Side Marker Lamp Bulb Replacement (Chevrolet Sedan)

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

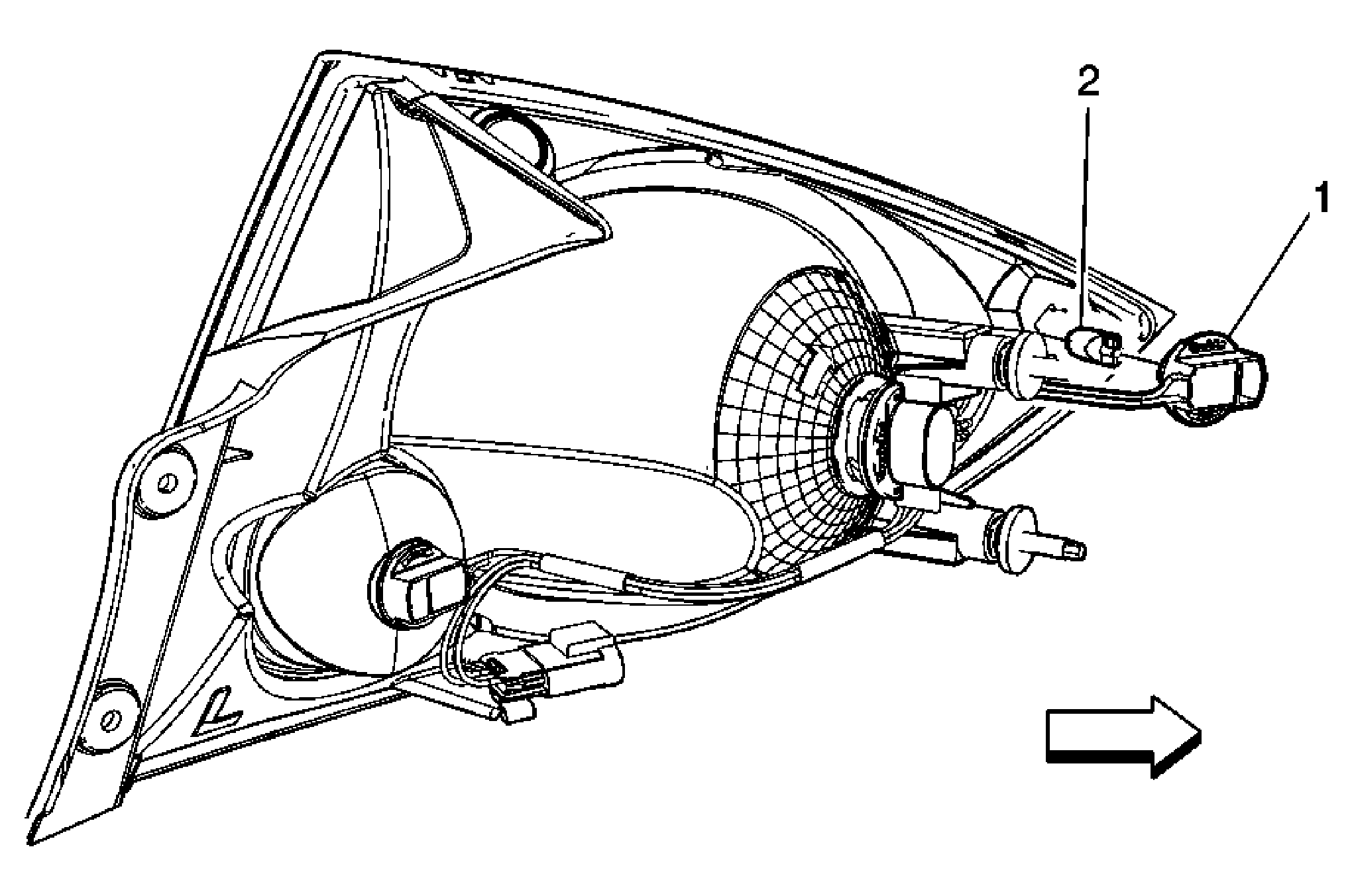

Fig 1: Identifying Rear Side Marker Lamp Bulb (Chevrolet Sedan)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the rear tail lamp assembly. Refer to Tail Lamp Replacement (Chevrolet Coupe) or Tail Lamp Replacement (Chevrolet, Pontiac Sedan) or Tail Lamp Replacement (Chevrolet European) .
1	Rear Side Marker Lamp Bulb Socket Tip: Twist and remove the bulb socket from the tail lamp assembly.
2	Rear Side Marker Lamp Bulb WARNING: Refer to Halogen Bulb Warning . Tip: Remove the rear side marker lamp bulb.
