Backup Lamp Bulb Replacement (Chevrolet, Pontiac Sedan)
WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

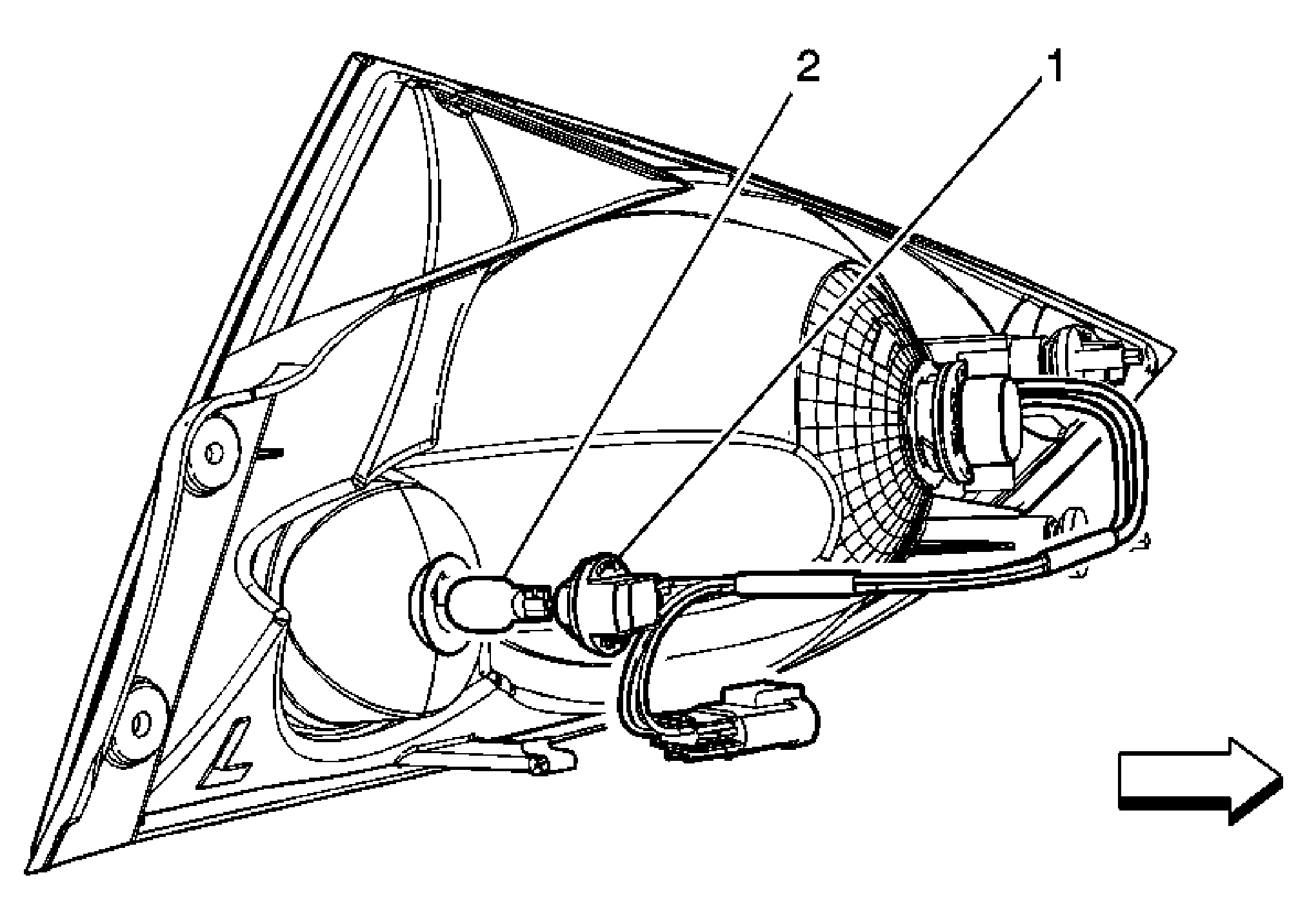

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the rear tail lamp assembly. Refer to Tail Lamp Replacement (Chevrolet Coupe) or Tail Lamp Replacement (Chevrolet, Pontiac Sedan) or Tail Lamp Replacement (Chevrolet European) . |
|
| 1 | Back Up Lamp Socket Tip: Twist and remove the bulb socket from the tail lamp assembly. |
| 2 | Back Up Lamp Bulb
WARNING:
Refer to Halogen Bulb Warning
. Tip: Remove the back up lamp bulb. |
