Rear Seat Belt Replacement

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

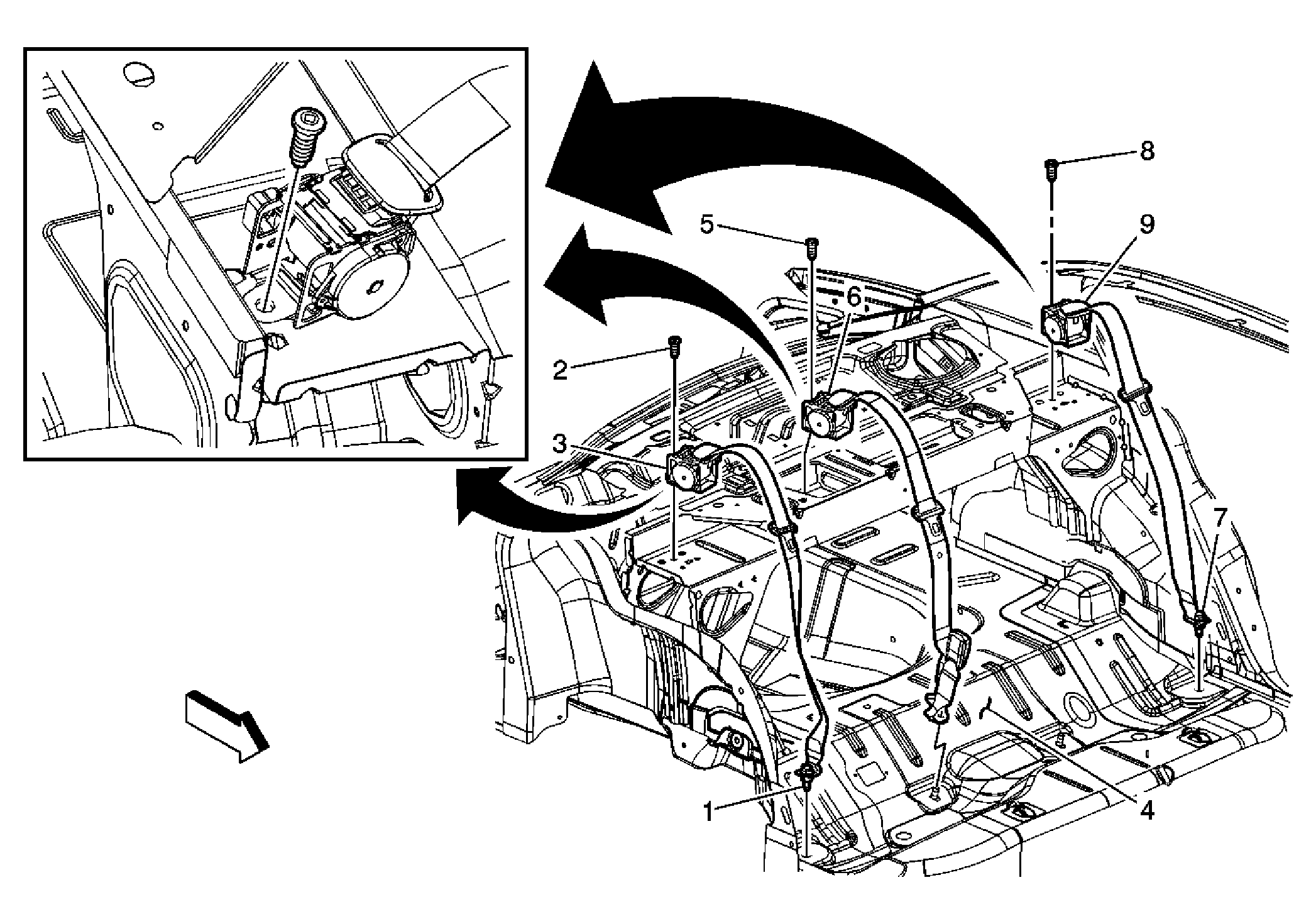

Fig 1: View of Rear Seat Belt

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the rear seat cushion. Refer to Rear Seat Cushion Replacement . Remove the rear seat back. Refer to Rear Split Folding Seat Back Replacement . Remove the rear window shelf trim panel. Refer to Rear Window Shelf Trim Panel Replacement .
1	Rear Seat Belt Anchor Bolt - Right CAUTION: Refer to Fastener Caution . Tighten: 45 N.m (33 lb ft)
2	Rear Seat Belt Retractor Bolt - Right Tighten: 45 N.m (33 lb ft)
3	Rear Seat Belt Retractor Assembly - Right
4	Rear Seat Belt Anchor Bolt - Center Tighten: 45 N.m (33 lb ft)
5	Rear Seat Belt Retractor Bolt - Center Tighten: 45 N.m (33 lb ft)
6	Rear Seat Belt Retractor Assembly - Center
7	Rear Seat Belt Anchor Bolt - Left Tighten: 45 N.m (33 lb ft)
8	Rear Seat Belt Retractor Bolt - Left Tighten: 45 N.m (33 lb ft)
9	Rear Seat Belt Retractor Assembly - Left
