Rear Split Folding Seat Back Replacement

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

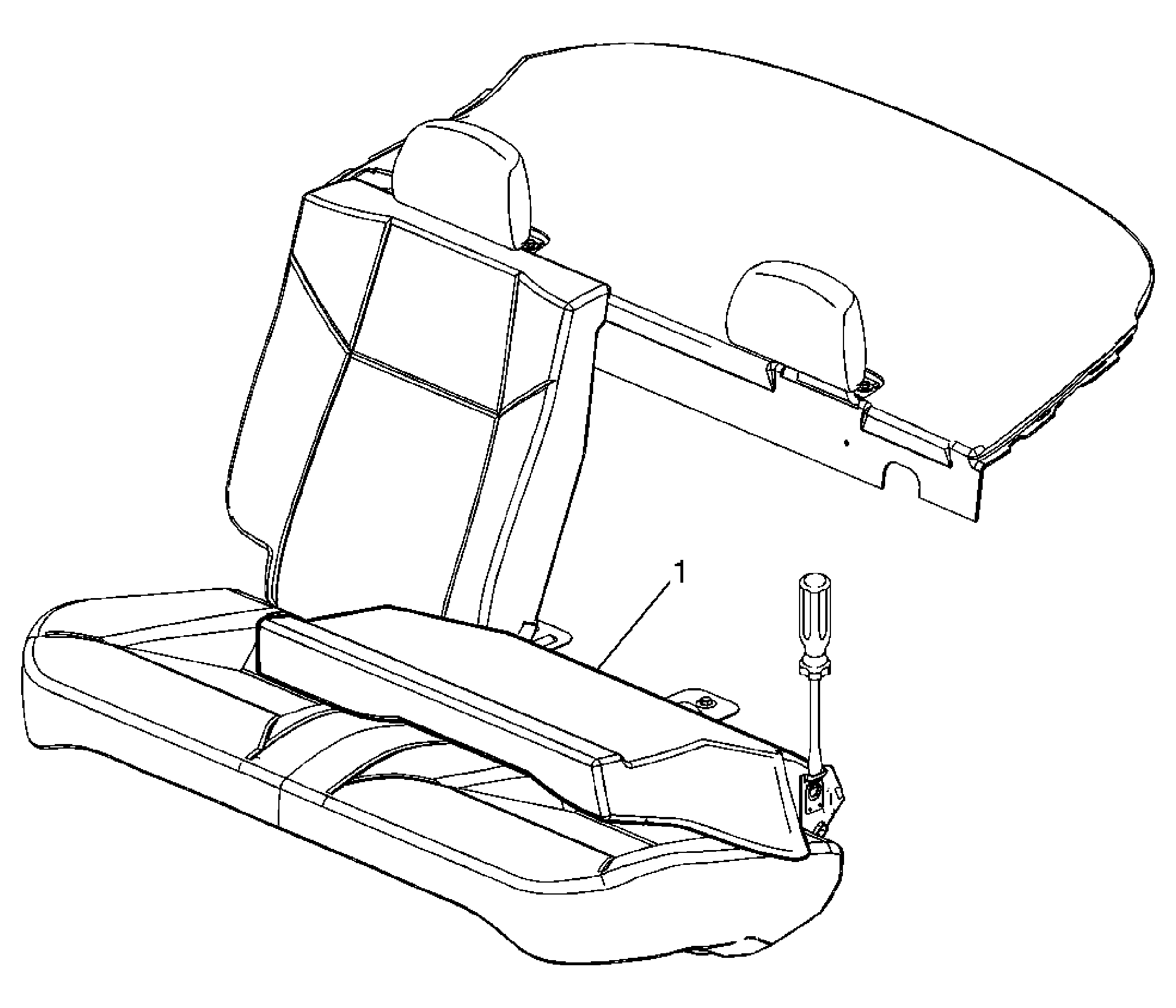

Fig 1: Rear Split Folding Seat Back

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Split Folding Seat Back Procedure Pull the release handles for the rear split folding seat backs located in the rear compartment. Fold down the rear seat. With a flat-bladed tool release the side retainer to disengage the rear seat. Lift up the seat and remove.
