Driver or Passenger Seat Recliner Handle Replacement

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

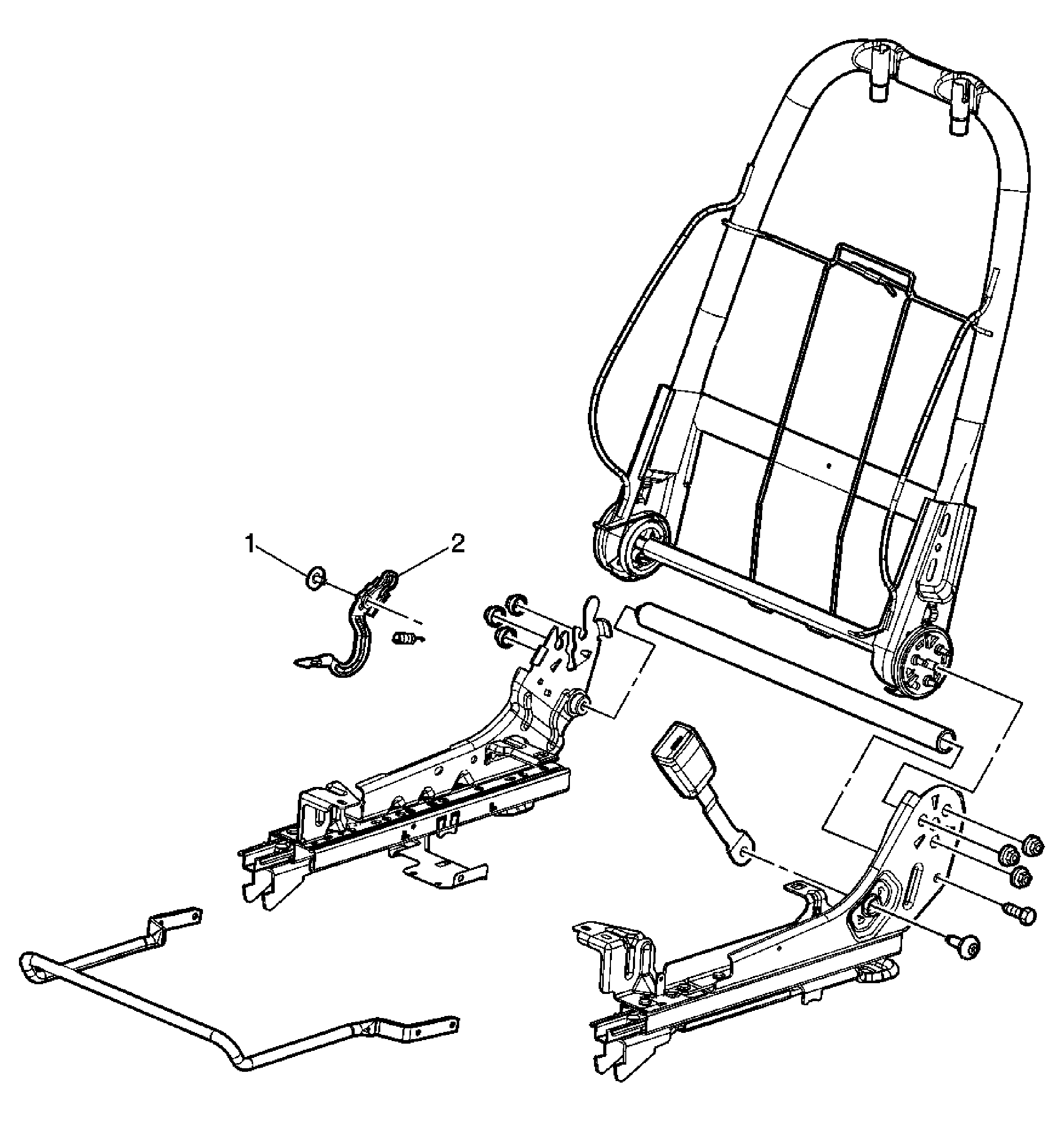

Fig 1: Driver or Passenger Seat Recliner Handle
GM1551205Courtesy of GENERAL MOTORS CORP.
Callout Component Name

Preliminary Procedures

  1. Remove the front seat. Refer to Front Seat Replacement - Bucket .
  2. Remove the cushion frame. Refer to Driver or Passenger Seat Cushion Frame Replacement .
  3. Remove the seat back cover and pad assembly. Refer to Driver or Passenger Seat Back Cushion Cover and Pad Replacement .
1 Recliner Handle Screw
CAUTION: Refer to Fastener Caution .

Tighten:  20 N.m (14 lb ft)
2 Seat Back Recliner Handle Assembly
Tip:  Remove the recliner handle return spring.
