Driver or Passenger Seat Back Cushion Cover and Pad Replacement

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

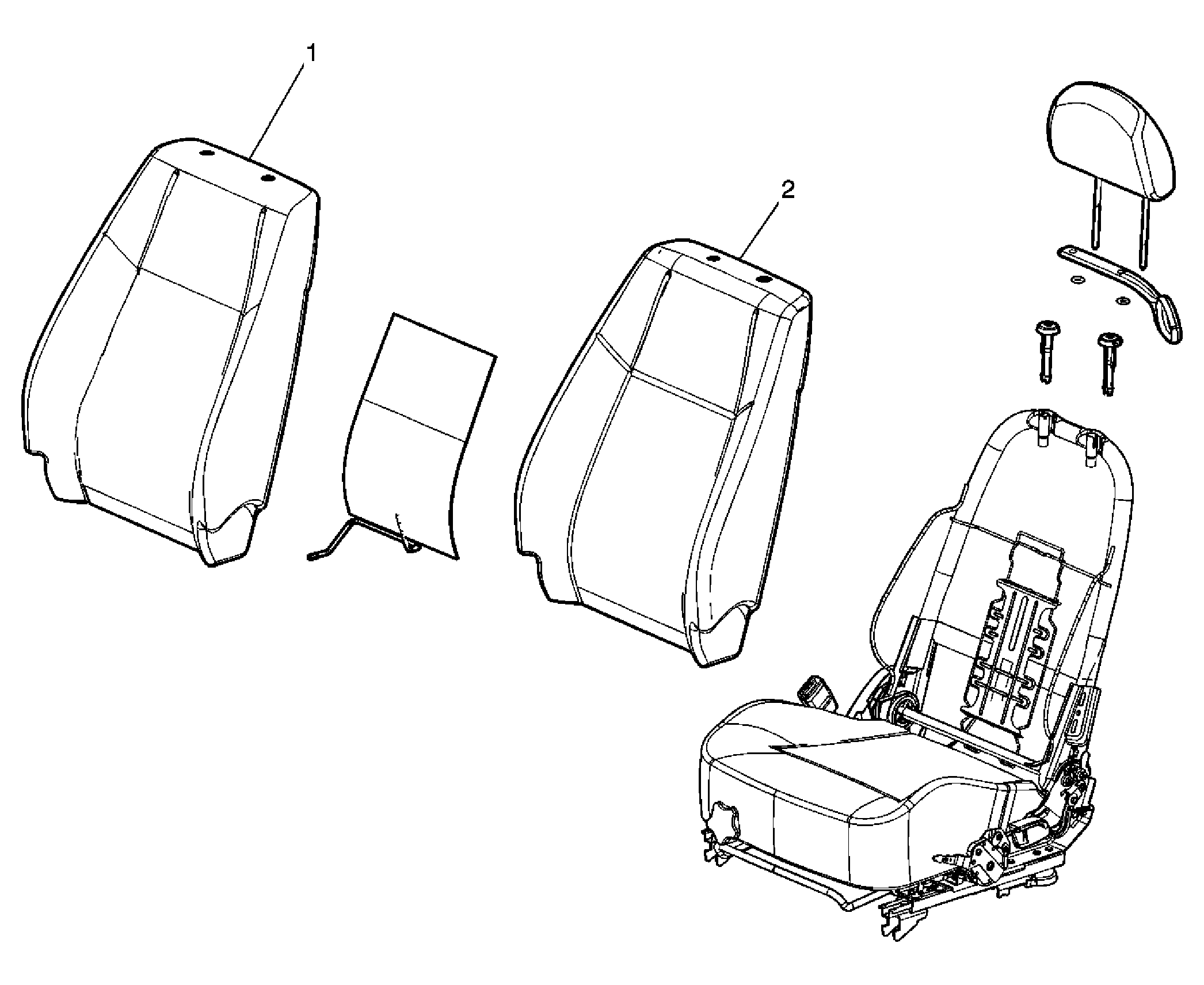

Fig 1: Driver or Passenger Seat Back Cushion Cover and Pad

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the front seat. Refer to Front Seat Replacement - Bucket . Remove the front seat head restraint. Refer to Driver or Passenger Seat Head Restraint Replacement . Remove the front seat head restraint guides. Refer to Front Seat Head Restraint Guide Replacement . Remove the front seat cushion outer trim panel. Refer to Front Seat Cushion Outer Trim Panel Replacement . Remove the front seat cushion inner trim panel. Refer to Seat Cushion Inner Trim Panel Replacement .
1	Seat Back Cushion Cover Procedure Disconnect the seat back cover j-channel. Disconnect the seat back heater electrical connector, if equipped. Remove the seat back cover and pad as an assembly from the seat back frame. Separate the seat back cover from the seat back pad.
2	Seat Back Cushion Pad

Callout

Component Name

Preliminary Procedures

Remove the front seat. Refer to Front Seat Replacement - Bucket .
Remove the front seat head restraint. Refer to Driver or Passenger Seat Head Restraint Replacement .
Remove the front seat head restraint guides. Refer to Front Seat Head Restraint Guide Replacement .
Remove the front seat cushion outer trim panel. Refer to Front Seat Cushion Outer Trim Panel Replacement .
Remove the front seat cushion inner trim panel. Refer to Seat Cushion Inner Trim Panel Replacement .

Seat Back Cushion Cover

Procedure

Disconnect the seat back cover j-channel.
Disconnect the seat back heater electrical connector, if equipped.
Remove the seat back cover and pad as an assembly from the seat back frame.
Separate the seat back cover from the seat back pad.

Seat Back Cushion Pad
