Driver or Passenger Seat Back Cushion Frame Replacement

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

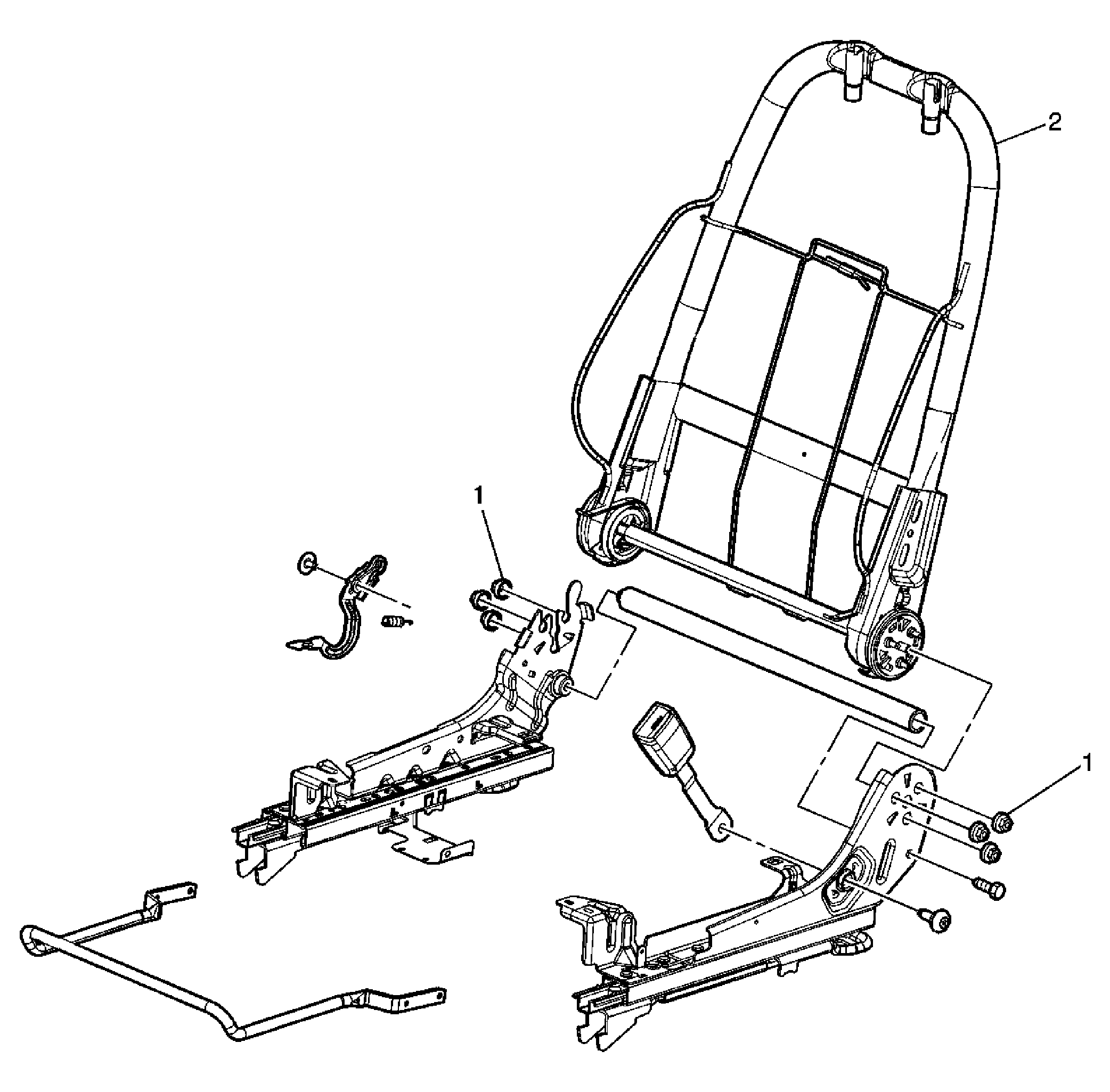

Fig 1: Driver or Passenger Seat Back Cushion Frame

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the front seat. Refer to Front Seat Replacement - Bucket . Remove the cushion frame. Refer to Driver or Passenger Seat Cushion Frame Replacement . Remove the seat back cover and pad assembly. Refer to Driver or Passenger Seat Back Cushion Cover and Pad Replacement . Adjust the seat back position until the notches in the seat back line up with the springs. Slide the spring onto the notches. Ensure that the springs are completely engaged into the notches. Adjust the seat back forward to allow the springs to be lifted from the impact tube.
1	Seat Back Frame Nut (Qty: 6) CAUTION: Refer to Fastener Caution . Tighten: 13 N.m (115 lb in)
2	Seat Back Frame Assembly Tip: Separate the seat adjuster tracks.

Callout

Component Name

Preliminary Procedures

Remove the front seat. Refer to Front Seat Replacement - Bucket .
Remove the cushion frame. Refer to Driver or Passenger Seat Cushion Frame Replacement .
Remove the seat back cover and pad assembly. Refer to Driver or Passenger Seat Back Cushion Cover and Pad Replacement .
Adjust the seat back position until the notches in the seat back line up with the springs.
Slide the spring onto the notches. Ensure that the springs are completely engaged into the notches.
Adjust the seat back forward to allow the springs to be lifted from the impact tube.

Seat Back Frame Nut (Qty: 6)

CAUTION: Refer to Fastener Caution .

Tighten: 13 N.m (115 lb in)

Seat Back Frame Assembly
Tip: Separate the seat adjuster tracks.
