Rear Door Energy Absorber Pad Replacement

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

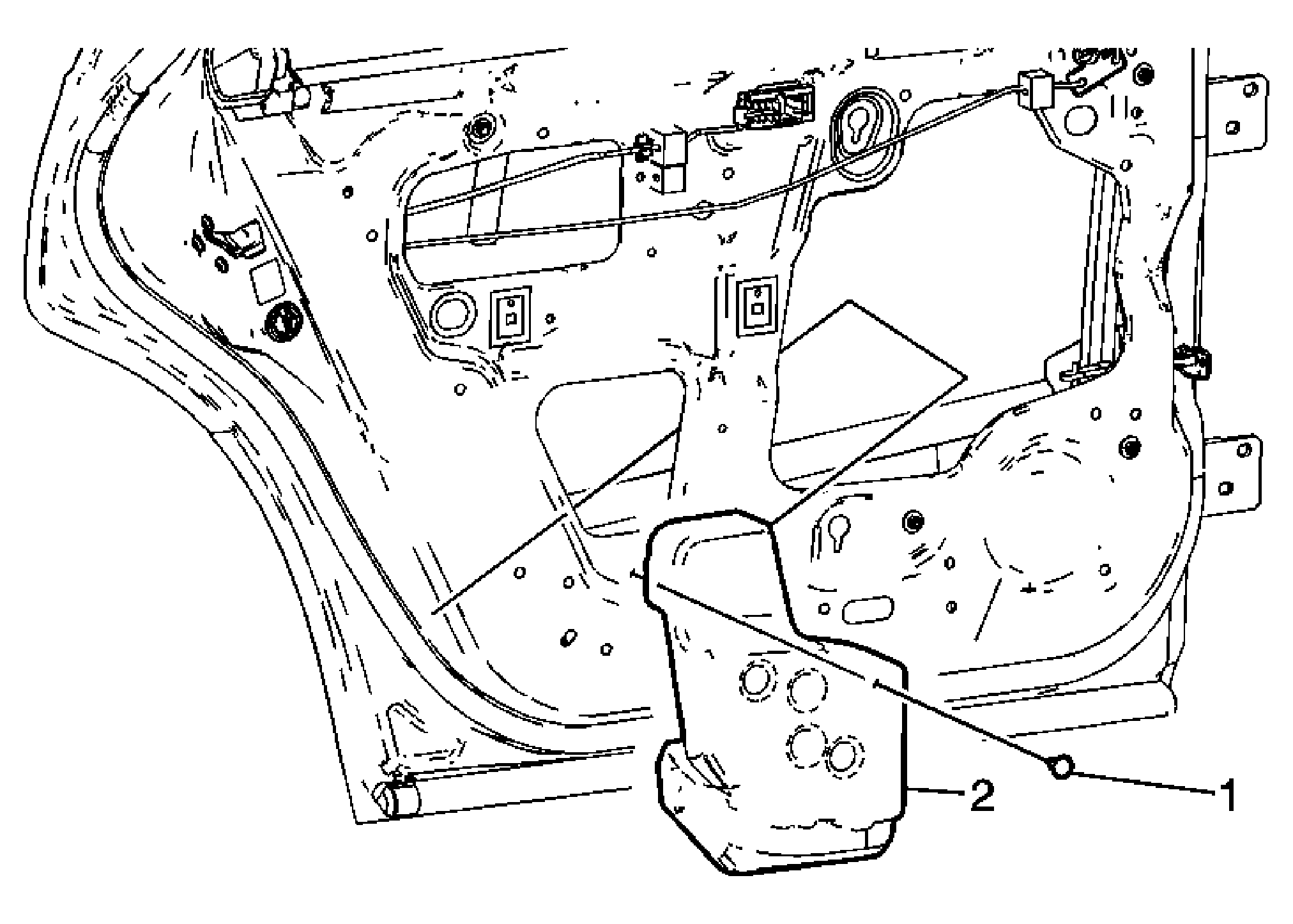

Fig 1: Energy Absorber Pad Replacement - Rear Door

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Place the window in the full up position. Remove the rear door trim panel. Refer to Rear Side Door Trim Panel Replacement . Remove the rear door water deflector. Refer to Rear Side Door Water Deflector Replacement . Remove the rear door window regulator. Refer to Rear Side Door Window Regulator Replacement (Manual Sedan) or Rear Side Door Window Regulator Replacement (Power Sedan) .
1	Retainer, Rear Door Energy Absorber Tip: Remove the push-in retainer from the door.
2	Energy Absorber, Rear Door

Callout

Component Name

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedures

Place the window in the full up position.
Remove the rear door trim panel. Refer to Rear Side Door Trim Panel Replacement .
Remove the rear door water deflector. Refer to Rear Side Door Water Deflector Replacement .
Remove the rear door window regulator. Refer to Rear Side Door Window Regulator Replacement (Manual Sedan) or Rear Side Door Window Regulator Replacement (Power Sedan) .

Retainer, Rear Door Energy Absorber
Tip: Remove the push-in retainer from the door.

Energy Absorber, Rear Door
